ipdcGui.c File Reference
#include <stdio.h>#include <stdlib.h>#include <string.h>#include <strings.h>#include <netinet/in.h>#include <gtk/gtk.h>#include <glib.h>#include <cairo/cairo.h>#include <glib/gprintf.h>#include <ctype.h>#include "ipdcGui.h"#include "global.h"#include "new_pmu_or_pdc.h"#include "recreate.h"#include "connections.h"

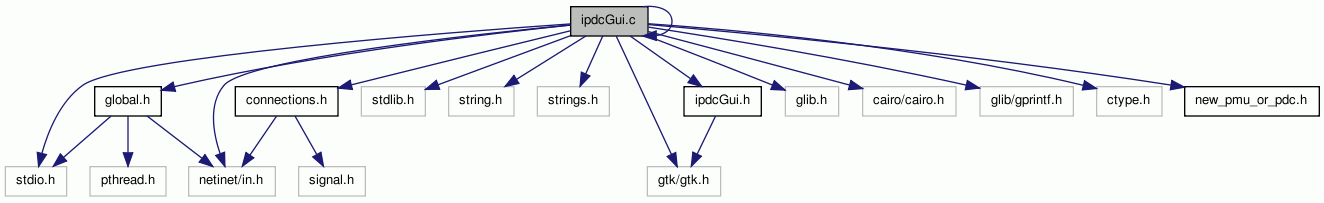

Include dependency graph for ipdcGui.c:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Functions | |
| int | isNumber (char *s) |
| void | destroy (GtkWidget *widget, gpointer udata) |
| void | display_pdc_detail (GtkButton *widget, gpointer udata) |
| void | about_ipdc (GtkButton *widget, gpointer udata) |
| void | ipdc_help (GtkButton *but, gpointer udata) |
| void | validation_result (char *msg) |
| void | ipdc_colors () |
| void | pdc_details (GtkButton *button, gpointer udata) |
| int | validation_pdc_detail (GtkButton *button, gpointer udata) |
| int | add_pmu_validation (GtkButton *but, gpointer udata) |
| int | cmd_or_remove_pmu_validation (GtkButton *but, gpointer udata) |
| int | new_pdc_validation (GtkButton *but, gpointer udata) |
| int | remove_pdc_validation (GtkButton *but, gpointer udata) |
| void | fill_pdc_details () |
| void | add_pmu (GtkButton *but, gpointer udata) |
| void | cmd_or_remove_pmu (GtkButton *but, gpointer udata) |
| void | add_new_pdc (GtkButton *but, gpointer udata) |
| void | remove_pdc (GtkButton *but, gpointer udata) |
| void | connection_table (GtkButton *but, gpointer udata) |
Function Documentation
| void about_ipdc | ( | GtkButton * | widget, | |
| gpointer | udata | |||
| ) |
Definition at line 284 of file ipdcGui.c.
Referenced by main().
00285 { 00286 /* local variables */ 00287 GtkWidget *about_dialog; 00288 const gchar *auth[] = {"\nDr. A.M. Kulkarni <http://www.ee.iitb.ac.in/wiki/faculty/anil>", "\nProf. S.U. Ghumbre <shashi.comp@coep.ac.in>", "\nProf. V.Z. Attar <vahida.comp@coep.ac.in>", "\nNitesh Pandit <panditnitesh@gmail.com>", "\nKedar V. Khandeparkar <kedar.khandeparkar@gmail.com>", NULL}; 00289 00290 /* Create a about dialog for displaying about the iPDC. */ 00291 about_dialog = gtk_about_dialog_new (); 00292 00293 /* Define the diffrent properties of about_dialog. */ 00294 gtk_about_dialog_set_program_name ((GtkAboutDialog *)about_dialog, "\t\t\t\tiPDC 1.0\t\t\t\t"); 00295 gtk_about_dialog_set_comments ((GtkAboutDialog *)about_dialog, "A Phasor Data Concentrator for WAMS.\n\nUnder guidance of Dr. A.M. Kulkarni\nDepartment of Electrical Engineering\nIndian Institute of Technology, Bombay\nMumbai, INDIA\n\nAuthors: Kedar Khandeparkar\n Nitesh Pandit"); 00296 00297 gtk_about_dialog_set_license ((GtkAboutDialog *)about_dialog, "\t\t\t\tiPDC - A Phasor Data Concentrator\n\nGeneral Public License (GPL)\n\nAuthors:\n\t\tKedar V. Khandeparkar <kedar.khandeparkar@gmail.com>\n\t\tNitesh Pandit <panditnitesh@gmail.com>\n\n\nThis program is free software; you can redistribute it and/or\nmodify it under the terms of the GNU General Public License\nas published by the Free Software Foundation; either version 2\nof the License, or (at your option) any later version.\n\nThis program is distributed in the hope that it will be useful,\nbut WITHOUT ANY WARRANTY; without even the implied warranty of\nMERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the\nGNU General Public License for more details.\n\nYou should have received a copy of the GNU General Public License\nalong with this program; if not, write to the Free Software\nFoundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.\n"); 00298 00299 gtk_about_dialog_set_copyright ((GtkAboutDialog *)about_dialog, "Copyright (C) 2010-2011 GPL-3.0"); 00300 gtk_about_dialog_set_website ((GtkAboutDialog *)about_dialog, "http://wafms.co.cc/ipdc/"); 00301 gtk_about_dialog_set_authors ((GtkAboutDialog *)about_dialog, auth); 00302 gtk_about_dialog_set_logo ((GtkAboutDialog *)about_dialog, NULL); 00303 00304 /* Ensure that the dialog box is destroyed when the user responds */ 00305 g_signal_connect_swapped (about_dialog, "response", G_CALLBACK (gtk_widget_destroy), about_dialog); 00306 00307 /* Finally show the about_dialog. */ 00308 gtk_widget_show_all (about_dialog); 00309 };
Here is the caller graph for this function:
| void add_new_pdc | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |
Definition at line 1389 of file ipdcGui.c.
References ipdc_help(), new_pdc_validation(), new_window, p_ip, and p_protocol.
Referenced by main().
01390 { 01391 /* local variables */ 01392 char *markup3; 01393 GtkWidget *table, *close_button; 01394 GtkWidget *valdbutton, *help_button, *label; 01395 01396 /* Create a new dialog window for Destination Detail */ 01397 new_window = gtk_dialog_new (); 01398 g_signal_connect (new_window, "destroy", G_CALLBACK (gtk_widget_destroy), new_window); 01399 gtk_window_set_title (GTK_WINDOW (new_window), "Add Destination"); 01400 gtk_container_set_border_width (GTK_CONTAINER (new_window), 10); 01401 gtk_widget_set_size_request (new_window, 350, 300); 01402 01403 /* Create a table of 4 by 2 squares. */ 01404 table = gtk_table_new (4, 2, FALSE); 01405 01406 /* Set the spacing to 50 on x and 35 on y */ 01407 gtk_table_set_row_spacings (GTK_TABLE (table), 50); 01408 gtk_table_set_col_spacings (GTK_TABLE (table), 35); 01409 01410 /* The dialog window is created with a vbox packed into it */ 01411 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(new_window)->vbox), table, TRUE, TRUE, 0); 01412 gtk_widget_show (table); 01413 01414 /* Add few buttons to the bottom of the dialog */ 01415 close_button = gtk_button_new_with_label ("close"); 01416 valdbutton = gtk_button_new_with_label ("Add"); 01417 help_button = gtk_button_new_with_label ("Help"); 01418 01419 /* this simply creates a grid of toggle buttons on the table to demonstrate the scrolled window. */ 01420 label = gtk_label_new (" "); 01421 markup3 = g_markup_printf_escaped ("<span foreground=\"#990033\" font='10'><b>Enter Destination Device Details</b></span>"); 01422 gtk_label_set_markup (GTK_LABEL (label), markup3); 01423 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01424 gtk_widget_show (label); 01425 g_free(markup3); 01426 01427 label = gtk_label_new ("Destination IP Address"); 01428 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 2, 3); 01429 gtk_widget_show (label); 01430 01431 label = gtk_label_new ("Protocol "); 01432 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 3, 4); 01433 gtk_widget_show (label); 01434 01435 /* Create text boxes for user to enter appropriate values */ 01436 p_ip = gtk_entry_new(); 01437 gtk_entry_set_max_length ((GtkEntry *)p_ip, 15); 01438 gtk_table_attach_defaults (GTK_TABLE (table), p_ip, 1, 2, 2, 3); 01439 gtk_widget_show (p_ip); 01440 01441 /* Create combo boxe for user with some fixed values */ 01442 p_protocol = gtk_combo_box_new_text(); 01443 gtk_combo_box_append_text(GTK_COMBO_BOX(p_protocol), "UDP"); 01444 gtk_combo_box_append_text(GTK_COMBO_BOX(p_protocol), "TCP"); 01445 gtk_combo_box_set_active(GTK_COMBO_BOX(p_protocol), 0); 01446 gtk_table_attach_defaults (GTK_TABLE (table), p_protocol, 1, 2, 3, 4); 01447 gtk_widget_show (p_protocol); 01448 01449 /* Signal handling for buttons on Destination Details Window */ 01450 g_signal_connect_swapped (valdbutton, "clicked", G_CALLBACK (new_pdc_validation), valdbutton); 01451 g_signal_connect_swapped (help_button, "clicked", G_CALLBACK (ipdc_help), NULL); 01452 g_signal_connect_swapped (close_button, "clicked", G_CALLBACK (gtk_widget_destroy), new_window); 01453 01454 /* This makes it so the button is the default. */ 01455 gtk_widget_set_can_default (close_button, TRUE); 01456 gtk_widget_set_can_default (valdbutton, TRUE); 01457 gtk_widget_set_can_default (help_button, TRUE); 01458 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (new_window)->action_area), valdbutton, TRUE, TRUE, 0); 01459 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (new_window)->action_area), help_button, TRUE, TRUE, 0); 01460 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (new_window)->action_area), close_button, TRUE, TRUE, 0); 01461 01462 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01463 gtk_widget_grab_default (valdbutton); 01464 gtk_widget_show (valdbutton); 01465 gtk_widget_grab_default (help_button); 01466 gtk_widget_show (help_button); 01467 gtk_widget_grab_default (close_button); 01468 gtk_widget_show (close_button); 01469 01470 /* Finally show the new_window */ 01471 gtk_widget_show (new_window); 01472 };

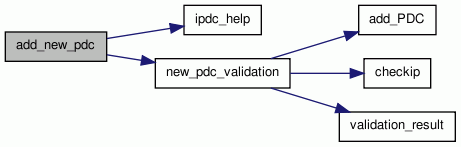

Here is the call graph for this function:
Here is the caller graph for this function:
| void add_pmu | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |
Definition at line 972 of file ipdcGui.c.
References add_pmu_validation(), add_pmu_window, ipdc_help(), p_id, p_ip, p_port, and p_protocol.
Referenced by main().
00973 { 00974 /* local variables */ 00975 char *markup1; 00976 GtkWidget *table, *close_button; 00977 GtkWidget *valdbutton, *help_button, *label; 00978 00979 /* Create a new dialog window for Source Device Details */ 00980 add_pmu_window = gtk_dialog_new (); 00981 g_signal_connect (add_pmu_window, "destroy", G_CALLBACK (gtk_widget_destroy), add_pmu_window); 00982 gtk_window_set_title (GTK_WINDOW (add_pmu_window), "Add Source Device"); 00983 gtk_container_set_border_width (GTK_CONTAINER (add_pmu_window), 10); 00984 gtk_widget_set_size_request (add_pmu_window, 350, 350); 00985 00986 /* Create a table of 5 by 2 squares. */ 00987 table = gtk_table_new (5, 2, FALSE); 00988 00989 /* Set the spacing to 20 on x and 30 on y */ 00990 gtk_table_set_row_spacings (GTK_TABLE (table), 20); 00991 gtk_table_set_col_spacings (GTK_TABLE (table), 30); 00992 00993 /* Pack the table into the window */ 00994 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(add_pmu_window)->vbox), table, TRUE, TRUE, 0); 00995 gtk_widget_show (table); 00996 00997 /* Add few button to the bottom of the dialog */ 00998 close_button = gtk_button_new_with_label ("close"); 00999 valdbutton = gtk_button_new_with_label ("Add"); 01000 help_button = gtk_button_new_with_label ("Help"); 01001 01002 /* This simply creates a grid of toggle buttons on the table */ 01003 label = gtk_label_new ("-"); 01004 markup1 = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b>Enter Source Device Details</b></span>"); 01005 gtk_label_set_markup (GTK_LABEL (label), markup1); 01006 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01007 gtk_widget_show (label); 01008 g_free (markup1); 01009 01010 label = gtk_label_new ("Source ID Code "); 01011 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 1, 2); 01012 gtk_widget_show (label); 01013 01014 label = gtk_label_new ("Source IP Address "); 01015 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 2, 3); 01016 gtk_widget_show (label); 01017 01018 label = gtk_label_new ("Source Port Number"); 01019 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 3, 4); 01020 gtk_widget_show (label); 01021 01022 label = gtk_label_new ("Protocol "); 01023 gtk_label_set_justify (GTK_LABEL (label), GTK_JUSTIFY_LEFT); 01024 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 4, 5); 01025 gtk_widget_show (label); 01026 01027 /* Create text boxes for user to enter appropriate values */ 01028 p_id = gtk_entry_new(); 01029 gtk_entry_set_max_length ((GtkEntry *)p_id, 5); 01030 gtk_table_attach_defaults (GTK_TABLE (table), p_id, 1, 2, 1, 2); 01031 gtk_widget_show (p_id); 01032 01033 p_ip = gtk_entry_new(); 01034 gtk_entry_set_max_length ((GtkEntry *)p_ip, 15); 01035 gtk_table_attach_defaults (GTK_TABLE (table), p_ip, 1, 2, 2, 3); 01036 gtk_widget_show (p_ip); 01037 01038 p_port = gtk_entry_new(); 01039 gtk_entry_set_max_length ((GtkEntry *)p_port, 5); 01040 gtk_table_attach_defaults (GTK_TABLE (table), p_port, 1, 2, 3, 4); 01041 gtk_widget_show (p_port); 01042 01043 /* Create combo boxe for user with some fixed values */ 01044 p_protocol = gtk_combo_box_new_text(); 01045 gtk_combo_box_append_text(GTK_COMBO_BOX(p_protocol), "UDP"); 01046 gtk_combo_box_append_text(GTK_COMBO_BOX(p_protocol), "TCP"); 01047 gtk_combo_box_set_active(GTK_COMBO_BOX(p_protocol), 0); 01048 gtk_table_attach_defaults (GTK_TABLE (table), p_protocol, 1, 2, 4, 5); 01049 gtk_widget_show (p_protocol); 01050 01051 /* Signal handling for buttons on Source Device Details Window */ 01052 g_signal_connect_swapped (valdbutton, "clicked", G_CALLBACK (add_pmu_validation), valdbutton); 01053 g_signal_connect_swapped (help_button, "clicked", G_CALLBACK (ipdc_help), NULL); 01054 g_signal_connect_swapped (close_button, "clicked", G_CALLBACK (gtk_widget_destroy), add_pmu_window); 01055 01056 /* This makes it so the button is the default. */ 01057 gtk_widget_set_can_default (close_button, TRUE); 01058 gtk_widget_set_can_default (valdbutton, TRUE); 01059 gtk_widget_set_can_default (help_button, TRUE); 01060 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (add_pmu_window)->action_area), valdbutton, TRUE, TRUE, 0); 01061 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (add_pmu_window)->action_area), help_button, TRUE, TRUE, 0); 01062 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (add_pmu_window)->action_area), close_button, TRUE, TRUE, 0); 01063 01064 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01065 gtk_widget_grab_default (valdbutton); 01066 gtk_widget_show (valdbutton); 01067 gtk_widget_grab_default (help_button); 01068 gtk_widget_show (help_button); 01069 gtk_widget_grab_default (close_button); 01070 gtk_widget_show (close_button); 01071 01072 /* Finally show the add_pmu_window */ 01073 gtk_widget_show (add_pmu_window); 01074 };

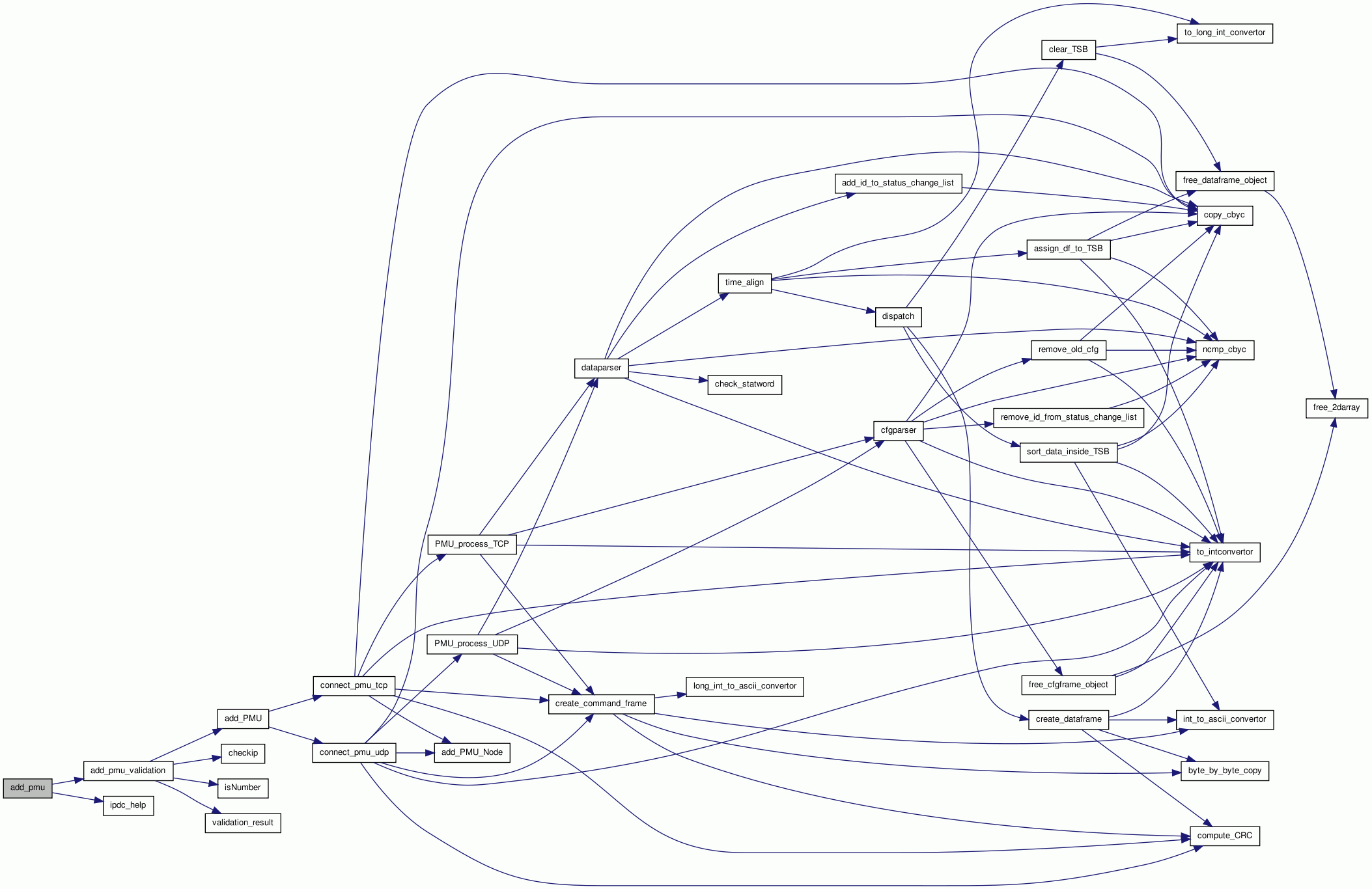

Here is the call graph for this function:
Here is the caller graph for this function:
| int add_pmu_validation | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |
Definition at line 524 of file ipdcGui.c.
References add_PMU(), add_pmu_window, checkip(), DBPORT, isNumber(), p_id, p_ip, p_port, p_protocol, PDC_IDCODE, TCPPORT, UDPPORT, and validation_result().
Referenced by add_pmu().
00525 { 00526 /* local variables */ 00527 int ret; 00528 char *errmsg1, ip[20], tmp[4]; 00529 const char *text, *text1, *text2, *text3; 00530 00531 /* Get the text entries filled by user */ 00532 text = gtk_entry_get_text(GTK_ENTRY(p_id)); 00533 text1 = gtk_entry_get_text(GTK_ENTRY(p_ip)); 00534 text2 = gtk_entry_get_text(GTK_ENTRY(p_port)); 00535 text3 = gtk_combo_box_get_active_text(GTK_COMBO_BOX(p_protocol)); 00536 memset(ip,'\0',20); 00537 strcat(ip, text1); 00538 strcpy (tmp, text3); 00539 00540 if ((!isNumber((char *)text)) || (atoi(text) == PDC_IDCODE)) /* Check text_box entry for valid integer or not? */ 00541 { 00542 errmsg1 = "Please enter valid value for source device ID code\n"; 00543 validation_result (errmsg1); /* Show the unsuccess message to user */ 00544 return 0; 00545 } 00546 else if((!isNumber((char *)text2)) && ((atoi(text2) < 1500 || (atoi(text2) > 65535)) || (atoi(text2) == TCPPORT || atoi(text2) == UDPPORT || atoi(text2) == DBPORT))) /* TCP and UDP port of iPDC should not match with it */ 00547 { 00548 errmsg1 = "\tPlease enter valid value for source device Port\t\n"; 00549 validation_result (errmsg1); /* Show the unsuccess message to user */ 00550 return 0; 00551 } 00552 else if(!checkip(ip)) /* Check text_box entry for valid IP Address or not? */ 00553 { 00554 errmsg1 = "\tPlease enter valid IP Addess of source device\t\n"; 00555 validation_result (errmsg1); /* Show the unsuccess message to user */ 00556 return 0; 00557 } 00558 else /* Only if all the text_box entries were right */ 00559 { 00560 /* call add_PMU() to actual add pmu/pdc and start communication */ 00561 ret = add_PMU((char *)text, (char *)text1, (char *)text2, (char *)text3); 00562 if (ret == 0) 00563 { 00564 /* Close/destroy the add_pmu_window */ 00565 gtk_widget_destroy (add_pmu_window); 00566 00567 errmsg1 = "\t\tSource Device Successfully Added\t\t\n"; 00568 validation_result (errmsg1); /* Show the success message to user */ 00569 return 1; 00570 } 00571 else 00572 { 00573 errmsg1 = "\t\tDevice details already exists\t\t\n"; 00574 validation_result (errmsg1); /* Show the unsuccess message to user */ 00575 return 0; 00576 } 00577 } 00578 };

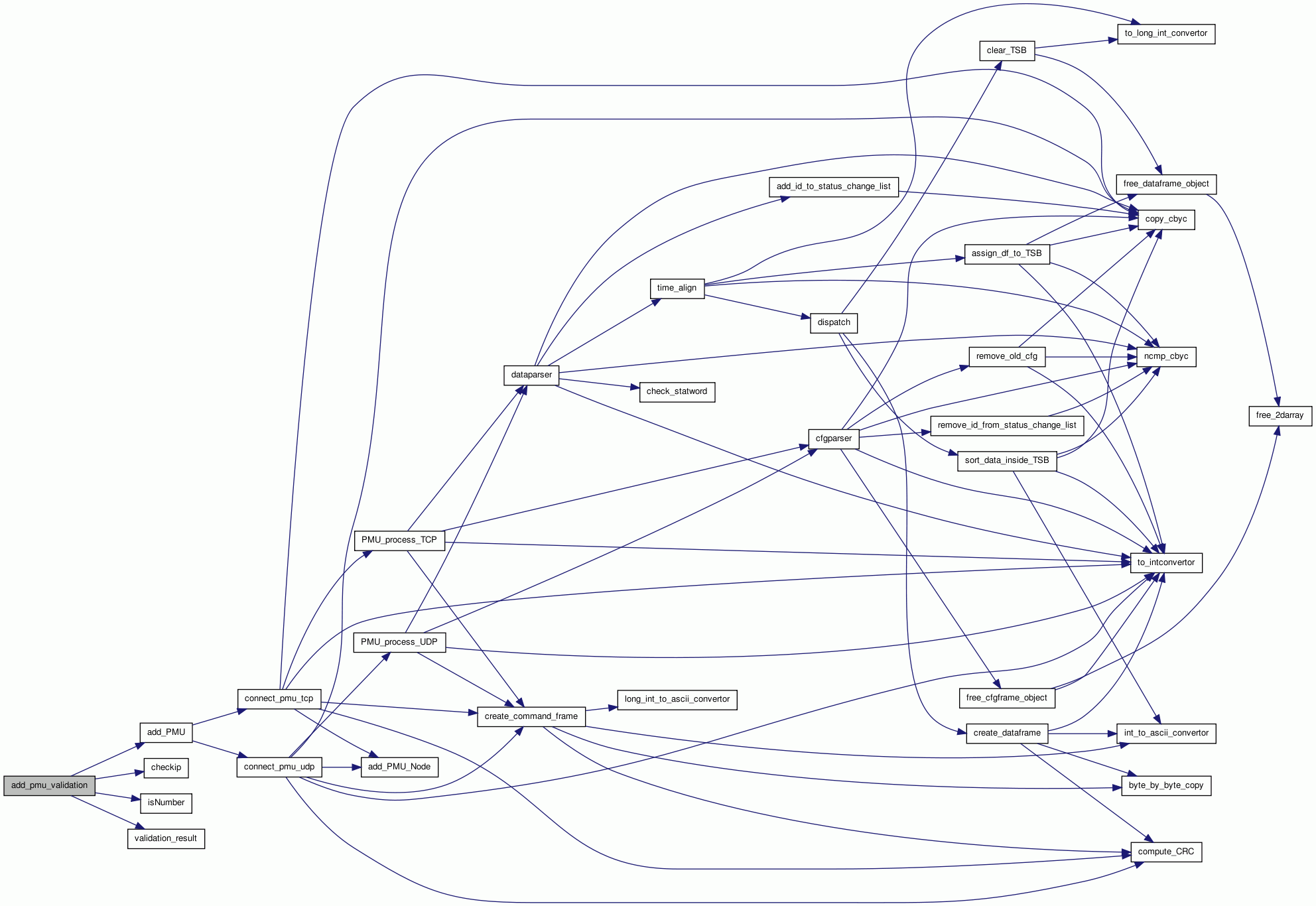

Here is the call graph for this function:
Here is the caller graph for this function:
| void cmd_or_remove_pmu | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |
Definition at line 1083 of file ipdcGui.c.
References buff, cmd_or_remove_pmu_validation(), Lower_Layer_Details::data_transmission_off, find_butn, i, Lower_Layer_Details::ip, ipdc_help(), LLfirst, new_window, Lower_Layer_Details::next, p_id, p_protocol, Lower_Layer_Details::pmuid, Lower_Layer_Details::port, and Lower_Layer_Details::protocol.
Referenced by main().
01084 { 01085 /* local variables */ 01086 GtkWidget *scrolled_window; 01087 GtkWidget *table, *close_button; 01088 GtkWidget *valdbutton, *help_button, *label; 01089 01090 int on_flag = 0, off_flag = 0; 01091 char line [40], *p_buff, tmp_str[20]; 01092 char ip[20],protocol[6],port[6],pmuid[6]; 01093 char *i,*p,*port_num,*id, *markup2; 01094 FILE *file_1; 01095 01096 /* Copy the 'udata' that came along with signal to identifies which function should execute */ 01097 strcpy(find_butn,(char *) udata); 01098 01099 /* Create a new dialog window for the scrolled window to be packed into */ 01100 new_window = gtk_dialog_new (); 01101 g_signal_connect (new_window, "destroy", G_CALLBACK (gtk_widget_destroy), new_window); 01102 01103 /* Set the window title according to fired signal */ 01104 if(!strcmp(find_butn, "1")) 01105 { 01106 gtk_window_set_title (GTK_WINDOW (new_window), "Remove Source Device"); 01107 } 01108 else if(!strcmp(find_butn, "2")) 01109 { 01110 gtk_window_set_title (GTK_WINDOW (new_window), "Turn OFF Data Transmission"); 01111 } 01112 else if(!strcmp(find_butn, "3")) 01113 { 01114 gtk_window_set_title (GTK_WINDOW (new_window), "Turn ON Data Transmission"); 01115 } 01116 else 01117 { 01118 gtk_window_set_title (GTK_WINDOW (new_window), "Configuration Frame Request"); 01119 } 01120 gtk_container_set_border_width (GTK_CONTAINER (new_window), 10); 01121 gtk_widget_set_size_request (new_window, 450, 350); 01122 01123 /* Create a new scrolled window */ 01124 scrolled_window = gtk_scrolled_window_new (NULL, NULL); 01125 gtk_container_set_border_width (GTK_CONTAINER (scrolled_window), 10); 01126 01127 /* The policy is one of GTK_POLICY AUTOMATIC, or GTK_POLICY_ALWAYS. GTK_POLICY_AUTOMATIC will automatically decide whether you need scrollbars, 01128 whereas GTK_POLICY_ALWAYS will always leave the scrollbars there. The first one is the horizontal scrollbar, the second is vertical. */ 01129 gtk_scrolled_window_set_policy (GTK_SCROLLED_WINDOW (scrolled_window), GTK_POLICY_AUTOMATIC, GTK_POLICY_ALWAYS); 01130 01131 /* The dialog window is created with a vbox packed into it */ 01132 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(new_window)->vbox), scrolled_window, TRUE, TRUE, 0); 01133 gtk_widget_show (scrolled_window); 01134 01135 /* create a table of 4 by 2 squares. */ 01136 table = gtk_table_new (4, 2, FALSE); 01137 01138 /* Set the spacing to 15 on x and 25 on y */ 01139 gtk_table_set_row_spacings (GTK_TABLE (table), 15); 01140 gtk_table_set_col_spacings (GTK_TABLE (table), 25); 01141 01142 /* Pack the table into the scrolled window */ 01143 gtk_scrolled_window_add_with_viewport (GTK_SCROLLED_WINDOW (scrolled_window), table); 01144 gtk_widget_show (table); 01145 01146 memset(buff,'\0',sizeof(buff)); 01147 memset(line,'\0',40); 01148 01149 /* Open the file 'pdc.txt' in read mode */ 01150 file_1 = fopen ("ipaddress.txt","r"); 01151 if ((file_1 == NULL) || (fgets (line, 40,file_1) == NULL)) 01152 { 01153 /* Place lable on a spacific position on table with text 'Sorry, No Records...!!!'*/ 01154 label = gtk_label_new (" "); 01155 markup2 = g_markup_printf_escaped ("<span foreground=\"#990033\" font='10'><b>Sorry, No Records...!!!\n-------------------------------------------------------------------\n</b></span>"); 01156 gtk_label_set_markup (GTK_LABEL (label), markup2); 01157 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 1, 2); 01158 gtk_widget_show (label); 01159 g_free(markup2); 01160 } 01161 else 01162 { 01163 /* This simply creates a grid of toggle buttons on the table to demonstrate the scrolled window. */ 01164 label = gtk_label_new (" "); 01165 markup2 = g_markup_printf_escaped ("<span foreground=\"#990033\" font='10'><b>Connection Details</b></span>"); 01166 gtk_label_set_markup (GTK_LABEL (label), markup2); 01167 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01168 gtk_widget_show (label); 01169 g_free(markup2); 01170 01171 /* Check wether fired signal from remove source or send CFG request */ 01172 if(!strcmp(find_butn, "1") || !strcmp(find_butn, "4")) 01173 { 01174 /* Open the file 'ipaddress.txt' in read mode */ 01175 file_1 = fopen ("ipaddress.txt","r"); 01176 01177 /* Add the button with title according to fired signal */ 01178 if(!strcmp(find_butn, "4")) 01179 { 01180 valdbutton = gtk_button_new_with_label ("Send"); 01181 } 01182 if(!strcmp(find_butn, "1")) 01183 { 01184 valdbutton = gtk_button_new_with_label ("Remove"); 01185 } 01186 01187 p_buff = " -------------------------------------------------------------------------------------------------\n| Source ID | IP | Port | Protocol |\n-------------------------------------------------------------------------------------------------\n"; 01188 strcat(buff, p_buff); 01189 memset(line,'\0',40); 01190 01191 while (fgets (line, 40,file_1) != NULL) 01192 { 01193 memset(ip,'\0',20); 01194 memset(port,'\0',6); 01195 memset(protocol,'\0',6); 01196 memset(pmuid,'\0',6); 01197 01198 /* Read the file data seprated by spaces and store into pointers */ 01199 id = strtok (line," "); 01200 i = strtok (NULL," "); 01201 port_num = strtok (NULL," "); 01202 p = strtok (NULL," "); 01203 01204 /* Copy the data into variables */ 01205 strcpy(pmuid, id); 01206 strcpy(ip, i); 01207 strcpy(port, port_num); 01208 strcpy(protocol, p); 01209 01210 /* Concate all the data into a big buffer */ 01211 strcat(buff, "| "); 01212 strcat(buff, pmuid); 01213 strcat(buff, "\t\t"); 01214 strcat(buff, ip); 01215 strcat(buff, "\t\t"); 01216 strcat(buff, port); 01217 strcat(buff, "\t "); 01218 strncat(buff, protocol, 3); 01219 strcat(buff, " |\n"); 01220 strcat(buff, "-------------------------------------------------------------------------------------------------\n"); 01221 } 01222 fclose (file_1); 01223 } 01224 01225 else if(!strcmp(find_butn, "2")) /* if signal fired from send Transmission OFF request to Source device */ 01226 { 01227 if(LLfirst != NULL) 01228 { 01229 /* Add a "Send" button to the bottom of the dialog */ 01230 valdbutton = gtk_button_new_with_label ("Send"); 01231 struct Lower_Layer_Details *t = LLfirst; 01232 01233 p_buff = " -------------------------------------------------------------------------------------------------\n| Source ID | IP | Port | Protocol |\n-------------------------------------------------------------------------------------------------\n"; 01234 strcat(buff, p_buff); 01235 01236 while(t != NULL) 01237 { 01238 if(t->data_transmission_off == 0) 01239 { 01240 /* Concate all the data into a big buffer */ 01241 memset(tmp_str,'\0',sizeof(tmp_str)); 01242 sprintf(tmp_str, "%d", t->pmuid); 01243 strcat(buff, "| "); 01244 strcat(buff, tmp_str); 01245 strcat(buff, "\t\t"); 01246 strcat(buff, t->ip); 01247 strcat(buff, "\t\t"); 01248 memset(tmp_str,'\0',sizeof(tmp_str)); 01249 sprintf(tmp_str, "%d", t->port); 01250 strcat(buff, tmp_str); 01251 strcat(buff, "\t "); 01252 strncat(buff, t->protocol, 3); 01253 strcat(buff, " |\n"); 01254 strcat(buff, "-------------------------------------------------------------------------------------------------\n"); 01255 off_flag = 1; 01256 } 01257 t = t->next; 01258 } 01259 } 01260 } 01261 01262 else if(!strcmp(find_butn, "3")) /* if signal fired from send Transmission ON request to Source device */ 01263 { 01264 if(LLfirst != NULL) 01265 { 01266 /* Add a "Send" button to the bottom of the dialog */ 01267 valdbutton = gtk_button_new_with_label ("Send"); 01268 struct Lower_Layer_Details *t = LLfirst; 01269 01270 p_buff = " -------------------------------------------------------------------------------------------------\n| Source ID | IP | Port | Protocol |\n-------------------------------------------------------------------------------------------------\n"; 01271 strcat(buff, p_buff); 01272 01273 while(t != NULL) 01274 { 01275 if(t->data_transmission_off == 1) 01276 { 01277 strcat(buff, "|\t"); 01278 memset(tmp_str,'\0',sizeof(tmp_str)); 01279 sprintf(tmp_str, "%d", t->pmuid); 01280 strcat(buff, tmp_str); 01281 strcat(buff, "\t\t\t"); 01282 strcat(buff, t->ip); 01283 strcat(buff, "\t\t"); 01284 memset(tmp_str,'\0',sizeof(tmp_str)); 01285 sprintf(tmp_str, "%d", t->port); 01286 strcat(buff, tmp_str); 01287 strcat(buff, "\t\t"); 01288 strcat(buff, t->protocol); 01289 strcat(buff, "\t|\n"); 01290 strcat(buff, "-----------------------------------------------------------------------------------------------\n"); 01291 on_flag = 1; 01292 } 01293 t = t->next; 01294 } 01295 } 01296 } 01297 01298 /* Simply check for source objects whose Transmission is not OFF (or ON)*/ 01299 if ((!strcmp(find_butn, "2")) && (off_flag == 0)) 01300 { 01301 /* Place lable on a spacific position on table with text 'Sorry, No Records...!!!'*/ 01302 label = gtk_label_new (" "); 01303 markup2 = g_markup_printf_escaped ("<span foreground=\"#990033\" font='10'><b>Sorry, No Records...!!!\n--------------------------------------------------------------------------\n</b></span>"); 01304 gtk_label_set_markup (GTK_LABEL (label), markup2); 01305 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 1, 2); 01306 gtk_widget_show (label); 01307 g_free(markup2); 01308 } 01309 else if ((!strcmp(find_butn, "3")) && (on_flag == 0)) /* Simply check for source objects whose Transmission is not ON (or OFF) */ 01310 { 01311 /* Place lable on a spacific position on table with text 'Sorry, No Records...!!!'*/ 01312 label = gtk_label_new (" "); 01313 markup2 = g_markup_printf_escaped ("<span foreground=\"#990033\" font='10'><b>Sorry, No Records...!!!\n--------------------------------------------------------------------------\n</b></span>"); 01314 gtk_label_set_markup (GTK_LABEL (label), markup2); 01315 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 1, 2); 01316 gtk_widget_show (label); 01317 g_free(markup2); 01318 } 01319 else 01320 { 01321 /* This simply creates a grid of toggle buttons on the table to demonstrate the scrolled window. */ 01322 label = gtk_label_new (buff); 01323 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 1, 2); 01324 gtk_widget_show (label); 01325 01326 label = gtk_label_new ("Source ID Code :"); 01327 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 2, 3); 01328 gtk_widget_show (label); 01329 01330 label = gtk_label_new ("Protocol :"); 01331 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 3, 4); 01332 gtk_widget_show (label); 01333 01334 /* Create text boxes for user to enter appropriate values */ 01335 p_id = gtk_entry_new(); 01336 gtk_entry_set_max_length ((GtkEntry *)p_id, 5); 01337 gtk_table_attach_defaults (GTK_TABLE (table), p_id, 1, 2, 2, 3); 01338 gtk_widget_show (p_id); 01339 01340 /* Create combo boxe for user with some fixed values */ 01341 p_protocol = gtk_combo_box_new_text(); 01342 gtk_combo_box_append_text(GTK_COMBO_BOX(p_protocol), "UDP"); 01343 gtk_combo_box_append_text(GTK_COMBO_BOX(p_protocol), "TCP"); 01344 gtk_combo_box_set_active(GTK_COMBO_BOX(p_protocol), 0); 01345 gtk_table_attach_defaults (GTK_TABLE (table), p_protocol, 1, 2, 3, 4); 01346 gtk_widget_show (p_protocol); 01347 01348 /* Add a "Help" button to the bottom of the dialog */ 01349 help_button = gtk_button_new_with_label ("Help"); 01350 01351 /* Signal handling for buttons on Window */ 01352 g_signal_connect_swapped (valdbutton, "clicked", G_CALLBACK (cmd_or_remove_pmu_validation), valdbutton); 01353 g_signal_connect_swapped (help_button, "clicked", G_CALLBACK (ipdc_help), NULL); 01354 01355 /* This makes it so the button is the default. */ 01356 gtk_widget_set_can_default (valdbutton, TRUE); 01357 gtk_widget_set_can_default (help_button, TRUE); 01358 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (new_window)->action_area), valdbutton, TRUE, TRUE, 0); 01359 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (new_window)->action_area), help_button, TRUE, TRUE, 0); 01360 01361 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01362 gtk_widget_grab_default (valdbutton); 01363 gtk_widget_show (valdbutton); 01364 gtk_widget_grab_default (help_button); 01365 gtk_widget_show (help_button); 01366 } 01367 } 01368 01369 /* Add a "Close" button to the bottom of the dialog */ 01370 close_button = gtk_button_new_with_label ("Close"); 01371 g_signal_connect_swapped (close_button, "clicked", G_CALLBACK (gtk_widget_destroy), new_window); 01372 gtk_widget_set_can_default (close_button, TRUE); 01373 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (new_window)->action_area), close_button, TRUE, TRUE, 0); 01374 gtk_widget_grab_default (close_button); 01375 gtk_widget_show (close_button); 01376 on_flag = 0, off_flag = 0; 01377 01378 /* Finally show the new_window */ 01379 gtk_widget_show (new_window); 01380 };
Here is the call graph for this function:
Here is the caller graph for this function:
| int cmd_or_remove_pmu_validation | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |
Definition at line 589 of file ipdcGui.c.
References configuration_request(), find_butn, isNumber(), new_window, p_id, p_protocol, put_data_transmission_off(), put_data_transmission_on(), remove_Lower_Node(), and validation_result().
Referenced by cmd_or_remove_pmu().
00590 { 00591 /* local variables */ 00592 int ret; 00593 char *errmsg1, tmp[4]; 00594 const char *text, *text1; 00595 00596 /* Get the text entries filled by user */ 00597 text = gtk_entry_get_text(GTK_ENTRY(p_id)); 00598 text1 = gtk_combo_box_get_active_text(GTK_COMBO_BOX(p_protocol)); 00599 memset(tmp, '\0', 4); 00600 strcpy (tmp, text1); 00601 00602 if (!isNumber((char *)text)) /* Check text_box entry for valid integer or not? */ 00603 { 00604 errmsg1 = "\tPlease enter valid value for Source device ID code\t\n"; 00605 validation_result (errmsg1); 00606 return 0; 00607 } 00608 else /* Only if all the text_box entries were right */ 00609 { 00610 if(!strcmp(find_butn, "1")) /* If function called by 'Remove source device' */ 00611 { 00612 /* call remove_Lower_Node() to remove source device */ 00613 ret = remove_Lower_Node((char *)text, (char *)text1); 00614 if (ret == 0) 00615 { 00616 /* Close/destroy the Source remove window */ 00617 gtk_widget_destroy (new_window); 00618 00619 errmsg1 = "\tSource device successfully removed\t\n"; 00620 validation_result (errmsg1); /* Show the success message to user */ 00621 return 1; 00622 } 00623 else 00624 { 00625 errmsg1 = "\t\tEntered Source device not found\t\t\n"; 00626 validation_result (errmsg1); /* Show the unsuccess message to user */ 00627 return 0; 00628 } 00629 } 00630 else if(!strcmp(find_butn, "2")) /* If function called by 'Send Data Transmission OFF' */ 00631 { 00632 /* call put_data_transmission_off() to put OFF data of source device */ 00633 ret = put_data_transmission_off((char *)text, (char *)text1); 00634 if (ret == 0) 00635 { 00636 /* Close/destroy the Send command frame window */ 00637 gtk_widget_destroy (new_window); 00638 00639 errmsg1 = "\tData Transmission put OFF\t\n"; 00640 validation_result (errmsg1); /* Show the success message to user */ 00641 return 1; 00642 } 00643 else 00644 { 00645 errmsg1 = "\t\tEntered Source device not found\t\t\n"; 00646 validation_result (errmsg1); /* Show the unsuccess message to user */ 00647 return 0; 00648 } 00649 } 00650 else if(!strcmp(find_butn, "3")) /* If function called by 'Send Data Transmission ON' */ 00651 { 00652 /* call put_data_transmission_on() to put ON data of source device */ 00653 ret = put_data_transmission_on((char *)text, (char *)text1); 00654 if (ret == 0) 00655 { 00656 /* Close/destroy the Send command frame window */ 00657 gtk_widget_destroy (new_window); 00658 00659 errmsg1 = "\tData Transmission put ON\t\n"; 00660 validation_result (errmsg1); /* Show the success message to user */ 00661 return 1; 00662 } 00663 else 00664 { 00665 errmsg1 = "\t\tEntered Source device not found\t\t\n"; 00666 validation_result (errmsg1); /* Show the unsuccess message to user */ 00667 return 0; 00668 } 00669 } 00670 else if(!strcmp(find_butn, "4")) /* If function called by Send Configuration request */ 00671 { 00672 /* call configuration_request() to send Configuration request */ 00673 ret = configuration_request((char *)text, (char *)text1); 00674 if (ret == 0) 00675 { 00676 /* Close/destroy the Send command frame window */ 00677 gtk_widget_destroy (new_window); 00678 00679 errmsg1 = "\t\tConfiguration Frame request sent\t\t\n"; 00680 validation_result (errmsg1); /* Show the success message to user */ 00681 return 1; 00682 } 00683 else 00684 { 00685 errmsg1 = "\t\tEntered Source device not found\t\t\n"; 00686 validation_result (errmsg1); /* Show the unsuccess message to user */ 00687 return 0; 00688 } 00689 } 00690 else 00691 { 00692 errmsg1 = "\t\t\tUNKNOWN FUNCTION CALL\t\t\t\n"; 00693 validation_result (errmsg1); /* Show the unsuccess message to user */ 00694 return 1; 00695 } 00696 } 00697 };

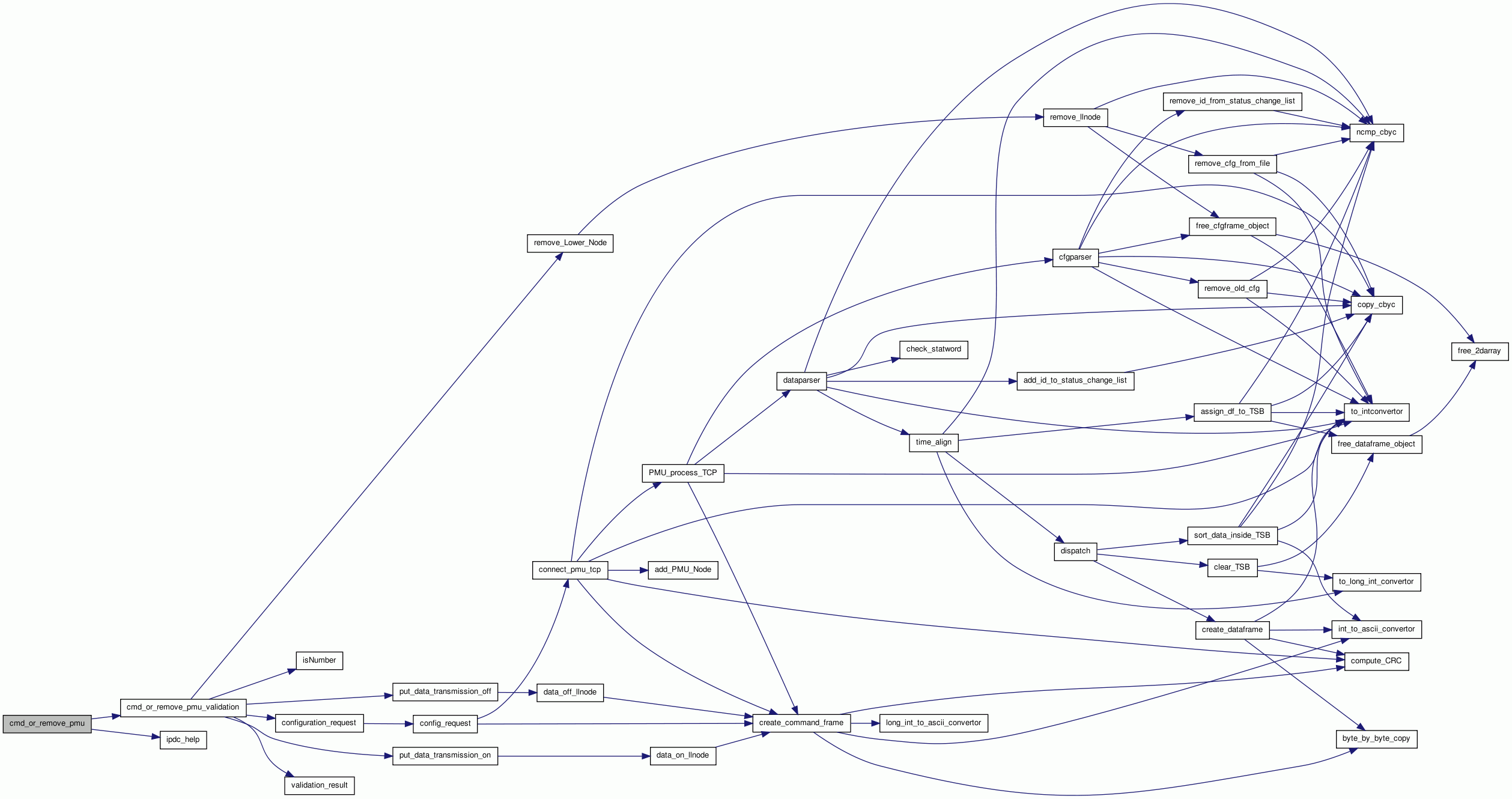

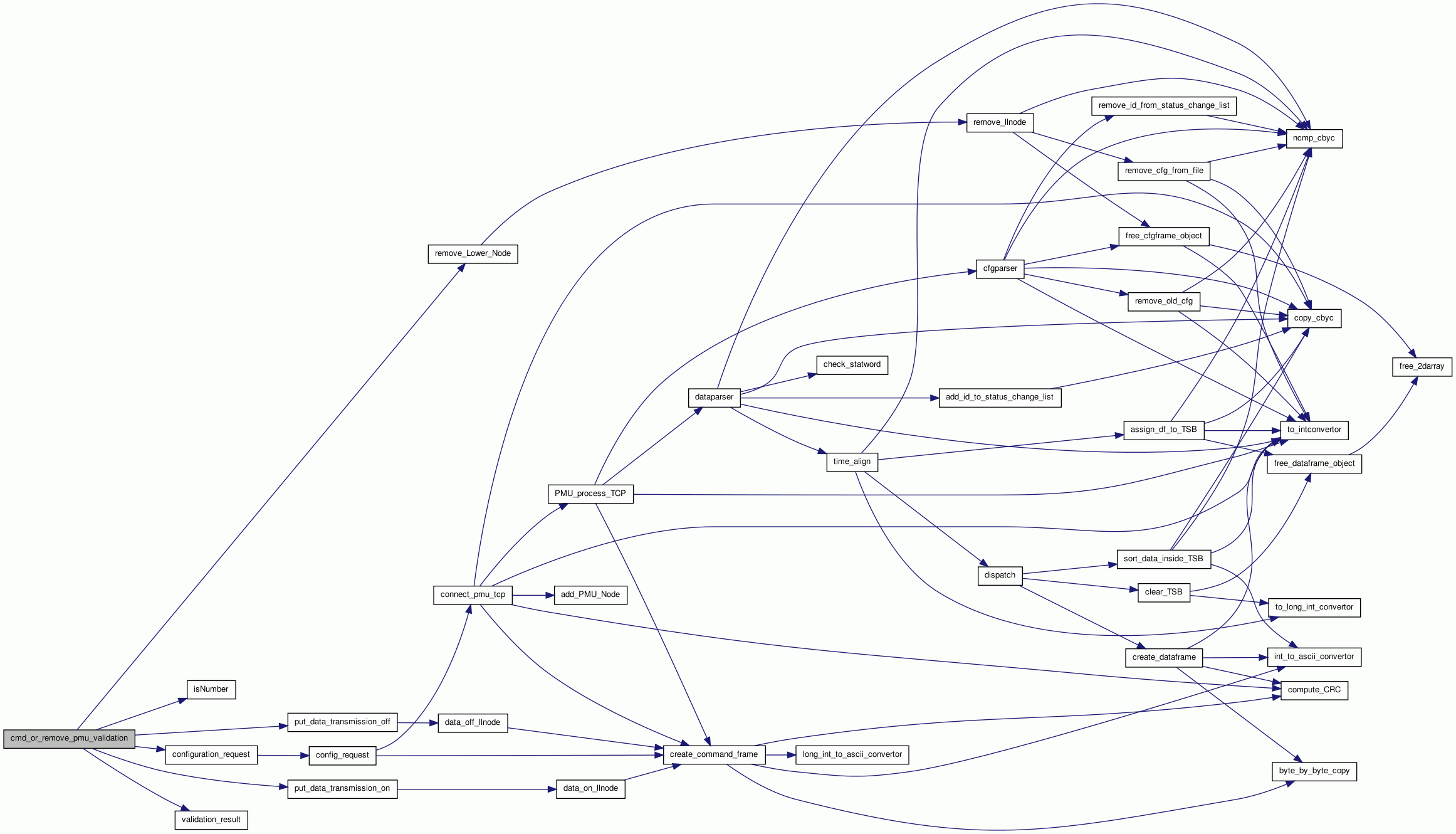

Here is the call graph for this function:
Here is the caller graph for this function:
| void connection_table | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |
Definition at line 1653 of file ipdcGui.c.
References buff, i, Lower_Layer_Details::ip, new_window, Lower_Layer_Details::pmuid, Lower_Layer_Details::port, and Lower_Layer_Details::protocol.
Referenced by main().
01654 { 01655 /* local variables */ 01656 GtkWidget *scrolled_window; 01657 GtkWidget *table, *close_button; 01658 GtkWidget *label; 01659 01660 char *i,*p,*port_num,*id; 01661 char line [40], *p_buff; 01662 char ip[20],protocol[6],port[6],pmuid[6]; 01663 char *markup5, *markup6, *markup7, *markup8; 01664 FILE *file_1; 01665 01666 /* Create a new dialog window for the scrolled window to be packed into */ 01667 new_window = gtk_dialog_new (); 01668 g_signal_connect (new_window, "destroy", G_CALLBACK (gtk_widget_destroy), new_window); 01669 gtk_window_set_title (GTK_WINDOW (new_window), "iPDC Connections"); 01670 gtk_container_set_border_width (GTK_CONTAINER (new_window), 10); 01671 gtk_widget_set_size_request (new_window, 450, 350); 01672 01673 /* Create a new scrolled window. */ 01674 scrolled_window = gtk_scrolled_window_new (NULL, NULL); 01675 gtk_container_set_border_width (GTK_CONTAINER (scrolled_window), 10); 01676 01677 /* the policy is one of GTK_POLICY AUTOMATIC, or GTK_POLICY_ALWAYS. GTK_POLICY_AUTOMATIC will automatically decide whether you need scrollbars, 01678 whereas GTK_POLICY_ALWAYS will always leave the scrollbars there. The first one is the horizontal scrollbar, the second is vertical. */ 01679 gtk_scrolled_window_set_policy (GTK_SCROLLED_WINDOW (scrolled_window), GTK_POLICY_AUTOMATIC, GTK_POLICY_ALWAYS); 01680 01681 /* The dialog window is created with a vbox packed into it. */ 01682 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(new_window)->vbox), scrolled_window, TRUE, TRUE, 0); 01683 gtk_widget_show (scrolled_window); 01684 01685 /* Create a table of 4 by 1 squares */ 01686 table = gtk_table_new (4, 1, FALSE); 01687 01688 /* Set the spacing to 15 on x and 25 on y */ 01689 gtk_table_set_row_spacings (GTK_TABLE (table), 15); 01690 gtk_table_set_col_spacings (GTK_TABLE (table), 25); 01691 01692 /* Pack the table into the scrolled window */ 01693 gtk_scrolled_window_add_with_viewport (GTK_SCROLLED_WINDOW (scrolled_window), table); 01694 gtk_widget_show (table); 01695 01696 /* Add a "close" button to the bottom of the dialog */ 01697 close_button = gtk_button_new_from_stock (GTK_STOCK_OK);// or GTK_STOCK_APPLY); 01698 01699 /* Print some text on lable with color and proper font */ 01700 label = gtk_label_new ("-"); 01701 markup5 = g_markup_printf_escaped ("<span foreground=\"#006666\" font='12'><b>Source Devices Connection Table\t\t</b></span>"); 01702 gtk_label_set_markup (GTK_LABEL (label), markup5); 01703 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01704 gtk_widget_show (label); 01705 01706 /* Open the "ipaddress.txt" file */ 01707 memset(buff,'\0',sizeof(buff)); 01708 file_1 = fopen ("ipaddress.txt","r"); 01709 if (file_1 == NULL) 01710 { 01711 /* Place lable on a spacific position on table with text 'Sorry, No Records...!!!'*/ 01712 label = gtk_label_new (" "); 01713 markup6 = g_markup_printf_escaped ("<span foreground=\"#990033\" font='10'><b>Sorry, No Records...!!!\n--------------------------------------------------\n</b></span>"); 01714 gtk_label_set_markup (GTK_LABEL (label), markup6); 01715 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 1, 2); 01716 gtk_widget_show (label); 01717 g_free(markup6); 01718 } 01719 else 01720 { 01721 p_buff = " -------------------------------------------------------------------------------------------------\n| Source ID | IP | Port | Protocol |\n-------------------------------------------------------------------------------------------------\n"; 01722 strcat(buff, p_buff); 01723 memset(line,'\0',40); 01724 01725 while (fgets (line, 40,file_1) != NULL) /* read a line */ 01726 { 01727 memset(ip,'\0',20); 01728 memset(port,'\0',6); 01729 memset(protocol,'\0',6); 01730 memset(pmuid,'\0',6); 01731 01732 /* Read the file data seprated by spaces and store into pointers */ 01733 id = strtok (line," "); 01734 i = strtok (NULL," "); 01735 port_num = strtok (NULL," "); 01736 p = strtok (NULL," "); 01737 01738 /* Copy the data into variables */ 01739 strcpy(pmuid, id); 01740 strcpy(ip, i); 01741 strcpy(port, port_num); 01742 strcpy(protocol, p); 01743 01744 /* Concate all the data into a big buffer */ 01745 strcat(buff, "| "); 01746 strcat(buff, pmuid); 01747 strcat(buff, "\t\t"); 01748 strcat(buff, ip); 01749 strcat(buff, "\t\t"); 01750 strcat(buff, port); 01751 strcat(buff, "\t"); 01752 strcat(buff, " "); 01753 strncat(buff, protocol, 3); 01754 strcat(buff, " |\n"); 01755 strcat(buff, "-------------------------------------------------------------------------------------------------\n"); 01756 } 01757 fclose (file_1); 01758 } 01759 01760 /* This simply creates a grid of toggle buttons on the table to demonstrate the scrolled window. */ 01761 label = gtk_label_new (buff); 01762 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 1, 2); 01763 gtk_widget_show (label); 01764 01765 /* Print some text on lable with color and proper font */ 01766 label = gtk_label_new ("-"); 01767 markup7 = g_markup_printf_escaped ("<span foreground=\"#006666\" font='12'><b>Destination Devices Connection Table</b></span>"); 01768 gtk_label_set_markup (GTK_LABEL (label), markup7); 01769 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 2, 3); 01770 gtk_widget_show (label); 01771 g_free (markup7); 01772 01773 /* Open the "ipaddress.txt" file */ 01774 memset(buff,'\0',sizeof(buff)); 01775 file_1 = fopen ("upperpdc_ip.txt","r"); 01776 if (file_1 == NULL) 01777 { 01778 /* Place lable on a spacific position on table with text 'Sorry, No Records...!!!'*/ 01779 label = gtk_label_new (" "); 01780 markup8 = g_markup_printf_escaped ("<span foreground=\"#990033\" font='10'><b>Sorry, No Records...!!!\n--------------------------------------------------\n</b></span>"); 01781 gtk_label_set_markup (GTK_LABEL (label), markup8); 01782 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 3, 4); 01783 gtk_widget_show (label); 01784 g_free(markup8); 01785 } 01786 else 01787 { 01788 p_buff = " -------------------------------------------------------------------------------------------------\n| IP | Port | Protocol |\n-------------------------------------------------------------------------------------------------\n"; 01789 strcat(buff, p_buff); 01790 memset(line,'\0',40); 01791 01792 while (fgets (line, 40,file_1) != NULL) 01793 { 01794 memset(ip,'\0',20); 01795 memset(port,'\0',6); 01796 memset(protocol,'\0',6); 01797 01798 /* Read the file data seprated by spaces and store into pointers */ 01799 i = strtok (line," "); 01800 port_num = strtok (NULL," "); 01801 p = strtok (NULL," "); 01802 01803 /* Copy the data into variables */ 01804 strcpy(ip, i); 01805 strcpy(port, port_num); 01806 strcpy(protocol, p); 01807 01808 /* Concate all the data into a big buffer */ 01809 strcat(buff, "| "); 01810 strcat(buff, ip); 01811 strcat(buff, "\t\t"); 01812 strcat(buff, port); 01813 strcat(buff, "\t\t "); 01814 strncat(buff, protocol, 3); 01815 strcat(buff, " |\n"); 01816 strcat(buff, "-------------------------------------------------------------------------------------------------\n"); 01817 } 01818 fclose (file_1); 01819 } 01820 01821 /* Display the file information on lable */ 01822 label = gtk_label_new (buff); 01823 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 3, 4); 01824 gtk_widget_show (label); 01825 01826 /* Signal handling when Window will distroy or closed */ 01827 g_signal_connect_swapped (close_button, "clicked", G_CALLBACK (gtk_widget_destroy), new_window); 01828 01829 /* This makes it so the button is the default. */ 01830 gtk_widget_set_can_default (close_button, TRUE); 01831 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (new_window)->action_area), close_button, TRUE, TRUE, 0); 01832 01833 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01834 gtk_widget_grab_default (close_button); 01835 gtk_widget_show (close_button); 01836 01837 /* Finally show the new_window or Connection window */ 01838 gtk_widget_show (new_window); 01839 };
Here is the caller graph for this function:
| void destroy | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |
Definition at line 112 of file ipdcGui.c.
References tname.
Referenced by main().
00113 { 00114 FILE *f; 00115 char name[20],*psid,*psname,psN[15]; 00116 00117 g_print ("\niPDC Closing....Bye\n\n"); 00118 system(" ps ux | awk '/bash/ && !/awk/ {print $2 ,$7}'>names.txt"); 00119 f = fopen("names.txt","r"); 00120 00121 /* closing both the iPDC and extra termial we opened for displaying data */ 00122 int flag = 0; 00123 if (f != NULL) 00124 { 00125 memset(name,'\0',20); 00126 memset(psN,'\0',15); 00127 while (fgets (name, 20,f) != NULL) 00128 { 00129 psid = strtok (name," "); 00130 psname = strtok (NULL," "); 00131 strncpy(psN,psname,5); 00132 if(strstr(tname,psN)) 00133 { 00134 flag = 1; 00135 break; 00136 } 00137 } 00138 if(flag) 00139 { 00140 if(!kill(atoi(psid), SIGKILL)) 00141 { 00142 printf("Sent a SIGKILL signal to Process ID %d\n",atoi(psid)); 00143 } 00144 else 00145 { 00146 printf("Signal not sent to %d\n",(int)psid); 00147 } 00148 } 00149 fclose(f); 00150 remove("names.txt"); 00151 exit(1); 00152 } else { 00153 00154 perror("names.txt"); 00155 00156 } 00157 gtk_main_quit(); 00158 exit(1); 00159 };
Here is the caller graph for this function:
| void display_pdc_detail | ( | GtkButton * | widget, | |
| gpointer | udata | |||
| ) |
Definition at line 168 of file ipdcGui.c.
References new_window.
Referenced by main().
00169 { 00170 /* local variables */ 00171 char line[20]; 00172 char *markup; 00173 GtkWidget *new_window, *table; 00174 GtkWidget *label, *ok_button; 00175 FILE *file_1; 00176 00177 /* Open the file 'pdc.txt' in read mode */ 00178 file_1 = fopen ("pdc.txt","r"); 00179 if (file_1 != NULL) 00180 { 00181 /* If its available, then create a new dialog window for displaying the iPDC details. */ 00182 new_window = gtk_dialog_new (); 00183 g_signal_connect (new_window, "destroy", G_CALLBACK (gtk_widget_destroy), new_window); 00184 gtk_window_set_title (GTK_WINDOW (new_window), "iPDC Details"); 00185 gtk_container_set_border_width (GTK_CONTAINER (new_window), 10); 00186 gtk_widget_set_size_request (new_window, 350, 350); 00187 00188 /* create a table of 6 by 2 squares. */ 00189 table = gtk_table_new (6, 2, FALSE); 00190 00191 /* set the spacing to 10 on x and 10 on y */ 00192 gtk_table_set_row_spacings (GTK_TABLE (table), 10); 00193 gtk_table_set_col_spacings (GTK_TABLE (table), 10); 00194 00195 /* pack the table into the window */ 00196 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(new_window)->vbox), table, TRUE, TRUE, 0); 00197 gtk_widget_show (table); 00198 00199 /* Add a "close" button to the bottom of the dialog */ 00200 ok_button = gtk_button_new_with_label ("OK"); 00201 00202 /* This simply creates a grid of labels on the table to demonstrate the window. 00203 g_markup_printf_escaped (): function to display diffrent color and font of text on label */ 00204 label = gtk_label_new (" "); 00205 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b>iPDC Details</b></span>"); 00206 gtk_label_set_markup (GTK_LABEL (label), markup); 00207 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 00208 gtk_widget_show (label); 00209 g_free (markup); 00210 00211 label = gtk_label_new ("iPDC ID Code "); 00212 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 1, 2); 00213 gtk_widget_show (label); 00214 00215 label = gtk_label_new ("iPDC UDP Port "); 00216 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 2, 3); 00217 gtk_widget_show (label); 00218 00219 label = gtk_label_new ("iPDC TCP Port "); 00220 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 3, 4); 00221 gtk_widget_show (label); 00222 00223 label = gtk_label_new ("Database Server IP"); 00224 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 4, 5); 00225 gtk_widget_show (label); 00226 00227 label = gtk_label_new ("Database Server Port"); 00228 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 5, 6); 00229 gtk_widget_show (label); 00230 00231 /* This simply read from file and print on label in the table. */ 00232 memset(line,'\0',sizeof(line)); 00233 fgets (line, 20, file_1); 00234 label = gtk_label_new (line); 00235 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 1, 2); 00236 gtk_widget_show (label); 00237 00238 memset(line,'\0',sizeof(line)); 00239 fgets (line, 20, file_1); 00240 label = gtk_label_new (line); 00241 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 2, 3); 00242 gtk_widget_show (label); 00243 00244 memset(line,'\0',sizeof(line)); 00245 fgets (line, 20, file_1); 00246 label = gtk_label_new (line); 00247 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 3, 4); 00248 gtk_widget_show (label); 00249 00250 memset(line,'\0',sizeof(line)); 00251 fgets (line, 20, file_1); 00252 label = gtk_label_new (line); 00253 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 4, 5); 00254 gtk_widget_show (label); 00255 fclose (file_1); 00256 00257 /* This is print static text (9000) on label in the table. */ 00258 label = gtk_label_new ("9000"); 00259 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 5, 6); 00260 gtk_widget_show (label); 00261 00262 /* Define signal on ok_button when it "clicked". */ 00263 g_signal_connect_swapped (ok_button, "clicked", G_CALLBACK (gtk_widget_destroy), new_window); 00264 00265 /* This makes it so the ok_button is the default. */ 00266 gtk_widget_set_can_default (ok_button, TRUE); 00267 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (new_window)->action_area), ok_button, TRUE, TRUE, 0); 00268 00269 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 00270 gtk_widget_grab_default (ok_button); 00271 gtk_widget_show (ok_button); 00272 00273 /* Finally show the new_window. */ 00274 gtk_widget_show (new_window); 00275 } 00276 };
Here is the caller graph for this function:
| void fill_pdc_details | ( | ) |
Definition at line 813 of file ipdcGui.c.
References _ChData::add_pdc_button, _ChData::add_pmu_button, _ChData::cmd_cfg_button, _ChData::cmd_data_off_button, _ChData::cmd_data_on_button, data, dbserver_ip, _ChData::display_conn_table_button, _ChData::enter_pdc_detail_menuitem, ipdc_help(), p_id, p_ip, p_tcp, p_udp, pdc_detail_window, _ChData::pdc_details_menuitem, PDC_IDCODE, recreate_cfg_objects(), recreate_Connection_Table(), _ChData::remove_pdc_button, _ChData::remove_pmu_button, setup(), TCPPORT, UDPPORT, validation_pdc_detail(), and validation_result().
Referenced by main(), and pdc_details().
00814 { 00815 /* Open the file 'pdc.txt' in read mode */ 00816 FILE *file_1 = fopen ("pdc.txt","r"); 00817 if (file_1 != NULL) 00818 { 00819 char line[20]; 00820 00821 /* If file is present initialize the global varialbes by details in file */ 00822 memset(line,'\0',sizeof(line)); 00823 fgets (line, 20, file_1); 00824 PDC_IDCODE = atoi(line); 00825 00826 memset(line,'\0',sizeof(line)); 00827 fgets (line, 20, file_1); 00828 UDPPORT = atoi(line); 00829 00830 memset(line,'\0',sizeof(line)); 00831 fgets (line, 20, file_1); 00832 TCPPORT = atoi(line); 00833 00834 memset(line,'\0',sizeof(line)); 00835 fgets (line, 20, file_1); 00836 strcpy(dbserver_ip, line); 00837 fclose (file_1); 00838 00839 /* Desable the menuitem button if there is already enty for iPDC */ 00840 gtk_widget_set_sensitive(GTK_WIDGET(data->enter_pdc_detail_menuitem), FALSE); 00841 00842 /* Recreate the configuration objects and connection table */ 00843 recreate_cfg_objects(); 00844 recreate_Connection_Table(); 00845 00846 /* setup() call to stablish the connections if any */ 00847 setup(); 00848 } 00849 else 00850 { 00851 /* local variables for iPDC Detail windows */ 00852 char *markup15; 00853 GtkWidget *table, *label; 00854 GtkWidget *valdbutton, *help_button; 00855 00856 /* Create a new dialog window for iPDC Setup */ 00857 pdc_detail_window = gtk_dialog_new (); 00858 g_signal_connect (pdc_detail_window, "destroy", G_CALLBACK (gtk_widget_destroy), pdc_detail_window); 00859 gtk_window_set_title (GTK_WINDOW (pdc_detail_window), "iPDC Setup"); 00860 gtk_container_set_border_width (GTK_CONTAINER (pdc_detail_window), 10); 00861 gtk_widget_set_size_request (pdc_detail_window, 350, 350); 00862 00863 /* Create a table of 6 by 2 squares. */ 00864 table = gtk_table_new (6, 2, FALSE); 00865 00866 /* Set the spacing to 15 on x and 25 on y */ 00867 gtk_table_set_row_spacings (GTK_TABLE (table), 15); 00868 gtk_table_set_col_spacings (GTK_TABLE (table), 25); 00869 00870 /* Pack the table into the window */ 00871 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(pdc_detail_window)->vbox), table, TRUE, TRUE, 0); 00872 gtk_widget_show (table); 00873 00874 /* Add few button to the bottom of the dialog */ 00875 valdbutton = gtk_button_new_with_label ("Add"); 00876 help_button = gtk_button_new_with_label ("Help"); 00877 00878 /* This simply creates a grid of toggle buttons on the table */ 00879 label = gtk_label_new (" "); 00880 markup15 = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b>Fill iPDC Details</b></span>"); 00881 gtk_label_set_markup (GTK_LABEL (label), markup15); 00882 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 00883 gtk_widget_show (label); 00884 g_free (markup15); 00885 00886 label = gtk_label_new ("iPDC ID Code "); 00887 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 1, 2); 00888 gtk_widget_show (label); 00889 00890 label = gtk_label_new ("iPDC UDP Port "); 00891 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 2, 3); 00892 gtk_widget_show (label); 00893 00894 label = gtk_label_new ("iPDC TCP Port "); 00895 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 3, 4); 00896 gtk_widget_show (label); 00897 00898 label = gtk_label_new ("Database Server IP "); 00899 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 4, 5); 00900 gtk_widget_show (label); 00901 00902 label = gtk_label_new ("Database Server Port"); 00903 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 5, 6); 00904 gtk_widget_show (label); 00905 00906 /* Create text boxes for user to enter appropriate values */ 00907 p_id = gtk_entry_new(); 00908 gtk_entry_set_max_length ((GtkEntry *)p_id, 5); 00909 gtk_table_attach_defaults (GTK_TABLE (table), p_id, 1, 2, 1, 2); 00910 gtk_widget_show (p_id); 00911 00912 p_udp = gtk_entry_new(); 00913 gtk_entry_set_max_length ((GtkEntry *)p_udp, 5); 00914 gtk_table_attach_defaults (GTK_TABLE (table), p_udp, 1, 2, 2, 3); 00915 gtk_widget_show (p_udp); 00916 00917 p_tcp = gtk_entry_new(); 00918 gtk_entry_set_max_length ((GtkEntry *)p_tcp, 5); 00919 gtk_table_attach_defaults (GTK_TABLE (table), p_tcp, 1, 2, 3, 4); 00920 gtk_widget_show (p_tcp); 00921 00922 p_ip = gtk_entry_new(); 00923 gtk_entry_set_max_length ((GtkEntry *)p_ip, 15); 00924 gtk_table_attach_defaults (GTK_TABLE (table), p_ip, 1, 2, 4, 5); 00925 gtk_widget_show (p_ip); 00926 00927 label = gtk_label_new ("9000"); 00928 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 5, 6); 00929 gtk_widget_show (label); 00930 00931 /* Disable all the (mentioned) buttons on main ipdc window */ 00932 gtk_widget_set_sensitive(GTK_WIDGET(data->add_pmu_button), FALSE); 00933 gtk_widget_set_sensitive(GTK_WIDGET(data->remove_pmu_button), FALSE); 00934 gtk_widget_set_sensitive(GTK_WIDGET(data->cmd_data_off_button), FALSE); 00935 gtk_widget_set_sensitive(GTK_WIDGET(data->cmd_data_on_button), FALSE); 00936 gtk_widget_set_sensitive(GTK_WIDGET(data->cmd_cfg_button), FALSE); 00937 gtk_widget_set_sensitive(GTK_WIDGET(data->add_pdc_button), FALSE); 00938 gtk_widget_set_sensitive(GTK_WIDGET(data->remove_pdc_button), FALSE); 00939 gtk_widget_set_sensitive(GTK_WIDGET(data->display_conn_table_button), FALSE); 00940 gtk_widget_set_sensitive(GTK_WIDGET(data->pdc_details_menuitem), FALSE); 00941 00942 /* Signal handling for buttons on iPDC Setup Window */ 00943 g_signal_connect_swapped (pdc_detail_window, "destroy", G_CALLBACK (gtk_widget_destroy), pdc_detail_window); 00944 g_signal_connect_swapped (valdbutton, "clicked", G_CALLBACK (validation_pdc_detail), NULL); 00945 g_signal_connect_swapped (help_button, "clicked", G_CALLBACK (ipdc_help), NULL); 00946 00947 /* This makes it so the button is the default. */ 00948 gtk_widget_set_can_default (valdbutton, TRUE); 00949 gtk_widget_set_can_default (help_button, TRUE); 00950 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (pdc_detail_window)->action_area), valdbutton, TRUE, TRUE, 0); 00951 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (pdc_detail_window)->action_area), help_button, TRUE, TRUE, 0); 00952 00953 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 00954 gtk_widget_grab_default (valdbutton); 00955 gtk_widget_show (valdbutton); 00956 gtk_widget_grab_default (help_button); 00957 gtk_widget_show (help_button); 00958 00959 /* Finally show the pdc_detail_window */ 00960 gtk_widget_show (pdc_detail_window); 00961 validation_result ("\t\tEnter the details for iPDC setup.\t\t\n"); 00962 } 00963 };

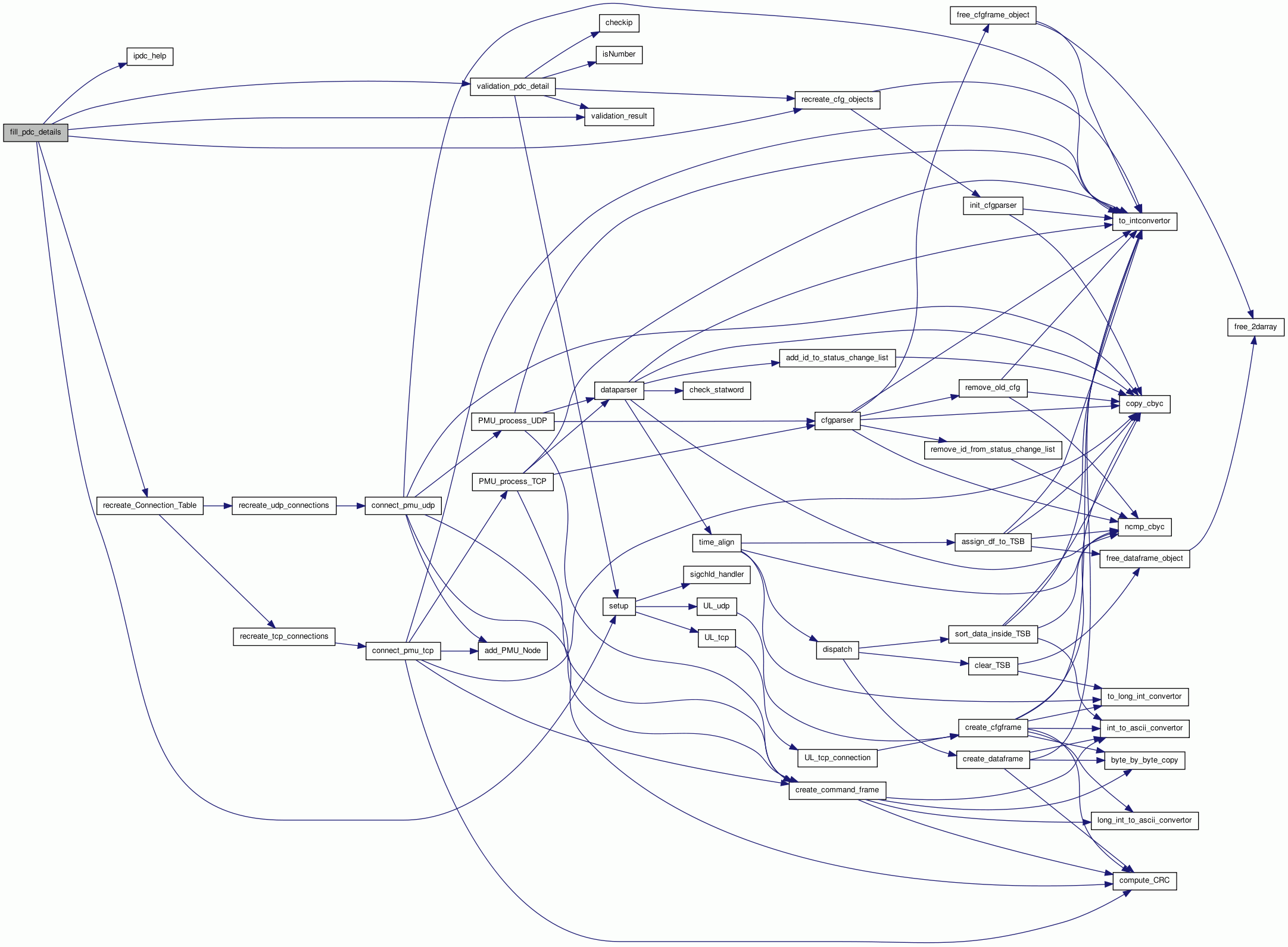

Here is the call graph for this function:
Here is the caller graph for this function:
| void ipdc_colors | ( | ) |
Definition at line 369 of file ipdcGui.c.
References _ChData::admin_label, data, _ChData::exit_button, _ChData::footer_label, _ChData::img_label, _ChData::wecome_button, and _ChData::welcome_ipdc.
Referenced by main().
00370 { 00371 char *markup9, *markup10, *markup11; 00372 00373 /* Set the font and color for the heading on 'welcome_ipdc' lable */ 00374 markup9 = g_markup_printf_escaped ("<span foreground=\"#2F4F4F\" font='20'><b>\tPhasor Data Concentrator\n\t\t\t iPDC</b></span>"); 00375 gtk_label_set_markup (GTK_LABEL (data->welcome_ipdc), markup9); 00376 g_free (markup9); 00377 00378 markup10 = g_markup_printf_escaped ("<span foreground=\"#330000\" font='8'><b>\n-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------</b>\n\n\n\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\tAll Rights Reserved</span>");//\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t<b>Indian Institute of Technology, Bombay</b></span>"); 00379 gtk_label_set_markup (GTK_LABEL (data->footer_label), markup10); 00380 g_free (markup10); 00381 00382 markup11 = g_markup_printf_escaped ("<span foreground=\"#333333\" font='10'><b>Admin Operations</b></span>"); 00383 gtk_label_set_markup (GTK_LABEL (data->admin_label), markup11); 00384 g_free (markup11); 00385 00386 /* Add a "close" button to the bottom of the dialog */ 00387 GdkColor color; 00388 GtkWidget *image, *image1; 00389 gdk_color_parse( "#cccccc", &color ); 00390 gtk_widget_modify_bg( GTK_WIDGET(data->exit_button), GTK_STATE_NORMAL, &color ); 00391 00392 gdk_color_parse( "#999999", &color ); 00393 gtk_widget_modify_bg( GTK_WIDGET(data->img_label), GTK_STATE_NORMAL, &color ); 00394 00395 image = gtk_image_new_from_file("PSLAB.PNG"); 00396 gtk_image_get_pixel_size ((GtkImage *)image); 00397 gtk_button_set_image ((GtkButton *)data->img_label, image); 00398 gtk_widget_show (data->img_label); 00399 00400 /* Set the image (iPDC-logo) on a specific button */ 00401 image1 = gtk_image_new_from_file("ipdc_logo.png"); 00402 gtk_image_get_pixel_size ((GtkImage *)image1); 00403 gtk_button_set_image ((GtkButton *)data->wecome_button, image1); 00404 gtk_widget_show (data->wecome_button); 00405 00406 //gtk_label_get_bold (GtkLabel *label) 00407 //gtk_button_set_image (GtkButton *button, GtkWidget *image); 00408 };
Here is the caller graph for this function:
| void ipdc_help | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |
Definition at line 318 of file ipdcGui.c.
Referenced by add_new_pdc(), add_pmu(), cmd_or_remove_pmu(), fill_pdc_details(), and remove_pdc().
00319 { 00320 /* local variables */ 00321 GtkWidget *help_dialog; 00322 00323 /* Create a about dialog for displaying iPDC help. */ 00324 help_dialog = gtk_about_dialog_new (); 00325 00326 /* Define the diffrent properties of about_dialog. */ 00327 gtk_about_dialog_set_program_name ((GtkAboutDialog *)help_dialog, "iPDC HELP\n\n"); 00328 gtk_about_dialog_set_comments ((GtkAboutDialog *)help_dialog, "1) ID Code ex. 50, 60, etc.\t\t\t\t\t\t\n\n 2) Port should be greater than 1500 and less than 65535.\n\n3) IP Address ex. 192.168.23.10\t\t\t\t\t"); 00329 00330 /* Ensure that the dialog box is destroyed when the user responds */ 00331 g_signal_connect_swapped (help_dialog, "response", G_CALLBACK (gtk_widget_destroy), help_dialog); 00332 00333 /* Finally show the about_dialog. */ 00334 gtk_widget_show_all (help_dialog); 00335 };

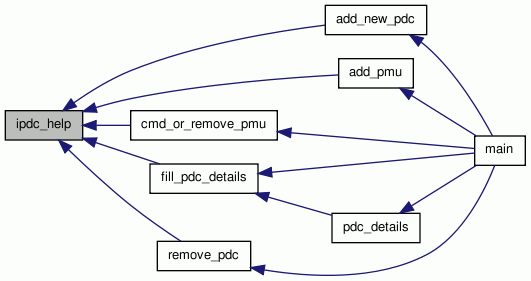

Here is the caller graph for this function:
| int isNumber | ( | char * | s | ) |
Definition at line 81 of file ipdcGui.c.
Referenced by add_pmu_validation(), cmd_or_remove_pmu_validation(), remove_pdc_validation(), and validation_pdc_detail().
00082 { 00083 int dot=0, num=0, end=0; 00084 00085 while(isspace(*s))s++; 00086 if(*s == '-')s++; 00087 if(! *s)return 0; 00088 while(*s) 00089 if(isspace(*s)) 00090 end=1, s++; 00091 else if(end) 00092 return 0; 00093 else if(isdigit(*s)) 00094 num=1, s++; 00095 else if(*s=='.') 00096 if(dot) 00097 return 0; 00098 else 00099 dot=1,s++; 00100 else 00101 return 0; 00102 return num; 00103 };

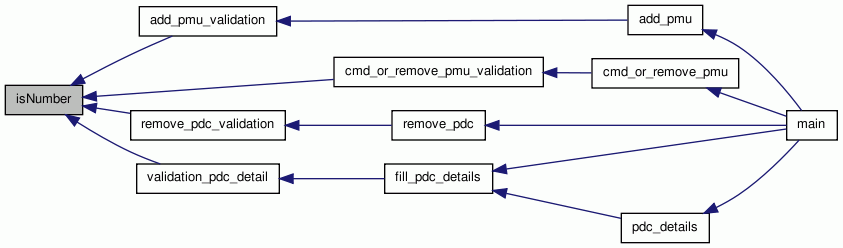

Here is the caller graph for this function:
| int new_pdc_validation | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |
Definition at line 707 of file ipdcGui.c.
References add_PDC(), checkip(), new_window, p_ip, p_protocol, and validation_result().
Referenced by add_new_pdc().
00708 { 00709 /* local variables */ 00710 int ret; 00711 const char *text, *text1; 00712 char *errmsg1, ip[20], tmp[6]; 00713 00714 /* Get the text entries for PDC, filled by user */ 00715 text = gtk_entry_get_text(GTK_ENTRY(p_ip)); 00716 text1 = gtk_combo_box_get_active_text(GTK_COMBO_BOX(p_protocol)); 00717 memset(ip,'\0',20); 00718 strcat(ip, text); 00719 strcpy (tmp, text1); 00720 00721 if(!checkip(ip)) /* Check text_box entry for valid IP Address or not? */ 00722 { 00723 errmsg1 = "\t\tPlease enter valid IP Addess of destination device\t\t\n"; 00724 validation_result (errmsg1); /* Show the unsuccess message to user */ 00725 return 0; 00726 } 00727 else /* Only if all the text_box entries were right */ 00728 { 00729 /* call add_PDC() to actual add pdc and start communication */ 00730 ret = add_PDC((char *)text, (char *)text1); 00731 if (ret == 0) 00732 { 00733 gtk_widget_destroy (new_window); 00734 00735 errmsg1 = "\tDestination device successfully added\t\n"; 00736 validation_result (errmsg1); /* Show the success message to user */ 00737 return 1; 00738 } 00739 else 00740 { 00741 errmsg1 = "\t\tDevice details already exists\t\t\n"; 00742 validation_result (errmsg1); /* Show the unsuccess message to user */ 00743 return 0; 00744 } 00745 } 00746 };

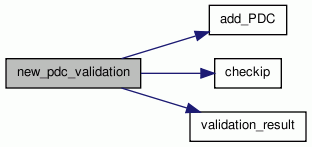

Here is the call graph for this function:
Here is the caller graph for this function:
| void pdc_details | ( | GtkButton * | button, | |
| gpointer | udata | |||
| ) |
Definition at line 416 of file ipdcGui.c.
References fill_pdc_details().
Referenced by main().
00417 { 00418 fill_pdc_details (); 00419 };

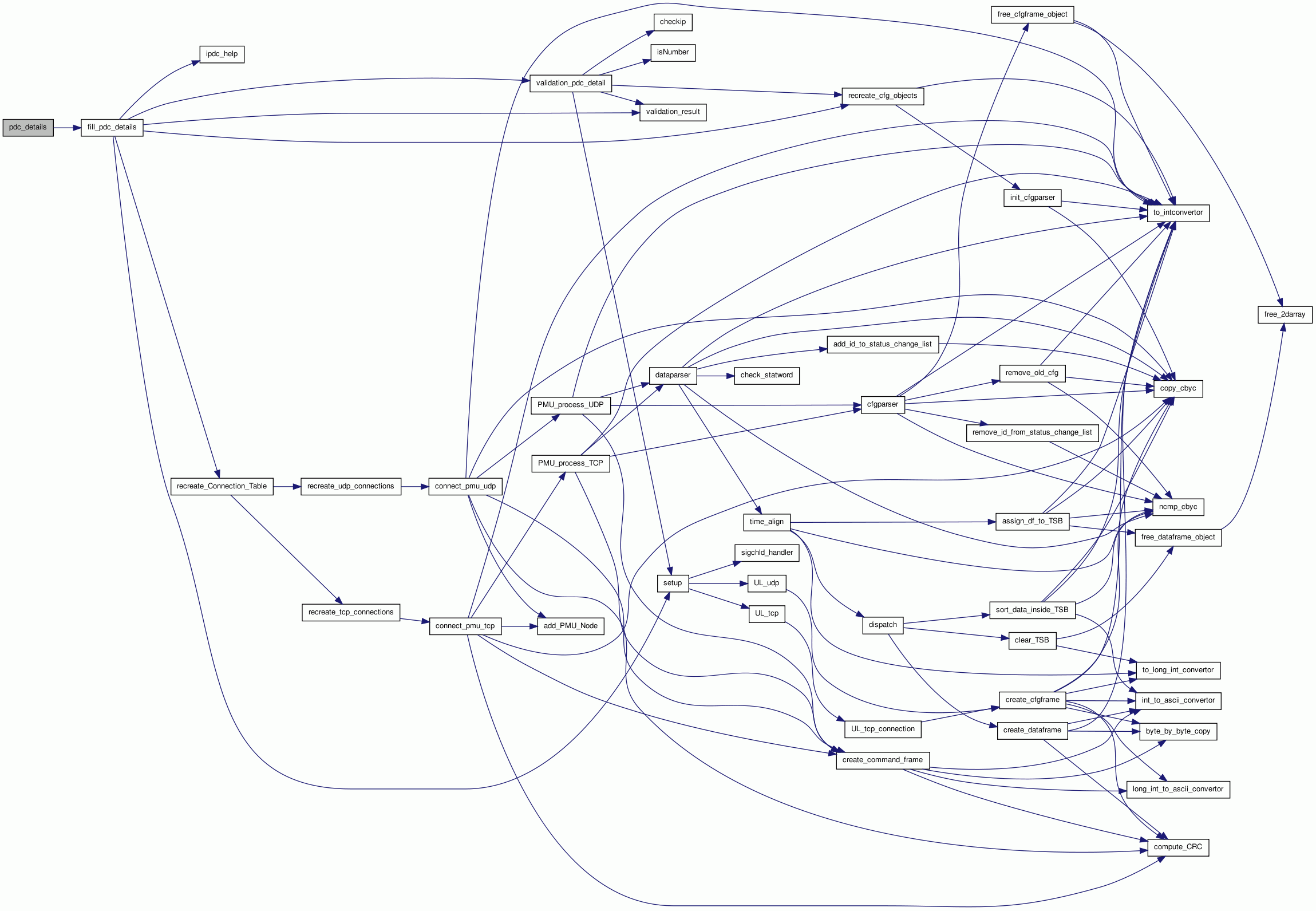

Here is the call graph for this function:
Here is the caller graph for this function:
| void remove_pdc | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |
Definition at line 1481 of file ipdcGui.c.
References buff, i, Lower_Layer_Details::ip, ipdc_help(), new_window, p_ip, p_port, p_protocol, Lower_Layer_Details::port, Lower_Layer_Details::protocol, and remove_pdc_validation().
Referenced by main().
01482 { 01483 /* local variables */ 01484 GtkWidget *scrolled_window, *label; 01485 GtkWidget *table, *close_button; 01486 GtkWidget *valdbutton, *help_button; 01487 01488 char line [40], *p_buff; 01489 char ip[20],protocol[6],port[6]; 01490 char *i,*p,*port_num, *markup4; 01491 FILE *file_1; 01492 01493 /* Create a new dialog window for the scrolled window to be packed into */ 01494 new_window = gtk_dialog_new (); 01495 g_signal_connect (new_window, "destroy", G_CALLBACK (gtk_widget_destroy), new_window); 01496 gtk_window_set_title (GTK_WINDOW (new_window), "Remove Destination"); 01497 gtk_container_set_border_width (GTK_CONTAINER (new_window), 10); 01498 gtk_widget_set_size_request (new_window, 450, 350); 01499 01500 /* Create a new scrolled window */ 01501 scrolled_window = gtk_scrolled_window_new (NULL, NULL); 01502 gtk_container_set_border_width (GTK_CONTAINER (scrolled_window), 10); 01503 01504 /* The policy is one of GTK_POLICY AUTOMATIC, or GTK_POLICY_ALWAYS. GTK_POLICY_AUTOMATIC will automatically decide whether you need scrollbars, 01505 whereas GTK_POLICY_ALWAYS will always leave the scrollbars there. The first one is the horizontal scrollbar, the second is vertical. */ 01506 gtk_scrolled_window_set_policy (GTK_SCROLLED_WINDOW (scrolled_window), GTK_POLICY_AUTOMATIC, GTK_POLICY_ALWAYS); 01507 01508 /* The dialog window is created with a vbox packed into it. */ 01509 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(new_window)->vbox), scrolled_window, TRUE, TRUE, 0); 01510 gtk_widget_show (scrolled_window); 01511 01512 /* create a table of 6 by 2 squares. */ 01513 table = gtk_table_new (6, 2, FALSE); 01514 01515 /* Set the spacing to 15 on x and 25 on y */ 01516 gtk_table_set_row_spacings (GTK_TABLE (table), 15); 01517 gtk_table_set_col_spacings (GTK_TABLE (table), 25); 01518 01519 /* Pack the table into the scrolled window */ 01520 gtk_scrolled_window_add_with_viewport (GTK_SCROLLED_WINDOW (scrolled_window), table); 01521 gtk_widget_show (table); 01522 01523 /* Add few buttons to the bottom of the dialog */ 01524 close_button = gtk_button_new_with_label ("close"); 01525 valdbutton = gtk_button_new_with_label ("Remove"); 01526 help_button = gtk_button_new_with_label ("Help"); 01527 01528 /* Open the "ipaddress.txt" file in read mode */ 01529 memset(buff,'\0',sizeof(buff)); 01530 file_1 = fopen ("upperpdc_ip.txt","r"); 01531 if (file_1 == NULL) 01532 { 01533 /* Place lable on a spacific position on table with text 'Sorry, No Records...!!!'*/ 01534 label = gtk_label_new (" "); 01535 markup4 = g_markup_printf_escaped ("<span foreground=\"#990033\" font='10'><b>Sorry, No Records...!!!\n--------------------------------------------------\n</b></span>"); 01536 gtk_label_set_markup (GTK_LABEL (label), markup4); 01537 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 1, 2); 01538 gtk_widget_show (label); 01539 g_free(markup4); 01540 } 01541 else 01542 { 01543 p_buff = " -------------------------------------------------------------------------------------------------\n| IP | Port | Protocol |\n-------------------------------------------------------------------------------------------------\n"; 01544 strcat(buff, p_buff); 01545 memset(line,'\0',40); 01546 01547 while (fgets (line, 40,file_1) != NULL) 01548 { 01549 memset(ip,'\0',20); 01550 memset(port,'\0',6); 01551 memset(protocol,'\0',6); 01552 01553 /* Read the file data seprated by spaces and store into pointers */ 01554 i = strtok (line," "); 01555 port_num = strtok (NULL," "); 01556 p = strtok (NULL," "); 01557 01558 /* Copy the data into variables */ 01559 strcpy(ip, i); 01560 strcpy(port, port_num); 01561 strcpy(protocol, p); 01562 01563 /* Concate all the data into a big buffer */ 01564 strcat(buff, "| "); 01565 strcat(buff, ip); 01566 strcat(buff, "\t\t"); 01567 strcat(buff, port); 01568 strcat(buff, "\t\t "); 01569 strncat(buff, protocol, 3); 01570 strcat(buff, " |\n"); 01571 strcat(buff, "-------------------------------------------------------------------------------------------------\n"); 01572 } 01573 fclose (file_1); 01574 01575 /* This simply creates a grid of toggle buttons on the table to demonstrate the scrolled window. */ 01576 label = gtk_label_new (" "); 01577 markup4 = g_markup_printf_escaped ("<span foreground=\"#990033\" font='10'><b>Destination Connection Details</b></span>"); 01578 gtk_label_set_markup (GTK_LABEL (label), markup4); 01579 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01580 gtk_widget_show (label); 01581 g_free(markup4); 01582 01583 label = gtk_label_new (buff); 01584 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 1, 2); 01585 gtk_widget_show (label); 01586 01587 label = gtk_label_new ("Destination IP Address"); 01588 gtk_label_set_justify (GTK_LABEL (label), GTK_JUSTIFY_LEFT); 01589 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 2, 3); 01590 gtk_widget_show (label); 01591 01592 label = gtk_label_new ("Destination Port "); 01593 gtk_label_set_justify (GTK_LABEL (label), GTK_JUSTIFY_LEFT); 01594 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 3, 4); 01595 gtk_widget_show (label); 01596 01597 label = gtk_label_new ("Protocol "); 01598 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 4, 5); 01599 gtk_label_set_justify (GTK_LABEL (label), GTK_JUSTIFY_LEFT); 01600 gtk_widget_show (label); 01601 01602 /* Create text boxes for user to enter appropriate values */ 01603 p_ip = gtk_entry_new(); 01604 gtk_table_attach_defaults (GTK_TABLE (table), p_ip, 1, 2, 2, 3); 01605 gtk_widget_show (p_ip); 01606 01607 p_port = gtk_entry_new(); 01608 gtk_table_attach_defaults (GTK_TABLE (table), p_port, 1, 2, 3, 4); 01609 gtk_widget_show (p_port); 01610 01611 /* Create combo boxe for user with some fixed values */ 01612 p_protocol = gtk_combo_box_new_text(); 01613 gtk_combo_box_append_text(GTK_COMBO_BOX(p_protocol), "UDP"); 01614 gtk_combo_box_append_text(GTK_COMBO_BOX(p_protocol), "TCP"); 01615 gtk_combo_box_set_active(GTK_COMBO_BOX(p_protocol), 0); 01616 gtk_table_attach_defaults (GTK_TABLE (table), p_protocol, 1, 2, 4, 5); 01617 gtk_widget_show (p_protocol); 01618 01619 /* Signal handling for buttons on Remove PDC Window */ 01620 g_signal_connect_swapped (valdbutton, "clicked", G_CALLBACK (remove_pdc_validation), valdbutton); 01621 g_signal_connect_swapped (help_button, "clicked", G_CALLBACK (ipdc_help), NULL); 01622 01623 /* This makes it so the button is the default. */ 01624 gtk_widget_set_can_default (valdbutton, TRUE); 01625 gtk_widget_set_can_default (help_button, TRUE); 01626 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (new_window)->action_area), valdbutton, TRUE, TRUE, 0); 01627 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (new_window)->action_area), help_button, TRUE, TRUE, 0); 01628 01629 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01630 gtk_widget_grab_default (valdbutton); 01631 gtk_widget_show (valdbutton); 01632 gtk_widget_grab_default (help_button); 01633 gtk_widget_show (help_button); 01634 } 01635 01636 g_signal_connect_swapped (close_button, "clicked", G_CALLBACK (gtk_widget_destroy), new_window); 01637 gtk_widget_set_can_default (close_button, TRUE); 01638 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (new_window)->action_area), close_button, TRUE, TRUE, 0); 01639 gtk_widget_grab_default (close_button); 01640 gtk_widget_show (close_button); 01641 01642 /* Finally show the new_window */ 01643 gtk_widget_show (new_window); 01644 };

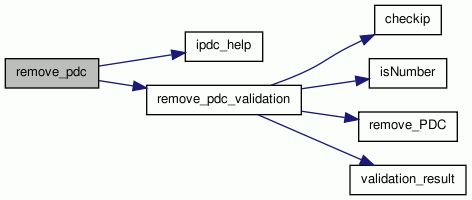

Here is the call graph for this function:
Here is the caller graph for this function:
| int remove_pdc_validation | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |
Definition at line 756 of file ipdcGui.c.
References checkip(), isNumber(), new_window, p_ip, p_port, p_protocol, remove_PDC(), and validation_result().
Referenced by remove_pdc().
00757 { 00758 /* local variables */ 00759 int ret; 00760 const char *text, *text1, *text2; 00761 char *errmsg1, ip[20], tmp[6]; 00762 00763 /* Get the text entries for remove source device by user */ 00764 text = gtk_entry_get_text(GTK_ENTRY(p_ip)); 00765 text1 = gtk_entry_get_text(GTK_ENTRY(p_port)); 00766 text2 = gtk_combo_box_get_active_text(GTK_COMBO_BOX(p_protocol)); 00767 memset(ip,'\0',20); 00768 strcat(ip, text); 00769 strcpy (tmp, text2); 00770 00771 if(!isNumber((char *)text) && (atoi(text1) < 1500 || (atoi(text1) > 65535))) /* Check text_box entry for valid port or not? */ 00772 { 00773 errmsg1 = "\tPlease enter valid value for destination device Port\t\n"; 00774 validation_result (errmsg1); /* Show the unsuccess message to user */ 00775 return 0; 00776 } 00777 else if(!checkip(ip)) /* Check text_box entry for valid IP Address or not? */ 00778 { 00779 errmsg1 = "\tPlease enter valid IP Addess of destination device\t\n"; 00780 validation_result (errmsg1); /* Show the unsuccess message to user */ 00781 return 0; 00782 } 00783 else /* Only if all the text_box entries were right */ 00784 { 00785 /* Call remove_PDC() to remove PDC device entry as well as objects if it presents */ 00786 ret = remove_PDC((char *)text, (char *)text1, (char *)text2); 00787 if (ret == 0) 00788 { 00789 /* Close/destroy the remove PDC window */ 00790 gtk_widget_destroy (new_window); 00791 00792 errmsg1 = "\tDestination device successfully removed\t\n"; 00793 validation_result (errmsg1); /* Show the success message to user */ 00794 return 1; 00795 } 00796 else 00797 { 00798 errmsg1 = "\t\tEntered destination device not found\t\t\n"; 00799 validation_result (errmsg1); /* Show the unsuccess message to user */ 00800 return 0; 00801 } 00802 } 00803 };

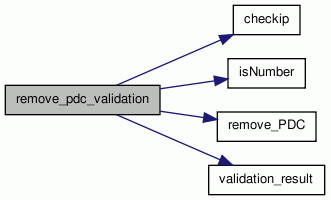

Here is the call graph for this function:
Here is the caller graph for this function:
| int validation_pdc_detail | ( | GtkButton * | button, | |
| gpointer | udata | |||
| ) |
Definition at line 429 of file ipdcGui.c.
References _ChData::add_pdc_button, _ChData::add_pmu_button, checkip(), _ChData::cmd_cfg_button, _ChData::cmd_data_off_button, _ChData::cmd_data_on_button, data, dbserver_ip, _ChData::display_conn_table_button, _ChData::enter_pdc_detail_menuitem, fp_updc, isNumber(), p_id, p_ip, p_tcp, p_udp, pdc_detail_window, _ChData::pdc_details_menuitem, PDC_IDCODE, recreate_cfg_objects(), _ChData::remove_pdc_button, _ChData::remove_pmu_button, setup(), TCPPORT, UDPPORT, and validation_result().
Referenced by fill_pdc_details().
00430 { 00431 /* local variables */ 00432 char *errmsg1, ip[20]; 00433 const char *text, *text1, *text2, *text3; 00434 00435 /* Get the text entries filled by user */ 00436 text = gtk_entry_get_text(GTK_ENTRY(p_id)); 00437 text1 = gtk_entry_get_text(GTK_ENTRY(p_udp)); 00438 text2 = gtk_entry_get_text(GTK_ENTRY(p_tcp)); 00439 text3 = gtk_entry_get_text(GTK_ENTRY(p_ip)); 00440 memset(ip,'\0',20); 00441 strcat(ip, text3); 00442 00443 if (!isNumber((char *)text)) /* Check text_box entry for valid integer or not? */ 00444 { 00445 errmsg1 = "\tPlease enter valid value for iPDC ID code\t\n"; 00446 validation_result (errmsg1); /* Show the unsuccess message to user */ 00447 return 0; 00448 } 00449 else if(text1 != NULL && (atoi(text1) < 2000 || (atoi(text1) > 65535))) /* Check text_box entry for valid port number or not? */ 00450 { 00451 errmsg1 = "\tPlease enter valid value for iPDC UDP Port\t\n"; 00452 validation_result (errmsg1); /* Show the unsuccess message to user */ 00453 return 0; 00454 } 00455 else if((text2 != NULL) && ((atoi(text2) < 2000 || (atoi(text2) > 65535)) || (atoi(text2) == atoi(text1)))) /* TCP port should not match with UDP */ 00456 { 00457 errmsg1 = "\tPlease enter valid value for iPDC TCP Port,\nand it should be other then UDP Port"; 00458 validation_result (errmsg1); /* Show the unsuccess message to user */ 00459 return 0; 00460 } 00461 else if(!checkip(ip)) /* Check text_box entry for valid IP Address or not? */ 00462 { 00463 errmsg1 = "Please enter valid IP Addess for iPDC Database Server\n"; 00464 validation_result (errmsg1); /* Show the unsuccess message to user */ 00465 return 0; 00466 } 00467 else /* Only if all the text_box entries were right */ 00468 { 00469 FILE *fp_updc; 00470 00471 /* Open the file "pdc.txt" and write all the enterd informations */ 00472 fp_updc = fopen ("pdc.txt","w"); 00473 fputs(text, fp_updc); 00474 fputc('\n',fp_updc); 00475 PDC_IDCODE = atoi(text); 00476 00477 fputs(text1, fp_updc); 00478 fputc('\n',fp_updc); 00479 UDPPORT = atoi(text1); 00480 00481 TCPPORT = atoi(text2); 00482 fputs(text2, fp_updc); 00483 fputc('\n',fp_updc); 00484 00485 fputs(text3, fp_updc); 00486 strcpy(dbserver_ip, (char *) text3); 00487 fclose(fp_updc); 00488 00489 /* Close/destroy the pdc_detail_window */ 00490 gtk_widget_destroy (pdc_detail_window); 00491 00492 /* Enable all (mentioned) buttons on main ipdc window */ 00493 gtk_widget_set_sensitive(GTK_WIDGET(data->add_pmu_button), TRUE); 00494 gtk_widget_set_sensitive(GTK_WIDGET(data->remove_pmu_button), TRUE); 00495 gtk_widget_set_sensitive(GTK_WIDGET(data->cmd_data_off_button), TRUE); 00496 gtk_widget_set_sensitive(GTK_WIDGET(data->cmd_data_on_button), TRUE); 00497 gtk_widget_set_sensitive(GTK_WIDGET(data->cmd_cfg_button), TRUE); 00498 gtk_widget_set_sensitive(GTK_WIDGET(data->add_pdc_button), TRUE); 00499 gtk_widget_set_sensitive(GTK_WIDGET(data->remove_pdc_button), TRUE); 00500 gtk_widget_set_sensitive(GTK_WIDGET(data->display_conn_table_button), TRUE); 00501 gtk_widget_set_sensitive(GTK_WIDGET(data->pdc_details_menuitem), TRUE); 00502 00503 /* Disable the menuitem for iPDC details entries */ 00504 gtk_widget_set_sensitive(GTK_WIDGET(data->enter_pdc_detail_menuitem), FALSE); 00505 00506 /* setup() call to stablish the connections at iPDC restart */ 00507 recreate_cfg_objects(); 00508 setup(); 00509 00510 errmsg1 = "\t\tiPDC Setup Successfully Done\t\t\n"; 00511 validation_result (errmsg1); /* Show the success message to user */ 00512 return 1; 00513 } 00514 };
Here is the call graph for this function:
Here is the caller graph for this function:
| void validation_result | ( | char * | msg | ) |
Definition at line 343 of file ipdcGui.c.
Referenced by add_pmu_validation(), cmd_or_remove_pmu_validation(), fill_pdc_details(), new_pdc_validation(), remove_pdc_validation(), and validation_pdc_detail().
00344 { 00345 /* local variables */ 00346 GtkWidget *val_dialog; 00347 00348 /* Create a new about dialog to displaying the status message of last performed operation. */ 00349 val_dialog = gtk_about_dialog_new (); 00350 00351 /* Define the diffrent properties of val_dialog. */ 00352 gtk_about_dialog_set_program_name ((GtkAboutDialog *)val_dialog, " "); 00353 gtk_about_dialog_set_comments ((GtkAboutDialog *)val_dialog, msg); 00354 00355 /* Ensure that the dialog box is destroyed when the user responds */ 00356 g_signal_connect_swapped (val_dialog, "response", G_CALLBACK (gtk_widget_destroy), val_dialog); 00357 00358 /* Finally show the val_dialog. */ 00359 gtk_widget_show_all (val_dialog); 00360 };

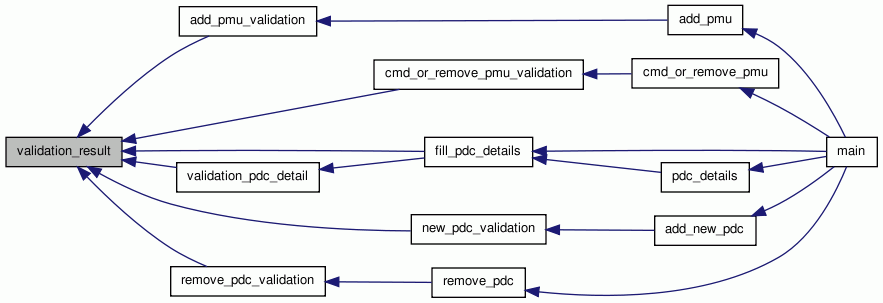

Here is the caller graph for this function:
