align_sort.h File Reference
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | TimeStampBuffer |
| struct | pmupdc_id_list |
Defines | |
| #define | MAXTSB 5 |
Functions | |
| void | time_align (struct data_frame *df) |
| void | assign_df_to_TSB (struct data_frame *df, int index) |
| void | dispatch (int index) |
| void | sort_data_inside_TSB (int index) |
| void | clear_TSB (int index) |
| int | create_dataframe (int index) |
| int | create_cfgframe () |
Variables | |
| int | front |
| int | rear |
| struct TimeStampBuffer | TSB [MAXTSB] |
Define Documentation
| #define MAXTSB 5 |
Definition at line 30 of file align_sort.h.
Referenced by time_align().
Function Documentation
| void assign_df_to_TSB | ( | struct data_frame * | df, | |
| int | index | |||
| ) |
Definition at line 168 of file align_sort.c.
References cfgfirst, cfg_frame::cfgnext, copy_cbyc(), data_frame::dnext, TimeStampBuffer::first_data_frame, fp_log, data_frame::fracsec, cfg_frame::fracsec, TimeStampBuffer::fracsec, free_dataframe_object(), data_frame::idcode, cfg_frame::idcode, pmupdc_id_list::idcode, TimeStampBuffer::idlist, ncmp_cbyc(), pmupdc_id_list::nextid, cfg_frame::num_pmu, pmupdc_id_list::num_pmu, data_frame::soc, cfg_frame::soc, TimeStampBuffer::soc, to_intconvertor(), and TSB.
Referenced by time_align().
00168 { 00169 00170 fprintf(fp_log,"Inside assign_df_to_TSB()\n"); 00171 /* Check if the TSB is used for the first time. If so we need to 00172 allocate memory to its member variables */ 00173 if(TSB[index].soc == NULL) { // 1 if 00174 00175 struct cfg_frame *temp_cfg = cfgfirst; 00176 00177 TSB[index].soc = malloc(5); 00178 TSB[index].fracsec = malloc(5); 00179 00180 memset(TSB[index].soc,'\0',5); 00181 memset(TSB[index].fracsec,'\0',5); 00182 00183 copy_cbyc((unsigned char *)TSB[index].soc,df->soc,4); 00184 copy_cbyc((unsigned char *)TSB[index].fracsec,df->fracsec,4); 00185 00186 TSB[index].first_data_frame = df; /* Assign df to the 'first_data_frame' in the data frame linked list of TSB[index] */ 00187 00188 /* Now we need to store the pmu/pdc id in the pmupdc_id_list that would be required while sorting */ 00189 struct pmupdc_id_list *temp_pmuid; 00190 while(temp_cfg != NULL) { 00191 00192 /* Create a node of the type 'pmupdc_id_list' and copy the pmu/pde id from the cfg to it */ 00193 struct pmupdc_id_list *pmuid = malloc(sizeof(struct pmupdc_id_list)); 00194 pmuid->idcode = malloc(3); 00195 memset(pmuid->idcode,'\0',3); 00196 copy_cbyc((unsigned char *)pmuid->idcode,temp_cfg->idcode,2); 00197 pmuid->num_pmu = to_intconvertor(temp_cfg->num_pmu); 00198 pmuid->nextid = NULL; 00199 00200 if(TSB[index].idlist == NULL) { /* Assign the pmuid to the idlist as it is the first id in the list */ 00201 00202 TSB[index].idlist = temp_pmuid = pmuid; 00203 00204 } else { 00205 00206 temp_pmuid->nextid = pmuid; 00207 temp_pmuid = pmuid; 00208 00209 } 00210 00211 temp_cfg = temp_cfg->cfgnext; 00212 } // while ends . A pmu/pdc id list is created for the TSB[index] 00213 00214 } else { // 1 if else 00215 00216 struct cfg_frame *temp_cfg = cfgfirst; 00217 if(TSB[index].first_data_frame == NULL) { // 2 if 00218 00219 /* After TSB[index] is cleared this is the first data frame for it. 00220 The memory for the member variables of TSB[index] has already 00221 been allocated. Hence after dispatch() and clear_TSB() operation 00222 this TSB is to be assigned the data_frame for the first time. */ 00223 00224 copy_cbyc((unsigned char *)TSB[index].soc,df->soc,4); 00225 copy_cbyc((unsigned char *)TSB[index].fracsec,df->fracsec,4); 00226 00227 TSB[index].first_data_frame = df; /* Assign df to the 'first_data_frame' in the data frame linked list of 00228 TSB[index] */ 00229 00230 /* Now we need to store the pmu/pdc id in the pmupdc_id_list 00231 that would be required while sorting */ 00232 struct pmupdc_id_list *temp_pmuid; 00233 while(temp_cfg != NULL) { 00234 00235 /* Create a node of the type 'pmupdc_id_list' and 00236 copy the pmu/pde id from the cfg to it */ 00237 00238 struct pmupdc_id_list *pmuid = malloc(sizeof(struct pmupdc_id_list)); 00239 pmuid->idcode = malloc(3); 00240 memset(pmuid->idcode,'\0',3); 00241 copy_cbyc((unsigned char *)pmuid->idcode,temp_cfg->idcode,2); 00242 pmuid->num_pmu = to_intconvertor(temp_cfg->num_pmu); 00243 pmuid->nextid = NULL; 00244 00245 if(TSB[index].idlist == NULL) { /* Assign the pmuid to the idlist as it is the first id in the list */ 00246 00247 TSB[index].idlist = temp_pmuid = pmuid; 00248 00249 } else { 00250 00251 temp_pmuid->nextid = pmuid; 00252 temp_pmuid = pmuid; 00253 00254 } 00255 00256 temp_cfg = temp_cfg->cfgnext; 00257 } // while ends 00258 00259 } else { // 2 if else 00260 00261 /* Traverse the data frames of TSB[index] and assign the df to 'dnext' of 00262 the last element in the data frame LL.*/ 00263 struct data_frame *temp_df,*check_df; 00264 00265 /* Need to check if df with same idcode and soc is already assigned to 00266 the TSB[index] */ 00267 check_df = TSB[index].first_data_frame; 00268 while(check_df != NULL) { 00269 00270 if(!ncmp_cbyc(check_df->idcode,df->idcode,2)) { 00271 00272 fprintf(fp_log,"Data frame already inside TSB[%d]\n",index); 00273 free_dataframe_object(df); 00274 return; 00275 00276 } else { 00277 00278 check_df = check_df->dnext; 00279 00280 } 00281 } 00282 00283 temp_df = TSB[index].first_data_frame; 00284 while(temp_df->dnext != NULL) { 00285 00286 temp_df = temp_df->dnext; 00287 00288 } 00289 00290 temp_df->dnext = df; 00291 } // 2 if ends 00292 00293 } // 1 if ends 00294 }

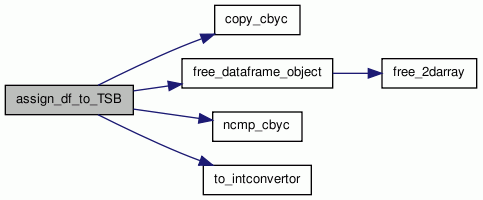

Here is the call graph for this function:

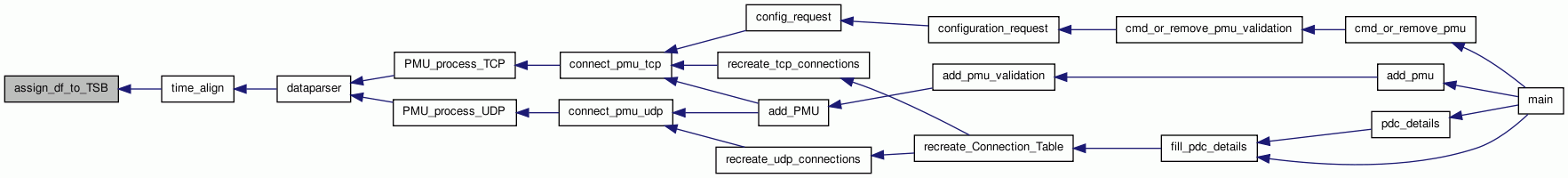

Here is the caller graph for this function:
| void clear_TSB | ( | int | index | ) |
Definition at line 569 of file align_sort.c.
References data_frame::dnext, TimeStampBuffer::first_data_frame, fp_log, data_frame::fracsec, free_dataframe_object(), front, pmupdc_id_list::idcode, TimeStampBuffer::idlist, pmupdc_id_list::nextid, data_frame::soc, to_long_int_convertor(), and TSB.
Referenced by dispatch().
00569 { // 00570 00571 fprintf(fp_log,"Inside clear_TSB()\n"); 00572 unsigned long int tsb_soc,tsb_fracsec; 00573 tsb_soc = to_long_int_convertor((unsigned char *)TSB[front].soc); 00574 tsb_fracsec = to_long_int_convertor((unsigned char *)TSB[front].fracsec); 00575 00576 memset(TSB[index].soc,'\0',5); 00577 memset(TSB[index].fracsec,'\0',5); 00578 00579 struct pmupdc_id_list *t_list,*r_list; 00580 t_list = TSB[index].idlist; 00581 00582 while(t_list != NULL) { 00583 00584 r_list = t_list->nextid; 00585 free(t_list->idcode); 00586 free(t_list); 00587 t_list = r_list; 00588 } 00589 00590 struct data_frame *t,*r; 00591 t = TSB[index].first_data_frame; 00592 00593 while(t != NULL) { 00594 00595 r = t->dnext; 00596 free_dataframe_object(t); 00597 t = r; 00598 } 00599 00600 TSB[index].first_data_frame = NULL; 00601 TSB[index].idlist = NULL; 00602 }
Here is the call graph for this function:

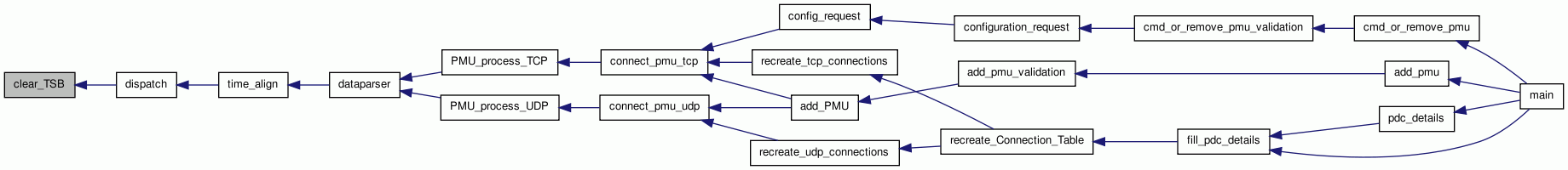

Here is the caller graph for this function:
| int create_cfgframe | ( | ) |
Definition at line 771 of file align_sort.c.
References channel_names::angnames, for_each_pmu::annmr, for_each_pmu::anunit, byte_by_byte_copy(), for_each_pmu::cfg_cnt, cfgfirst, cfgframe, cfg_frame::cfgnext, CFGSYNC, for_each_pmu::cnext, compute_CRC(), copy_cbyc(), for_each_pmu::data_format, cfg_frame::data_rate, dgnames::dg_next, dgnames::dgn, for_each_pmu::dgnmr, for_each_pmu::dgunit, channel_names::first, for_each_pmu::fnom, fp_log, cfg_frame::fracsec, cfg_frame::framesize, i, for_each_pmu::idcode, int_to_ascii_convertor(), long_int_to_ascii_convertor(), cfg_frame::num_pmu, PDC_IDCODE, channel_names::phnames, for_each_pmu::phnmr, for_each_pmu::phunit, cfg_frame::pmu, cfg_frame::soc, for_each_pmu::stn, cfg_frame::time_base, to_intconvertor(), and to_long_int_convertor().
Referenced by UL_tcp_connection(), and UL_udp().
00771 { 00772 00773 fprintf(fp_log,"Inside create_cfgframe()()\n"); 00774 struct cfg_frame *temp_cfg; 00775 int total_frame_size = 0,count = 0; 00776 unsigned char datarate[2],soc[4],fracsec[4]; // hard coded 00777 int total_num_pmu = 0; 00778 unsigned char time_base[4]; 00779 unsigned int fsize,num_pmu,phnmr,dgnmr,annmr; 00780 unsigned int data_rate,temp_data_rate; 00781 unsigned long int sec,frac = 0,temp_tb,tb; 00782 uint16_t chk; 00783 00784 sec = (long int)time (NULL); 00785 long_int_to_ascii_convertor(sec,soc); 00786 long_int_to_ascii_convertor(frac,fracsec); 00787 00788 temp_cfg = cfgfirst; 00789 00790 while(temp_cfg != NULL) { 00791 00792 if(count == 0) { // Copy the soc,fracsec,timebase from the first CFG to the combined CFG 00793 00794 //SEPARATE TIMBASE 00795 tb = to_long_int_convertor(temp_cfg->time_base); 00796 copy_cbyc (time_base,temp_cfg->time_base,4); 00797 00798 data_rate = to_intconvertor(temp_cfg->data_rate); 00799 copy_cbyc (datarate,temp_cfg->data_rate,2); 00800 00801 fsize = to_intconvertor(temp_cfg->framesize); 00802 total_frame_size += fsize; 00803 count++; 00804 // count used to count num of cfg 00805 num_pmu = to_intconvertor(temp_cfg->num_pmu); 00806 total_num_pmu += num_pmu; 00807 temp_cfg = temp_cfg->cfgnext; 00808 00809 } else { 00810 00811 fsize = to_intconvertor(temp_cfg->framesize); 00812 total_frame_size += fsize; 00813 total_frame_size -= 24; 00814 00815 // take the Lowest Timebase 00816 temp_tb = to_long_int_convertor(temp_cfg->time_base); 00817 if(temp_tb < tb) { 00818 00819 copy_cbyc (time_base,temp_cfg->time_base,4); 00820 tb = temp_tb; 00821 00822 } 00823 00824 // take the highest data rate 00825 temp_data_rate = to_intconvertor(temp_cfg->data_rate); 00826 if(temp_data_rate > data_rate) { 00827 00828 copy_cbyc (datarate,temp_cfg->data_rate,2); 00829 data_rate = temp_data_rate; 00830 } 00831 count++; 00832 // count used to count num of cfg 00833 num_pmu = to_intconvertor(temp_cfg->num_pmu); 00834 total_num_pmu += num_pmu; 00835 temp_cfg = temp_cfg->cfgnext; 00836 } 00837 00838 } // While ENDS 00839 00840 cfgframe = malloc((total_frame_size + 1)*sizeof(unsigned char)); // Allocate memory for data frame 00841 cfgframe[total_frame_size] = '\0'; 00842 00843 // Start the Combined CFG frame creation 00844 int z = 0; 00845 byte_by_byte_copy(cfgframe,CFGSYNC,z,2); // SYNC 00846 z += 2; 00847 00848 unsigned char temp[3]; 00849 memset(temp,'\0',3); 00850 int_to_ascii_convertor(total_frame_size,temp); 00851 byte_by_byte_copy(cfgframe,temp,z,2); // FRAME SIZE 00852 z += 2; 00853 00854 unsigned char tmp[2]; 00855 tmp[0]= cfgframe[2]; 00856 tmp[1]= cfgframe[3]; 00857 int newl; 00858 newl = to_intconvertor(tmp); 00859 printf("CFG Frame Len %d\n",newl); 00860 00861 memset(temp,'\0',3); 00862 int_to_ascii_convertor(PDC_IDCODE,temp); 00863 byte_by_byte_copy(cfgframe,temp,z,2); // PDC ID 00864 z += 2; 00865 00866 byte_by_byte_copy(cfgframe,soc,z,4); //SOC 00867 z += 4; 00868 byte_by_byte_copy(cfgframe,fracsec,z,4); //FRACSEC 00869 z += 4; 00870 byte_by_byte_copy(cfgframe,time_base,z,4); //TIMEBASE 00871 z += 4; 00872 00873 memset(temp,'\0',3); 00874 int_to_ascii_convertor(total_num_pmu,temp); 00875 byte_by_byte_copy(cfgframe,temp,z,2); // No of PMU 00876 z += 2; 00877 00878 int i,j; 00879 temp_cfg = cfgfirst; 00880 while(temp_cfg != NULL) { // 1 00881 00882 num_pmu = to_intconvertor(temp_cfg->num_pmu); 00883 j = 0; 00884 00885 while (j < num_pmu) { //2 00886 00887 byte_by_byte_copy(cfgframe,temp_cfg->pmu[j]->stn,z,16); // STN 00888 z += 16; 00889 00890 byte_by_byte_copy(cfgframe,temp_cfg->pmu[j]->idcode,z,2); // IDCODE 00891 z += 2; 00892 00893 byte_by_byte_copy(cfgframe,temp_cfg->pmu[j]->data_format,z,2); // FORMAT 00894 z += 2; 00895 00896 byte_by_byte_copy(cfgframe,temp_cfg->pmu[j]->phnmr,z,2); // PHNMR 00897 z += 2; 00898 00899 byte_by_byte_copy(cfgframe,temp_cfg->pmu[j]->annmr,z,2); // ANNMR 00900 z += 2; 00901 00902 byte_by_byte_copy(cfgframe,temp_cfg->pmu[j]->dgnmr,z,2); // DGNMR 00903 z += 2; 00904 00905 phnmr = to_intconvertor(temp_cfg->pmu[j]->phnmr); 00906 annmr = to_intconvertor(temp_cfg->pmu[j]->annmr); 00907 dgnmr = to_intconvertor(temp_cfg->pmu[j]->dgnmr); 00908 00909 // Copy Phasor Names 00910 if(phnmr != 0){ 00911 00912 for(i = 0; i<phnmr;i++) { 00913 00914 byte_by_byte_copy(cfgframe,temp_cfg->pmu[j]->cnext->phnames[i],z,16); // Phasor Names 00915 z += 16; 00916 } 00917 } 00918 00919 // Copy Analog Names 00920 if(annmr != 0){ 00921 00922 for(i = 0; i<annmr;i++) { 00923 00924 byte_by_byte_copy(cfgframe,temp_cfg->pmu[j]->cnext->angnames[i],z,16); // Analog Names 00925 z += 16; 00926 } 00927 } 00928 00929 // Copy Digital Names 00930 if(dgnmr != 0) { 00931 00932 struct dgnames *temp_dgname = temp_cfg->pmu[j]->cnext->first; 00933 while (temp_dgname != NULL) { 00934 00935 for(i = 0;i<16;i++) { 00936 00937 byte_by_byte_copy(cfgframe,temp_dgname->dgn[i],z,16); // Digital Names 00938 z += 16; 00939 00940 } // Copy 16 channel names of digital word 00941 00942 temp_dgname = temp_dgname->dg_next; 00943 } // Go to next Digital word 00944 00945 } 00946 00947 // PHUNIT 00948 if(phnmr != 0){ 00949 00950 for (i = 0; i<phnmr;i++) { 00951 00952 byte_by_byte_copy(cfgframe,temp_cfg->pmu[j]->phunit[i],z,4); // PHUNIT 00953 z += 4; 00954 } 00955 } 00956 00957 // ANUNIT 00958 if(annmr != 0){ 00959 00960 for (i = 0; i<annmr;i++) { 00961 00962 byte_by_byte_copy(cfgframe,temp_cfg->pmu[j]->anunit[i],z,4); // ANUNIT 00963 z += 4; 00964 00965 } 00966 } 00967 00968 // DGUNIT 00969 if(dgnmr != 0){ 00970 00971 for (i = 0; i<dgnmr;i++) { 00972 00973 byte_by_byte_copy(cfgframe,temp_cfg->pmu[j]->dgunit[i],z,4); // DGUNIT 00974 z += 4; 00975 } 00976 00977 } 00978 00979 byte_by_byte_copy(cfgframe,temp_cfg->pmu[j]->fnom,z,2); // FNOM 00980 z += 2; 00981 00982 byte_by_byte_copy(cfgframe,temp_cfg->pmu[j]->cfg_cnt,z,2); // CFGCNT 00983 z += 2; 00984 00985 j++; // index for pmu_num 00986 00987 } // while 2 00988 00989 temp_cfg = temp_cfg->cfgnext; // Take next CFG 00990 00991 } // while 1 00992 00993 00994 byte_by_byte_copy(cfgframe,datarate,z,2); // DATA RATE 00995 z += 2; 00996 00997 chk = compute_CRC(cfgframe,z); 00998 cfgframe[z++] = (chk >> 8) & ~(~0<<8); /* CHKSUM high byte; */ 00999 cfgframe[z++] = (chk ) & ~(~0<<8); /* CHKSUM low byte; */ 01000 return z; 01001 }

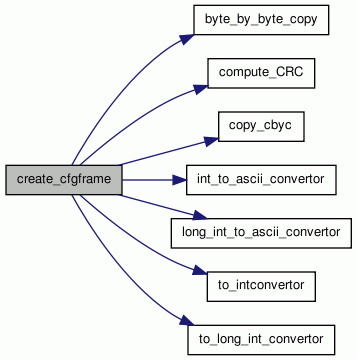

Here is the call graph for this function:
Here is the caller graph for this function:
| int create_dataframe | ( | int | index | ) |
Definition at line 611 of file align_sort.c.
References data_for_each_pmu::analog, format::analog, data_for_each_pmu::annmr, byte_by_byte_copy(), compute_CRC(), dataframe, DATASYNC, data_for_each_pmu::dfreq, data_for_each_pmu::dgnmr, data_for_each_pmu::digital, data_frame::dnext, data_frame::dpmu, TimeStampBuffer::first_data_frame, data_for_each_pmu::fmt, fp_log, data_frame::fracsec, data_frame::framesize, data_for_each_pmu::freq, format::freq, i, data_frame::idcode, int_to_ascii_convertor(), data_frame::num_pmu, PDC_IDCODE, format::phasor, data_for_each_pmu::phasors, data_for_each_pmu::phnmr, data_frame::soc, data_for_each_pmu::stat, to_intconvertor(), and TSB.
Referenced by dispatch().
00611 { 00612 00613 fprintf(fp_log,"Inside create_dataframe()\n"); 00614 int total_frame_size = 0; 00615 unsigned char temp[3]; 00616 struct data_frame *temp_df; 00617 unsigned int fsize; 00618 uint16_t chk; 00619 00620 temp_df = TSB[index].first_data_frame; 00621 00622 while(temp_df != NULL) { 00623 00624 fsize = to_intconvertor(temp_df->idcode); 00625 fsize = to_intconvertor(temp_df->framesize); 00626 total_frame_size = total_frame_size + fsize; 00627 total_frame_size -= 16; // skip SYNC + FRAMESIZE + idcode + soc + fracsec + checksum 00628 temp_df = temp_df->dnext; 00629 } 00630 00631 total_frame_size = total_frame_size + 18/* SYNC + FRAMESIZE + idcode + soc + fracsec + checksum + outer stat */; 00632 00633 dataframe = malloc((total_frame_size + 1)*sizeof(char)); // Allocate memory for data frame 00634 if(!dataframe) { 00635 00636 fprintf(fp_log,"No enough memory for dataframe\n"); 00637 } 00638 dataframe[total_frame_size] = '\0'; 00639 00640 // Start the data frame creation 00641 int z = 0; 00642 byte_by_byte_copy(dataframe,DATASYNC,z,2); // SYNC 00643 z += 2; 00644 00645 memset(temp,'\0',3); 00646 int_to_ascii_convertor(total_frame_size,temp); 00647 byte_by_byte_copy(dataframe,temp,z,2); // FRAME SIZE 00648 z += 2; 00649 00650 memset(temp,'\0',3); 00651 int_to_ascii_convertor(PDC_IDCODE,temp); 00652 byte_by_byte_copy(dataframe,temp,z,2); // PDC ID 00653 z += 2; 00654 00655 byte_by_byte_copy(dataframe,(unsigned char *)TSB[index].soc,z,4); //SOC 00656 z += 4; 00657 byte_by_byte_copy(dataframe,(unsigned char *)TSB[index].fracsec,z,4); //FRACSEC 00658 z += 4; 00659 00660 unsigned char stat[2]; //Outer Stat 00661 stat[0] = 0x00; 00662 stat[1] = 0x00; 00663 byte_by_byte_copy(dataframe,stat,z,2); //outer stat 00664 z += 2; 00665 00666 temp_df = TSB[index].first_data_frame; 00667 while(temp_df != NULL) { // 1 00668 00669 int j = 0; 00670 while(j < temp_df->num_pmu) { // 2 00671 00672 if(temp_df->dpmu[j]->stat[1] == 0x0f) { 00673 // Copy STAT 00674 00675 byte_by_byte_copy(dataframe,temp_df->dpmu[j]->stat,z,2); // STAT 00676 z += 2; 00677 j++; 00678 continue; 00679 } 00680 00681 //Copy STAT 00682 byte_by_byte_copy(dataframe,temp_df->dpmu[j]->stat,z,2); // STAT 00683 00684 z += 2; 00685 00686 int i = 0; 00687 //Copy Phasors 00688 if(temp_df->dpmu[j]->phnmr != 0) { 00689 if(temp_df->dpmu[j]->fmt->phasor == '1') { 00690 while(i < temp_df->dpmu[j]->phnmr) { 00691 00692 byte_by_byte_copy(dataframe,temp_df->dpmu[j]->phasors[i],z,8); // Phasors 00693 z += 8; 00694 i++; 00695 } 00696 } else { 00697 while(i < temp_df->dpmu[j]->phnmr) { 00698 00699 byte_by_byte_copy(dataframe,temp_df->dpmu[j]->phasors[i],z,4); // Phasors 00700 z += 4; 00701 i++; 00702 } 00703 } 00704 00705 } 00706 //Copy FREQ 00707 if(temp_df->dpmu[j]->fmt->freq == '1') { 00708 00709 byte_by_byte_copy(dataframe,temp_df->dpmu[j]->freq,z,4); // FREQ 00710 z += 4; 00711 byte_by_byte_copy(dataframe,temp_df->dpmu[j]->dfreq,z,4); // FREQ 00712 z += 4; 00713 00714 } else { 00715 byte_by_byte_copy(dataframe,temp_df->dpmu[j]->freq,z,2); // FREQ 00716 z += 2; 00717 byte_by_byte_copy(dataframe,temp_df->dpmu[j]->dfreq,z,2); // FREQ 00718 z += 2; 00719 00720 } 00721 00722 // Copy Analogs 00723 if(temp_df->dpmu[j]->annmr != 0) { 00724 if(temp_df->dpmu[j]->fmt->analog == '1') { 00725 00726 for(i = 0; i<temp_df->dpmu[j]->annmr; i++){ 00727 00728 byte_by_byte_copy(dataframe,temp_df->dpmu[j]->analog[i],z,4); // ANALOGS 00729 z += 4; 00730 } 00731 } else { 00732 00733 for(i = 0; i<temp_df->dpmu[j]->annmr; i++){ 00734 00735 byte_by_byte_copy(dataframe,temp_df->dpmu[j]->analog[i],z,2); // ANALOGS 00736 z += 2; 00737 } 00738 } 00739 } 00740 //Copy DIGITAL 00741 i = 0; 00742 if(temp_df->dpmu[j]->dgnmr != 0) { 00743 while(i < temp_df->dpmu[j]->dgnmr) { 00744 00745 byte_by_byte_copy(dataframe,temp_df->dpmu[j]->digital[i],z,2); // DIGITAL 00746 z += 2; 00747 i++; 00748 } 00749 } 00750 j++; 00751 } // 2 while 00752 00753 temp_df = temp_df->dnext; 00754 } // 1 while 00755 // Attach a checksum 00756 00757 chk = compute_CRC(dataframe,z); 00758 dataframe[z++] = (chk >> 8) & ~(~0<<8); /* CHKSUM high byte; */ 00759 dataframe[z++] = (chk ) & ~(~0<<8); /* CHKSUM low byte; */ 00760 00761 return z; 00762 }

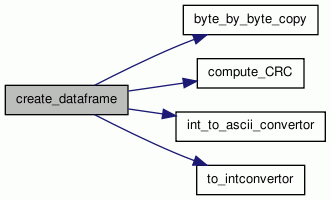

Here is the call graph for this function:

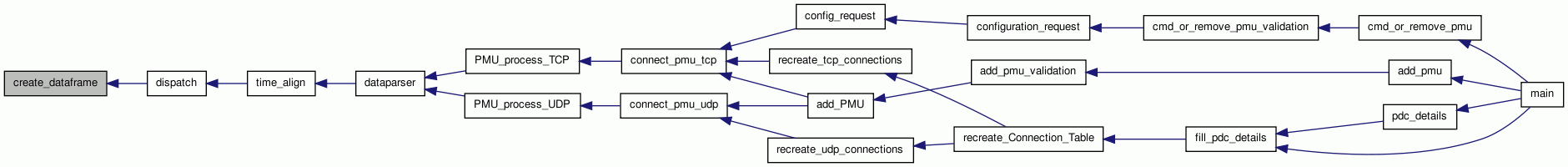

Here is the caller graph for this function:
| void dispatch | ( | int | index | ) |
Definition at line 301 of file align_sort.c.
References clear_TSB(), Upper_Layer_Details::config_change, create_dataframe(), dataframe, fp_log, mutex_Upper_Layer_Details, Upper_Layer_Details::next, Upper_Layer_Details::pdc_addr, Upper_Layer_Details::port, Upper_Layer_Details::sockfd, sort_data_inside_TSB(), TCPPORT, Upper_Layer_Details::tcpup, Upper_Layer_Details::thread_id, UDPPORT, Upper_Layer_Details::UL_data_transmission_off, Upper_Layer_Details::UL_upper_pdc_cfgsent, and ULfirst.
Referenced by time_align().
00301 { 00302 00303 int size,flag = 0; 00304 fprintf(fp_log,"Inside dispatch()\n"); 00305 sort_data_inside_TSB(index); 00306 dataframe = NULL; 00307 pthread_mutex_lock(&mutex_Upper_Layer_Details); 00308 struct Upper_Layer_Details *temp_pdc = ULfirst; 00309 00310 while(temp_pdc != NULL ) { 00311 00312 if((temp_pdc->UL_upper_pdc_cfgsent == 1) && (temp_pdc->UL_data_transmission_off == 0)) { 00313 00314 if(flag == 0) { 00315 00316 size = create_dataframe(index); 00317 flag = 1; 00318 } 00319 00320 if(temp_pdc->config_change == 1) { 00321 00322 dataframe[14] = 0x04; 00323 dataframe[15] = 0x00; 00324 00325 } else { 00326 00327 dataframe[14] = 0x00; 00328 dataframe[15] = 0x00; 00329 00330 } 00331 00332 if(temp_pdc->port == UDPPORT) { 00333 00334 if (sendto(temp_pdc->sockfd,dataframe, size, 0, 00335 (struct sockaddr *)&temp_pdc->pdc_addr,sizeof(temp_pdc->pdc_addr)) == -1) 00336 perror("sendto"); 00337 else fprintf(fp_log,"\nDispatched toUPDC "); 00338 00339 00340 } else if((temp_pdc->port == TCPPORT) && (temp_pdc->tcpup == 1)) { 00341 00342 if(send(temp_pdc->sockfd,dataframe,size, 0)== -1) { 00343 perror("send"); 00344 printf("TCP connection closed\n"); 00345 temp_pdc->tcpup = 0; 00346 pthread_cancel(temp_pdc->thread_id); 00347 } 00348 } 00349 } 00350 temp_pdc = temp_pdc->next; 00351 } 00352 pthread_mutex_unlock(&mutex_Upper_Layer_Details); 00353 if(dataframe != NULL) free(dataframe); 00354 00355 clear_TSB(index); 00356 }
Here is the call graph for this function:

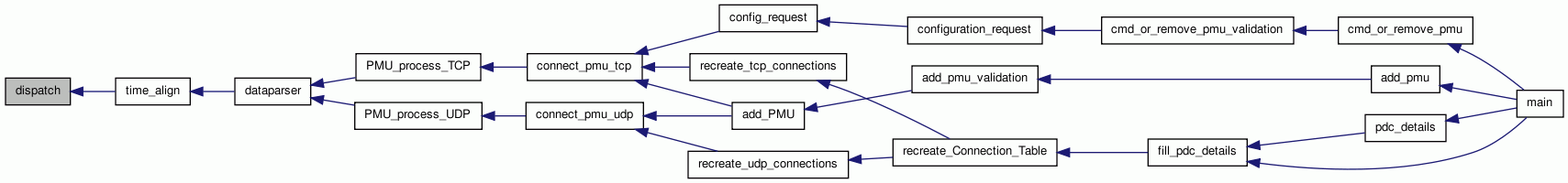

Here is the caller graph for this function:
| void sort_data_inside_TSB | ( | int | index | ) |
Definition at line 364 of file align_sort.c.
References copy_cbyc(), data_frame::dnext, data_frame::dpmu, TimeStampBuffer::first_data_frame, fp_log, TimeStampBuffer::fracsec, data_frame::fracsec, data_frame::framesize, i, pmupdc_id_list::idcode, data_frame::idcode, TimeStampBuffer::idlist, int_to_ascii_convertor(), ncmp_cbyc(), pmupdc_id_list::nextid, data_frame::num_pmu, pmupdc_id_list::num_pmu, TimeStampBuffer::soc, data_frame::soc, data_for_each_pmu::stat, to_intconvertor(), and TSB.
Referenced by dispatch().
00364 { 00365 00366 fprintf(fp_log,"sort_data_inside_TSB()\n"); 00367 struct pmupdc_id_list *temp_list; 00368 struct data_frame *prev_df,*curr_df,*sorted_df,*r_df,*s_df,*last_df,*p_df; 00369 int match = 0; 00370 unsigned int id_check; 00371 00372 /* Pointer track_df will hold the address of the last sorted data_frame object. 00373 Thus we assign to the 'track_df->dnext ' the next sorted data_frame object and so on */ 00374 00375 temp_list = TSB[index].idlist; /* Starting ID required for sorting */ 00376 last_df = TSB[index].first_data_frame; 00377 p_df = TSB[index].first_data_frame; 00378 00379 curr_df = last_df; 00380 sorted_df = prev_df = NULL; 00381 00382 while(temp_list != NULL) { // 1 while 00383 00384 match = 0; 00385 while(curr_df != NULL) { // 2. Traverse the pmu id in TSB and sort 00386 00387 if(!ncmp_cbyc(curr_df->idcode,(unsigned char *)temp_list->idcode,2)){ 00388 00389 match = 1; 00390 break; 00391 00392 } else { 00393 00394 prev_df = curr_df; 00395 curr_df = curr_df->dnext; 00396 00397 } 00398 00399 } // 2 while ends 00400 00401 if (match == 1) { 00402 00403 if(prev_df == NULL) { 00404 00405 r_df = curr_df; 00406 s_df = curr_df->dnext; 00407 if(sorted_df == NULL) { 00408 00409 sorted_df = r_df; 00410 TSB[index].first_data_frame = sorted_df; 00411 } else { 00412 00413 sorted_df->dnext = r_df; 00414 sorted_df = r_df; 00415 } 00416 sorted_df->dnext = s_df ; 00417 curr_df = last_df = s_df; 00418 00419 } else { 00420 00421 if(sorted_df == NULL) { 00422 00423 r_df = curr_df; 00424 s_df = r_df->dnext; 00425 prev_df->dnext = s_df; 00426 sorted_df = r_df; 00427 TSB[index].first_data_frame = sorted_df; 00428 sorted_df->dnext = last_df ; 00429 curr_df = last_df; 00430 prev_df = NULL; 00431 00432 } else {//if(sorted_df != NULL) { 00433 00434 r_df = curr_df; 00435 s_df = r_df->dnext; 00436 prev_df->dnext = s_df; 00437 sorted_df->dnext = r_df; 00438 sorted_df = r_df; 00439 sorted_df->dnext = last_df ; 00440 curr_df = last_df; 00441 prev_df = NULL; 00442 } 00443 } 00444 00445 } else { // id whose data frame didnot arrive No match 00446 00447 char *idcode; 00448 idcode = malloc(3); 00449 00450 struct data_frame *df = malloc(sizeof(struct data_frame)); 00451 if(!df) { 00452 00453 fprintf(fp_log,"Not enough memory df\n"); 00454 } 00455 df->dnext = NULL; 00456 00457 00458 // Allocate memory for df->framesize 00459 df->framesize = malloc(3); 00460 if(!df->framesize) { 00461 00462 fprintf(fp_log,"Not enough memory df->idcode\n"); 00463 exit(1); 00464 } 00465 00466 // Allocate memory for df->idcode 00467 df->idcode = malloc(3); 00468 if(!df->idcode) { 00469 00470 fprintf(fp_log,"Not enough memory df->idcode\n"); 00471 exit(1); 00472 } 00473 00474 // Allocate memory for df->soc 00475 df->soc = malloc(5); 00476 if(!df->soc) { 00477 00478 fprintf(fp_log,"Not enough memory df->soc\n"); 00479 exit(1); 00480 } 00481 00482 // Allocate memory for df->fracsec 00483 df->fracsec = malloc(5); 00484 if(!df->fracsec) { 00485 fprintf(fp_log,"Not enough memory df->fracsec\n"); 00486 exit(1); 00487 } 00488 00489 unsigned int size = (16/* sync,fsize,idcode,soc,fracsec,checksum */ + (temp_list->num_pmu)*2)*sizeof(unsigned char); 00490 00491 df->num_pmu = temp_list->num_pmu ; 00492 //Copy FRAMESIZE 00493 int_to_ascii_convertor(size,df->framesize); 00494 df->framesize[2] = '\0'; 00495 00496 //Copy IDCODE 00497 copy_cbyc (df->idcode,(unsigned char *)temp_list->idcode,2); 00498 df->idcode[2] = '\0'; 00499 00500 //Copy SOC 00501 copy_cbyc (df->soc,(unsigned char *)TSB[index].soc,4); 00502 df->soc[4] = '\0'; 00503 00504 //Copy FRACSEC 00505 copy_cbyc (df->fracsec,(unsigned char *)TSB[index].fracsec,4); 00506 df->fracsec[4] = '\0'; 00507 00508 df->dpmu = malloc(temp_list->num_pmu * sizeof(struct data_for_each_pmu *)); 00509 if(!df->dpmu) { 00510 fprintf(fp_log,"Not enough memory df->dpmu[][]\n"); 00511 exit(1); 00512 } 00513 00514 for (i = 0; i < temp_list->num_pmu; i++) { 00515 df->dpmu[i] = malloc(sizeof(struct data_for_each_pmu)); 00516 } 00517 00518 int j = 0; 00519 // PMU data has not come 00520 while(j < temp_list->num_pmu) { 00521 00522 df->dpmu[j]->stat = malloc(3); 00523 if(!df->dpmu[j]->stat) { 00524 fprintf(fp_log,"Not enough memory for df->dpmu[j]->stat\n"); 00525 } 00526 00527 df->dpmu[j]->stat[0] = 0x00; 00528 df->dpmu[j]->stat[1] = 0x0F; 00529 df->dpmu[j]->stat[2] = '\0'; 00530 j++; 00531 } 00532 00533 if(sorted_df == NULL) { 00534 00535 r_df = df; 00536 sorted_df = r_df; 00537 TSB[index].first_data_frame = sorted_df; 00538 sorted_df->dnext = last_df ; 00539 curr_df = last_df; 00540 prev_df = NULL; 00541 } else { 00542 r_df = df; 00543 sorted_df->dnext = r_df; 00544 sorted_df = r_df; 00545 sorted_df->dnext = last_df ; 00546 curr_df = last_df; 00547 prev_df = NULL; 00548 } 00549 } 00550 00551 temp_list = temp_list->nextid; //go for next ID 00552 00553 } // 1. while ends 00554 00555 p_df = TSB[index].first_data_frame; 00556 while(p_df != NULL){ 00557 00558 id_check = to_intconvertor(p_df->idcode); 00559 p_df = p_df->dnext; 00560 } 00561 }

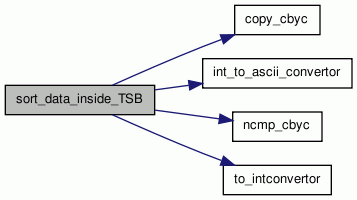

Here is the call graph for this function:

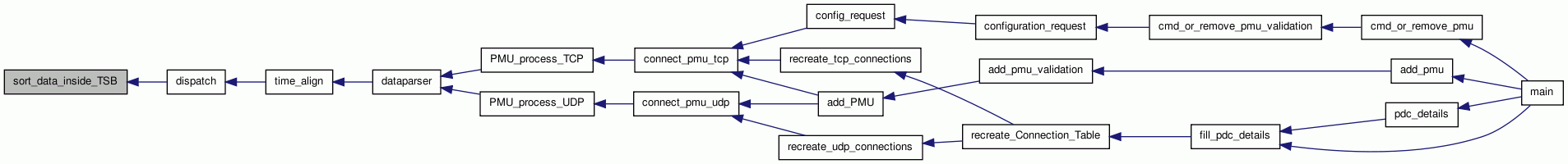

Here is the caller graph for this function:
| void time_align | ( | struct data_frame * | df | ) |
Definition at line 69 of file align_sort.c.
References assign_df_to_TSB(), dispatch(), fp_log, data_frame::fracsec, front, i, MAXTSB, mutex_on_TSB, ncmp_cbyc(), rear, data_frame::soc, to_long_int_convertor(), and TSB.
Referenced by dataparser().
00069 { 00070 00071 int flag = 0; 00072 fprintf(fp_log,"Inside time_align()\n"); 00073 pthread_mutex_lock(&mutex_on_TSB); 00074 if(front == -1) { // TSB is used for the first time 00075 00076 front = rear = 0; 00077 assign_df_to_TSB(df,front); 00078 pthread_mutex_unlock(&mutex_on_TSB); 00079 return; 00080 00081 } else { 00082 00083 unsigned long int df_soc,df_fracsec,tsb_soc,tsb_fracsec; 00084 00085 df_soc = to_long_int_convertor(df->soc); 00086 df_fracsec = to_long_int_convertor(df->fracsec); 00087 tsb_soc = to_long_int_convertor((unsigned char *)TSB[front].soc); 00088 tsb_fracsec = to_long_int_convertor((unsigned char *)TSB[front].fracsec); 00089 00090 if((df_soc < tsb_soc) || ((df_soc == tsb_soc) && (df_fracsec < tsb_fracsec))) { 00091 00092 fprintf(fp_log,"df_soc %ld tsb_soc %ld df_fracsec %ld tsb_fracsec %ld\n",df_soc,tsb_soc,df_fracsec,tsb_fracsec); 00093 fprintf(fp_log,"The Data frame is too old\n"); 00094 pthread_mutex_unlock(&mutex_on_TSB); 00095 return; 00096 } 00097 00098 if(rear >= front) { 00099 for(i = rear; i>= front; i--) { 00100 00101 if(!ncmp_cbyc ((unsigned char *)TSB[i].soc,df->soc,4)) { 00102 00103 if(!ncmp_cbyc ((unsigned char *)TSB[i].fracsec,df->fracsec,3)) { /* 3 bytes is actual fraction of seconds and 1 00104 byte is Time quality */ 00105 flag = 1; 00106 break; 00107 00108 } 00109 00110 } else { 00111 00112 continue; 00113 00114 } //if for soc ends 00115 }// for ends 00116 } else { 00117 00118 for(i = rear; i< front; i++) { 00119 00120 if(!ncmp_cbyc ((unsigned char *)TSB[i].soc,df->soc,4)) { 00121 00122 if(!ncmp_cbyc ((unsigned char *)TSB[i].fracsec,df->fracsec,3)) { /* 3 bytes is actual fraction of seconds and 1 00123 byte is Time quality */ 00124 flag = 1; 00125 break; 00126 } 00127 00128 } else { 00129 00130 continue; 00131 00132 } //if for soc ends 00133 }// for ends 00134 } 00135 00136 } // if other than the front = -1 00137 00138 if(flag) { 00139 00140 fprintf(fp_log,"Matched with TSB[%d]\n",i); 00141 //Assign to existing TSB 00142 assign_df_to_TSB(df,i); 00143 00144 } else { 00145 00146 rear = (rear + 1) % MAXTSB; 00147 00148 if(front == rear) { // All TSB are full. Dispatch the TSB[rear] and use it to assign new df 00149 00150 dispatch(rear); 00151 front = (front + 1) % MAXTSB; 00152 assign_df_to_TSB(df,rear); 00153 00154 } else { 00155 00156 assign_df_to_TSB(df,rear); 00157 00158 } 00159 } 00160 pthread_mutex_unlock(&mutex_on_TSB); 00161 }

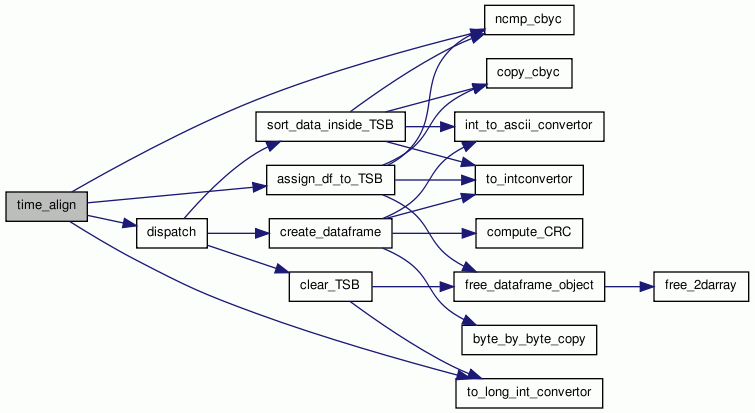

Here is the call graph for this function:

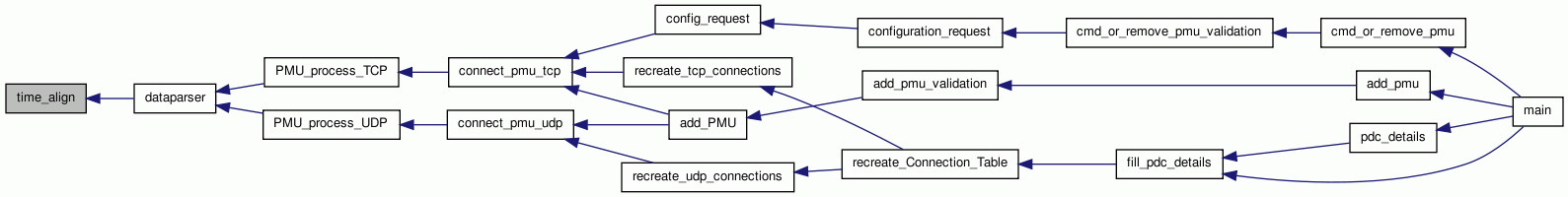

Here is the caller graph for this function:
Variable Documentation
| int front |
Definition at line 36 of file align_sort.h.
| int rear |
Definition at line 36 of file align_sort.h.
| struct TimeStampBuffer TSB[MAXTSB] |
Referenced by assign_df_to_TSB(), clear_TSB(), create_dataframe(), sort_data_inside_TSB(), and time_align().
