CfgGuiFunctions.c File Reference
#include <stdio.h>#include <stdlib.h>#include <string.h>#include <strings.h>#include <netinet/in.h>#include <gtk/gtk.h>#include "PmuGui.h"#include "CfgFunction.h"#include "CfgGuiFunctions.h"

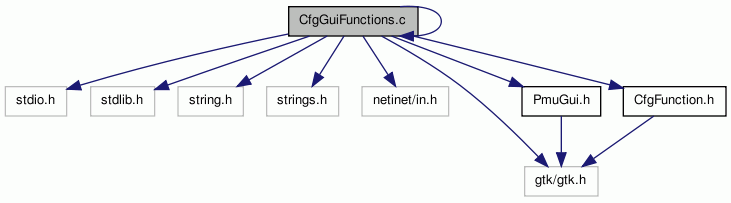

Include dependency graph for CfgGuiFunctions.c:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Functions | |
| int | validation_cfg_create () |

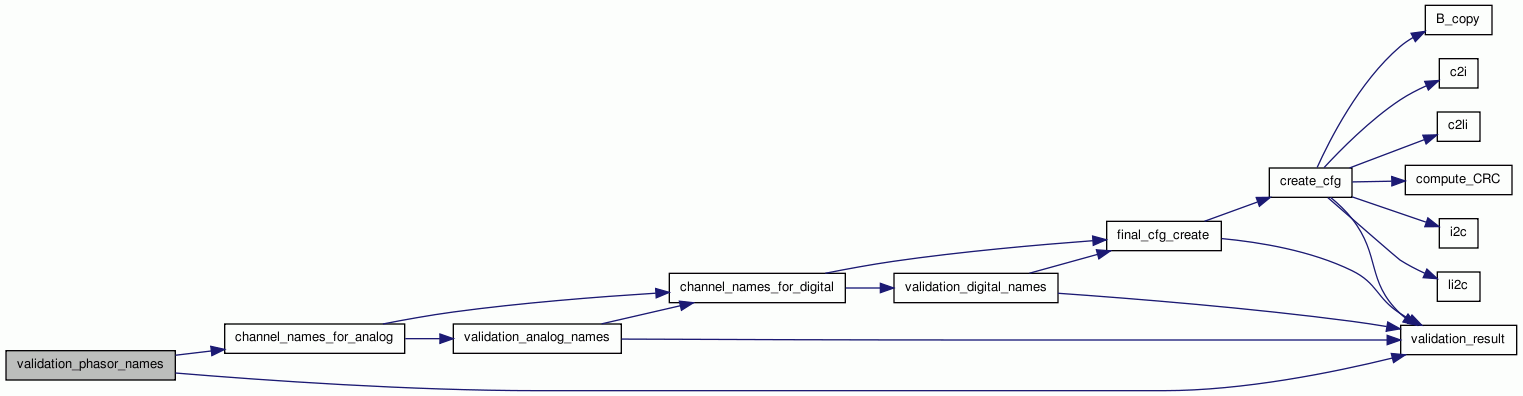

| int | validation_phasor_names (GtkWidget *widget, gpointer udata) |
| int | validation_analog_names (GtkWidget *widget, gpointer udata) |
| int | validation_digital_names (GtkWidget *widget, gpointer udata) |

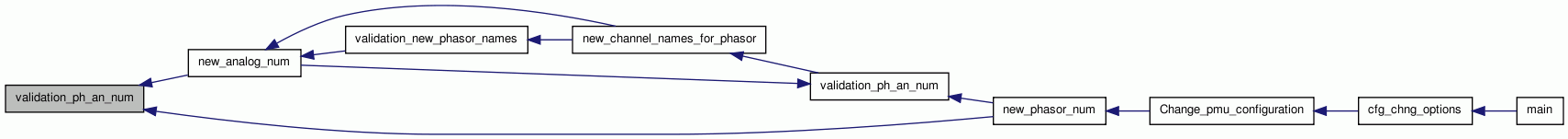

| int | validation_ph_an_num (GtkButton *but, gpointer udata) |
| int | validation_new_phasor_names (GtkWidget *widget, gpointer udata) |
| int | validation_new_analog_names (GtkWidget *widget, gpointer udata) |
| int | validation_new_data_rate (GtkButton *but, gpointer udata) |

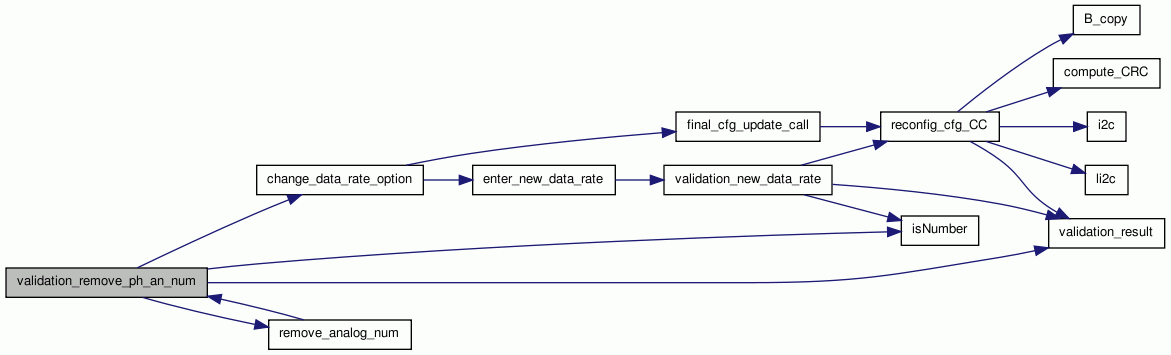

| int | validation_remove_ph_an_num (GtkButton *but, gpointer udata) |
| void | validation_hdr_frm (GtkWidget *widget, gpointer udata) |
| void | cfg_create_function (GtkWidget *widget, gpointer udata) |
| void | channel_names_for_phasor () |
| void | channel_names_for_analog () |
| void | channel_names_for_digital () |
| void | final_cfg_create () |
| void | cfg_chng_options (GtkWidget *widget, gpointer udata) |
| void | cfg_STAT_change (GtkWidget *widget, gpointer udata) |
| void | Change_pmu_configuration (GtkWidget *widget, gpointer udata) |
| void | new_phasor_num (GtkWidget *widget, gpointer udata) |
| void | new_analog_num () |
| void | new_channel_names_for_phasor () |
| void | new_channel_names_for_analog () |
| void | change_data_rate_option () |
| void | enter_new_data_rate (GtkWidget *widget, gpointer udata) |
| void | remove_phasor_num (GtkWidget *widget, gpointer udata) |
| void | remove_analog_num () |
| int | final_cfg_update_call (GtkButton *but, gpointer udata) |
| void | hdr_create_function (GtkWidget *widget, gpointer udata) |
Function Documentation
| void cfg_chng_options | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |
Definition at line 1196 of file CfgGuiFunctions.c.
References CCOptionWin, cfg_STAT_change(), Change_pmu_configuration(), and markup.
Referenced by main().
01197 { 01198 /* local variables */ 01199 GtkWidget *table, *label; 01200 GtkWidget *ID_butn, *PE_butn, *DS_butn; 01201 GtkWidget *PT_butn, *CC_butn, *close_butn; 01202 01203 /* Create a new dialog window for the Configration Modification */ 01204 CCOptionWin = gtk_dialog_new (); 01205 gtk_window_set_title (GTK_WINDOW (CCOptionWin), "Configration Modification"); 01206 gtk_container_set_border_width (GTK_CONTAINER (CCOptionWin), 10); 01207 gtk_widget_set_size_request (CCOptionWin, 400, 430); 01208 01209 /* Create a table of 7 by 3 squares */ 01210 table = gtk_table_new (9, 3, FALSE); 01211 01212 /* Set the spacing to 15 on x and 60 on y */ 01213 gtk_table_set_row_spacings (GTK_TABLE (table), 15); 01214 gtk_table_set_col_spacings (GTK_TABLE (table), 60); 01215 01216 /* Pack the table into the window */ 01217 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(CCOptionWin)->vbox), table, TRUE, TRUE, 0); 01218 gtk_widget_show (table); 01219 01220 label = gtk_label_new (" "); 01221 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b>Change STAT Word</b></span>"); 01222 gtk_label_set_markup (GTK_LABEL (label), markup); 01223 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01224 gtk_widget_show (label); 01225 g_free (markup); 01226 01227 ID_butn = gtk_button_new_with_label ("Set Invalid Data bit"); 01228 gtk_table_attach_defaults (GTK_TABLE (table), ID_butn, 1, 2, 2, 3); 01229 gtk_widget_show (ID_butn); 01230 01231 PE_butn = gtk_button_new_with_label ("Set PMU Error bit"); 01232 gtk_table_attach_defaults (GTK_TABLE (table), PE_butn, 1, 2, 3, 4); 01233 gtk_widget_show (PE_butn); 01234 01235 DS_butn = gtk_button_new_with_label ("Set Data Sorting bit"); 01236 gtk_table_attach_defaults (GTK_TABLE (table), DS_butn, 1, 2, 4, 5); 01237 gtk_widget_show (DS_butn); 01238 01239 PT_butn = gtk_button_new_with_label ("Set PMU Trigger bit"); 01240 gtk_table_attach_defaults (GTK_TABLE (table), PT_butn, 1, 2, 5, 6); 01241 gtk_widget_show (PT_butn); 01242 01243 CC_butn = gtk_button_new_with_label ("Set Configuration Change bit"); 01244 gtk_table_attach_defaults (GTK_TABLE (table), CC_butn, 1, 2, 6, 7); 01245 gtk_widget_show (CC_butn); 01246 01247 label = gtk_label_new (" "); 01248 markup = g_markup_printf_escaped ("<span foreground=\"#333333\" font='8'><b>Note : The Synchronization error handle internaly.</b></span>"); 01249 gtk_label_set_markup (GTK_LABEL (label), markup); 01250 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 8, 9); 01251 gtk_widget_show (label); 01252 g_free (markup); 01253 01254 /* Add a "close" button to the bottom of the dialog */ 01255 close_butn = gtk_button_new_with_label ("close"); 01256 01257 /* Signal handling for all buttons on Window */ 01258 g_signal_connect (CC_butn, "clicked", G_CALLBACK (Change_pmu_configuration), NULL); 01259 g_signal_connect (ID_butn, "clicked", G_CALLBACK (cfg_STAT_change), (gpointer) "a"); 01260 g_signal_connect (PE_butn, "clicked", G_CALLBACK (cfg_STAT_change), (gpointer) "b"); 01261 g_signal_connect (DS_butn, "clicked", G_CALLBACK (cfg_STAT_change), (gpointer) "c"); 01262 g_signal_connect (PT_butn, "clicked", G_CALLBACK (cfg_STAT_change), (gpointer) "d"); 01263 g_signal_connect_swapped (close_butn, "clicked", G_CALLBACK (gtk_widget_destroy), CCOptionWin); 01264 g_signal_connect_swapped (CCOptionWin, "response", G_CALLBACK (gtk_widget_destroy), CCOptionWin); 01265 01266 /* This makes it so the button is the default */ 01267 gtk_widget_set_can_default (close_butn, TRUE); 01268 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (CCOptionWin)->action_area), close_butn, TRUE, TRUE, 0); 01269 01270 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01271 gtk_widget_grab_default (close_butn); 01272 gtk_widget_show (close_butn); 01273 01274 /* Finally show the CCOptionWin */ 01275 gtk_widget_show (CCOptionWin); 01276 };
Here is the call graph for this function:
Here is the caller graph for this function:
| void cfg_create_function | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |

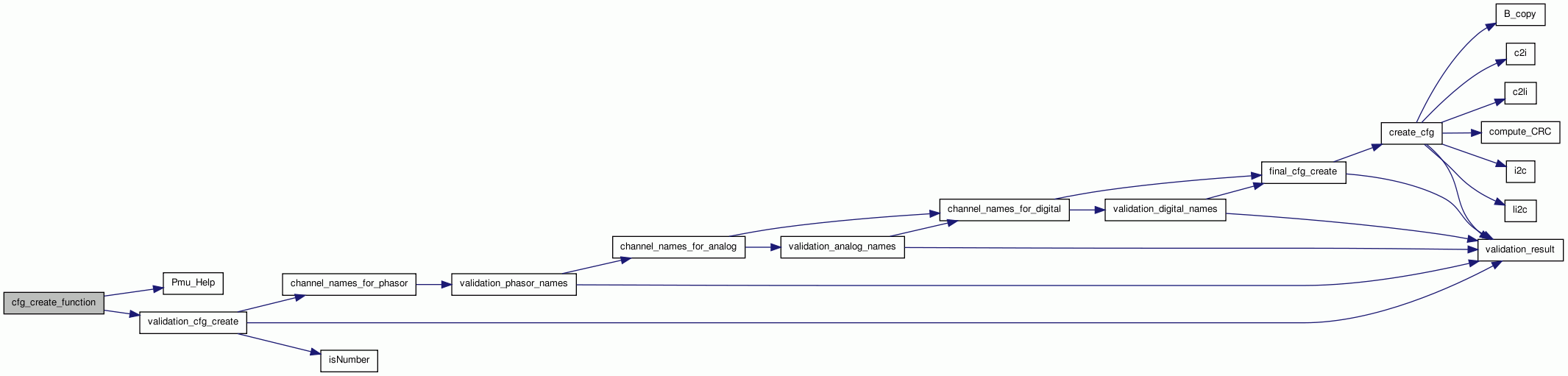

Definition at line 715 of file CfgGuiFunctions.c.
References cfg_setup_window, markup, p_af, p_anNumber, p_dgNumber, p_drate, p_ff, p_id, p_pf, p_phNumber, p_pn, p_stn, Pmu_Help(), and validation_cfg_create().
Referenced by main().
00716 { 00717 /* local variables */ 00718 GtkWidget *table, *label; 00719 GtkWidget *valdbutton, *help_button; 00720 00721 /* Create a new dialog window for the PMU Configuration Setup window */ 00722 cfg_setup_window = gtk_dialog_new (); 00723 g_signal_connect (cfg_setup_window, "destroy", G_CALLBACK (gtk_widget_destroy), cfg_setup_window); 00724 gtk_window_set_title (GTK_WINDOW (cfg_setup_window), "PMU Configuration Setup"); 00725 gtk_container_set_border_width (GTK_CONTAINER (cfg_setup_window), 10); 00726 gtk_widget_set_size_request (cfg_setup_window, 350, 480); 00727 00728 /* Create a table of 11 by 2 squares. */ 00729 table = gtk_table_new (11, 2, FALSE); 00730 00731 /* Set the spacing to 10 on x and 25 on y */ 00732 gtk_table_set_row_spacings (GTK_TABLE (table), 10); 00733 gtk_table_set_col_spacings (GTK_TABLE (table), 25); 00734 00735 /* Pack the table into the window */ 00736 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(cfg_setup_window)->vbox), table, TRUE, TRUE, 0); 00737 gtk_widget_show (table); 00738 00739 /* Add few buttons to the bottom of the dialog */ 00740 valdbutton = gtk_button_new_with_label ("Next"); 00741 help_button = gtk_button_new_with_label ("Help"); 00742 00743 /* This simply creates a grid of toggle buttons on the table */ 00744 label = gtk_label_new (" "); 00745 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b>Enter PMU Configuration Details</b></span>"); 00746 gtk_label_set_markup (GTK_LABEL (label), markup); 00747 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 00748 gtk_widget_show (label); 00749 g_free (markup); 00750 00751 label = gtk_label_new ("PMU ID "); 00752 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 1, 2); 00753 gtk_widget_show (label); 00754 00755 label = gtk_label_new ("Station Name "); 00756 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 2, 3); 00757 gtk_widget_show (label); 00758 00759 label = gtk_label_new ("Frequency Format "); 00760 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 3, 4); 00761 gtk_widget_show (label); 00762 00763 label = gtk_label_new ("Analog Format "); 00764 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 4, 5); 00765 gtk_widget_show (label); 00766 00767 label = gtk_label_new ("Phasor Format "); 00768 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 5, 6); 00769 gtk_widget_show (label); 00770 00771 label = gtk_label_new ("Phasor Notation "); 00772 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 6, 7); 00773 gtk_widget_show (label); 00774 00775 label = gtk_label_new ("Number of Phasors "); 00776 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 7, 8); 00777 gtk_widget_show (label); 00778 00779 label = gtk_label_new ("Number of Analog "); 00780 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 8, 9); 00781 gtk_widget_show (label); 00782 00783 label = gtk_label_new ("Digital Status Word "); 00784 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 9, 10); 00785 gtk_widget_show (label); 00786 00787 label = gtk_label_new ("Data Rate "); 00788 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 10, 11); 00789 gtk_widget_show (label); 00790 00791 /* Create text boxes for user to enter appropriate values */ 00792 p_id = gtk_entry_new(); 00793 gtk_entry_set_max_length ((GtkEntry *)p_id, 5); 00794 gtk_table_attach_defaults (GTK_TABLE (table), p_id, 1, 2, 1, 2); 00795 gtk_widget_show (p_id); 00796 00797 /* Create combo boxe for user with some fixed values */ 00798 p_stn = gtk_entry_new(); 00799 gtk_entry_set_max_length ((GtkEntry *)p_stn, 16); 00800 gtk_table_attach_defaults (GTK_TABLE (table), p_stn, 1, 2, 2, 3); 00801 gtk_widget_show (p_stn); 00802 00803 p_ff = gtk_combo_box_new_text(); 00804 gtk_combo_box_append_text(GTK_COMBO_BOX(p_ff), "Fix Point"); 00805 gtk_combo_box_append_text(GTK_COMBO_BOX(p_ff), "Floating Point"); 00806 gtk_combo_box_set_active(GTK_COMBO_BOX(p_ff), 0); 00807 gtk_table_attach_defaults (GTK_TABLE (table), p_ff, 1, 2, 3, 4); 00808 gtk_widget_show (p_ff); 00809 00810 p_af = gtk_combo_box_new_text(); 00811 gtk_combo_box_append_text(GTK_COMBO_BOX(p_af), "Fix Point"); 00812 gtk_combo_box_append_text(GTK_COMBO_BOX(p_af), "Floating Point"); 00813 gtk_combo_box_set_active(GTK_COMBO_BOX(p_af), 0); 00814 gtk_table_attach_defaults (GTK_TABLE (table), p_af, 1, 2, 4, 5); 00815 gtk_widget_show (p_af); 00816 00817 p_pf = gtk_combo_box_new_text(); 00818 gtk_combo_box_append_text(GTK_COMBO_BOX(p_pf), "Fix Point"); 00819 gtk_combo_box_append_text(GTK_COMBO_BOX(p_pf), "Floating Point"); 00820 gtk_combo_box_set_active(GTK_COMBO_BOX(p_pf), 0); 00821 gtk_table_attach_defaults (GTK_TABLE (table), p_pf, 1, 2, 5, 6); 00822 gtk_widget_show (p_pf); 00823 00824 p_pn = gtk_combo_box_new_text(); 00825 gtk_combo_box_append_text(GTK_COMBO_BOX(p_pn), "Ractangular"); 00826 gtk_combo_box_append_text(GTK_COMBO_BOX(p_pn), "Polar"); 00827 gtk_combo_box_set_active(GTK_COMBO_BOX(p_pn), 0); 00828 gtk_table_attach_defaults (GTK_TABLE (table), p_pn, 1, 2, 6, 7); 00829 gtk_widget_show (p_pn); 00830 00831 p_phNumber = gtk_entry_new(); 00832 gtk_entry_set_max_length ((GtkEntry *)p_phNumber, 2); 00833 gtk_table_attach_defaults (GTK_TABLE (table), p_phNumber, 1, 2, 7, 8); 00834 gtk_widget_show (p_phNumber); 00835 00836 p_anNumber = gtk_entry_new(); 00837 gtk_entry_set_max_length ((GtkEntry *)p_anNumber, 2); 00838 gtk_table_attach_defaults (GTK_TABLE (table), p_anNumber, 1, 2, 8, 9); 00839 gtk_widget_show (p_anNumber); 00840 00841 p_dgNumber = gtk_entry_new(); 00842 gtk_entry_set_max_length ((GtkEntry *)p_dgNumber, 1); 00843 gtk_table_attach_defaults (GTK_TABLE (table), p_dgNumber, 1, 2, 9, 10); 00844 gtk_widget_show (p_dgNumber); 00845 00846 p_drate = gtk_combo_box_new_text(); 00847 gtk_combo_box_append_text(GTK_COMBO_BOX(p_drate), "10"); 00848 gtk_combo_box_append_text(GTK_COMBO_BOX(p_drate), "25"); 00849 gtk_combo_box_append_text(GTK_COMBO_BOX(p_drate), "50"); 00850 gtk_combo_box_append_text(GTK_COMBO_BOX(p_drate), "60"); 00851 gtk_combo_box_set_active(GTK_COMBO_BOX(p_drate), 0); 00852 gtk_table_attach_defaults (GTK_TABLE (table), p_drate, 1, 2, 10, 11); 00853 gtk_widget_show (p_drate); 00854 00855 /* Signal handling for buttons on CFG Setuo Window */ 00856 g_signal_connect_swapped (valdbutton, "clicked", G_CALLBACK (validation_cfg_create), valdbutton); 00857 g_signal_connect_swapped (help_button, "clicked", G_CALLBACK (Pmu_Help), NULL); 00858 g_signal_connect_swapped (cfg_setup_window, "destroy", G_CALLBACK (gtk_widget_destroy), cfg_setup_window); 00859 00860 /* This makes it so the button is the default. */ 00861 gtk_widget_set_can_default (valdbutton, TRUE); 00862 gtk_widget_set_can_default (help_button, TRUE); 00863 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (cfg_setup_window)->action_area), valdbutton, TRUE, TRUE, 0); 00864 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (cfg_setup_window)->action_area), help_button, TRUE, TRUE, 0); 00865 00866 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 00867 gtk_widget_grab_default (valdbutton); 00868 gtk_widget_show (valdbutton); 00869 gtk_widget_grab_default (help_button); 00870 gtk_widget_show (help_button); 00871 00872 /* Finally show the cfg_setup_window */ 00873 gtk_widget_show (cfg_setup_window); 00874 };
Here is the call graph for this function:
Here is the caller graph for this function:
| void cfg_STAT_change | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |
Definition at line 1284 of file CfgGuiFunctions.c.
References CCOptionWin, and validation_result().
Referenced by cfg_chng_options().
01285 { 01286 /* local variables */ 01287 char find_butn[2]; 01288 static const char filename_1[] = "change.bin"; 01289 FILE *file_1; 01290 01291 /* For identifing singnal came from which button? */ 01292 strcpy(find_butn,(char *) udata); 01293 01294 if(!strcmp(find_butn, "a")) 01295 { 01296 file_1 = fopen (filename_1,"w"); 01297 { 01298 fprintf(file_1, "%s", "1"); 01299 } 01300 fclose (file_1); 01301 validation_result("\nSTAT CHANGED\n\nBit 15 of Stat word has been set to 1 for Invalid Data.\t\n"); /* Show the success message to user */ 01302 } 01303 else if(!strcmp(find_butn, "b")) 01304 { 01305 file_1 = fopen (filename_1,"w"); 01306 { 01307 fprintf(file_1, "%s", "2"); 01308 } 01309 fclose (file_1); 01310 validation_result("\nSTAT CHANGED\n\n\nBit 14 of Stat word has been set to 1 for PMU Error.\n"); /* Show the success message to user */ 01311 } 01312 else if(!strcmp(find_butn, "c")) 01313 { 01314 file_1 = fopen (filename_1,"w"); 01315 { 01316 fprintf(file_1, "%s", "3"); 01317 } 01318 fclose (file_1); 01319 validation_result("\nSTAT CHANGED\n\n\nBit 12 of Stat word has been set to 1 for Data Sorting.\n"); /* Show the success message to user */ 01320 } 01321 else if(!strcmp(find_butn, "d")) 01322 { 01323 file_1 = fopen (filename_1,"w"); 01324 { 01325 fprintf(file_1, "%s", "4"); 01326 } 01327 fclose (file_1); 01328 validation_result("\nSTAT CHANGED\n\n\nBit 11 of Stat word has been set to 1 for PMU Trigger Detected.\n"); /* Show the success message to user */ 01329 } 01330 01331 /* Close/destroy the CCOptionWin */ 01332 gtk_widget_destroy(CCOptionWin); 01333 };
Here is the call graph for this function:
Here is the caller graph for this function:

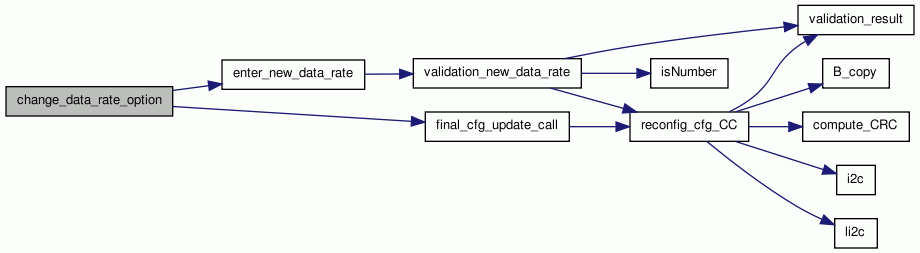

| void change_data_rate_option | ( | ) |

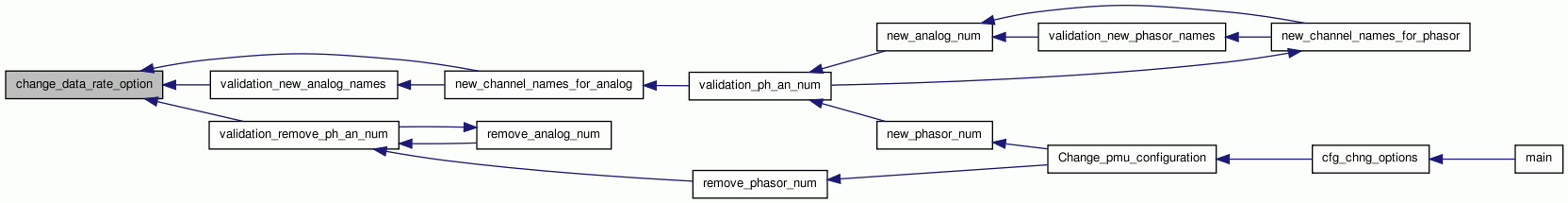

Definition at line 1751 of file CfgGuiFunctions.c.
References CCWin, enter_new_data_rate(), final_cfg_update_call(), and markup.
Referenced by new_channel_names_for_analog(), validation_new_analog_names(), and validation_remove_ph_an_num().
01752 { 01753 /* local variables */ 01754 GtkWidget *table; 01755 GtkWidget *Addbutton, *Removebutton; 01756 GtkWidget *close_butn, *label; 01757 01758 /* Create a new dialog window for PMU Data Rate */ 01759 CCWin = gtk_dialog_new (); 01760 gtk_window_set_title (GTK_WINDOW (CCWin), "PMU Data Rate "); 01761 gtk_container_set_border_width (GTK_CONTAINER (CCWin), 10); 01762 gtk_widget_set_size_request (CCWin, 350, 350); 01763 01764 /* Create a table of 4 by 2 squares. */ 01765 table = gtk_table_new (4, 2, FALSE); 01766 01767 /* Set the spacing to 15 on x and 25 on y */ 01768 gtk_table_set_row_spacings (GTK_TABLE (table), 15); 01769 gtk_table_set_col_spacings (GTK_TABLE (table), 25); 01770 01771 /* Pack the table into the window */ 01772 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(CCWin)->vbox), table, TRUE, TRUE, 0); 01773 gtk_widget_show (table); 01774 01775 label = gtk_label_new (" "); 01776 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b>Data Rate Options</b></span>"); 01777 gtk_label_set_markup (GTK_LABEL (label), markup); 01778 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01779 gtk_widget_show (label); 01780 g_free (markup); 01781 01782 /* Add two radio buttons on the dialog window */ 01783 Addbutton = gtk_radio_button_new_with_label (NULL, "YES"); 01784 gtk_table_attach_defaults (GTK_TABLE (table), Addbutton, 0, 1, 2, 3); 01785 gtk_widget_show (Addbutton); 01786 01787 Removebutton = gtk_radio_button_new_with_label (NULL, "NO"); 01788 gtk_toggle_button_set_active (GTK_TOGGLE_BUTTON (Removebutton), TRUE); 01789 gtk_table_attach_defaults (GTK_TABLE (table), Removebutton, 0, 1, 3, 4); 01790 gtk_widget_show (Removebutton); 01791 01792 /* Add a "close" button to the bottom of the dialog */ 01793 close_butn = gtk_button_new_with_label ("Close"); 01794 01795 /* Signal handling for buttons on Data rate Window */ 01796 g_signal_connect_swapped (Addbutton, "clicked", G_CALLBACK (enter_new_data_rate), NULL); 01797 g_signal_connect_swapped (Removebutton, "clicked", G_CALLBACK (final_cfg_update_call), NULL); 01798 g_signal_connect_swapped (close_butn, "clicked", G_CALLBACK (gtk_widget_destroy), CCWin); 01799 g_signal_connect_swapped (CCWin, "response", G_CALLBACK (gtk_widget_destroy), CCWin); 01800 01801 /* This makes it so the button is the default */ 01802 gtk_widget_set_can_default (close_butn, TRUE); 01803 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (CCWin)->action_area), close_butn, TRUE, TRUE, 0); 01804 01805 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01806 gtk_widget_grab_default (close_butn); 01807 gtk_widget_show (close_butn); 01808 01809 /* Finally show the CCWin */ 01810 gtk_widget_show (CCWin); 01811 };
Here is the call graph for this function:
Here is the caller graph for this function:
| void Change_pmu_configuration | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |

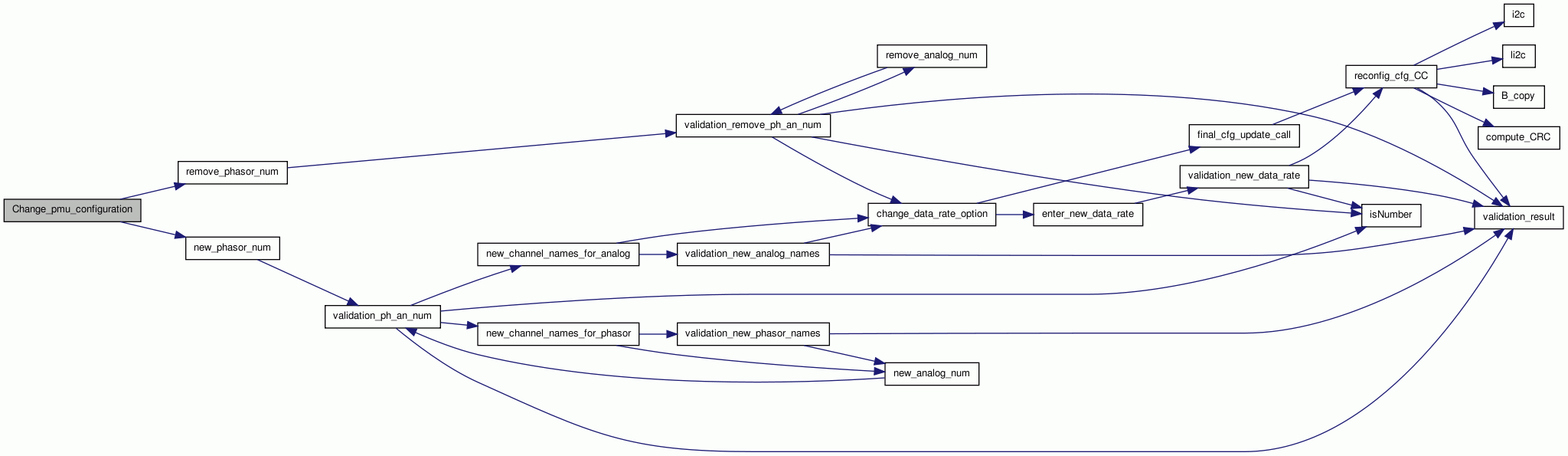

Definition at line 1342 of file CfgGuiFunctions.c.
References CCOptionWin, CCWin, markup, new_phasor_num(), and remove_phasor_num().
Referenced by cfg_chng_options().
01343 { 01344 /* local variables */ 01345 GtkWidget *table; 01346 GtkWidget *close_butn, *label; 01347 GtkWidget *Addbutton, *Removebutton; 01348 01349 /* Create a new dialog window for the Option Window */ 01350 gtk_widget_destroy(CCOptionWin); 01351 CCWin = gtk_dialog_new (); 01352 gtk_window_set_title (GTK_WINDOW (CCWin), "Option Window"); 01353 gtk_container_set_border_width (GTK_CONTAINER (CCWin), 10); 01354 gtk_widget_set_size_request (CCWin, 350, 350); 01355 01356 /* Create a table of 4 by 2 squares */ 01357 table = gtk_table_new (4, 2, FALSE); 01358 01359 /* Set the spacing to 15 on x and 25 on y */ 01360 gtk_table_set_row_spacings (GTK_TABLE (table), 15); 01361 gtk_table_set_col_spacings (GTK_TABLE (table), 25); 01362 01363 /* Pack the table into the window */ 01364 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(CCWin)->vbox), table, TRUE, TRUE, 0); 01365 gtk_widget_show (table); 01366 01367 label = gtk_label_new (" "); 01368 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b>Select Appropriate Option</b></span>"); 01369 gtk_label_set_markup (GTK_LABEL (label), markup); 01370 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01371 gtk_widget_show (label); 01372 g_free (markup); 01373 01374 /* Add few radio buttons on the dialog window */ 01375 Addbutton = gtk_radio_button_new_with_label (NULL, "Add New Channels"); 01376 gtk_table_attach_defaults (GTK_TABLE (table), Addbutton, 0, 1, 2, 3); 01377 gtk_widget_show (Addbutton); 01378 01379 Removebutton = gtk_radio_button_new_with_label (NULL, "Remove Channels"); 01380 gtk_toggle_button_set_active (GTK_TOGGLE_BUTTON (Removebutton), TRUE); 01381 gtk_table_attach_defaults (GTK_TABLE (table), Removebutton, 0, 1, 3, 4); 01382 gtk_widget_show (Removebutton); 01383 01384 /* Add 'Close' buttons on the dialog window */ 01385 close_butn = gtk_button_new_with_label ("Close"); 01386 01387 /* Signal handling for buttons on Option Window */ 01388 g_signal_connect_swapped (Addbutton, "clicked", G_CALLBACK (new_phasor_num), NULL); 01389 g_signal_connect_swapped (Removebutton, "clicked", G_CALLBACK (remove_phasor_num), NULL); 01390 g_signal_connect_swapped (close_butn, "clicked", G_CALLBACK (gtk_widget_destroy), CCWin); 01391 g_signal_connect_swapped (CCWin, "response", G_CALLBACK (gtk_widget_destroy), CCWin); 01392 01393 /* This makes it so the button is the default. */ 01394 gtk_widget_set_can_default (close_butn, TRUE); 01395 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (CCWin)->action_area), close_butn, TRUE, TRUE, 0); 01396 01397 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01398 gtk_widget_grab_default (close_butn); 01399 gtk_widget_show (close_butn); 01400 01401 /* Finally show the CCWin */ 01402 gtk_widget_show (CCWin); 01403 };
Here is the call graph for this function:
Here is the caller graph for this function:
| void channel_names_for_analog | ( | ) |

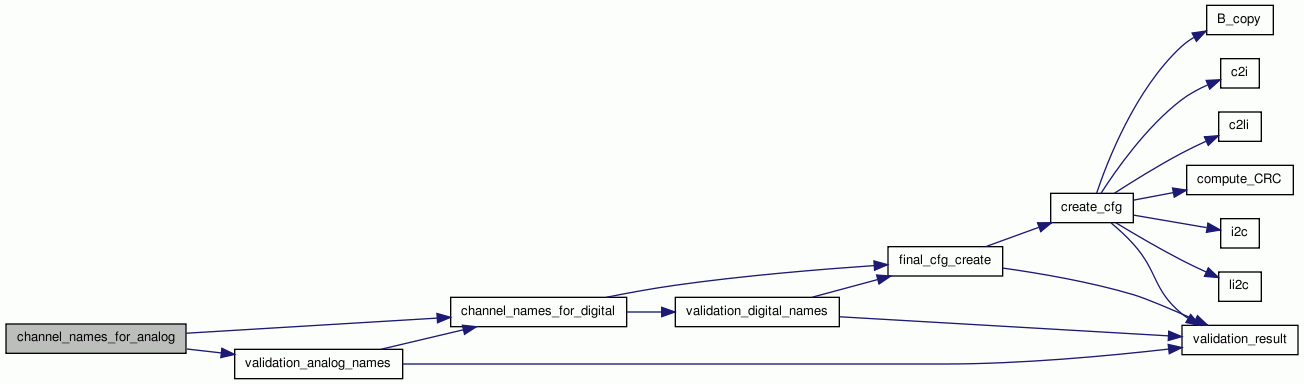

Definition at line 969 of file CfgGuiFunctions.c.
References AnalogChWin, ConfigurationFrame::cfg_annmr_val, cfg_info, channel_names_for_digital(), i, markup, num_text, and validation_analog_names().
Referenced by validation_phasor_names().
00970 { 00971 /* Analog is not Mandatory component in CFG, it could be zero */ 00972 if (cfg_info->cfg_annmr_val == 0) 00973 { 00974 /* Next call to digital channel names */ 00975 channel_names_for_digital (); 00976 } 00977 else /* if ANNMR > 0 */ 00978 { 00979 /* local variables */ 00980 int i; 00981 char line[30]; 00982 GtkWidget *table, *scrolled_window; 00983 GtkWidget *label, *next_button; 00984 00985 /* Create a new dialog window for the scrolled window to be packed into */ 00986 AnalogChWin = gtk_dialog_new (); 00987 g_signal_connect (AnalogChWin, "destroy", G_CALLBACK (gtk_widget_destroy), AnalogChWin); 00988 gtk_window_set_title (GTK_WINDOW (AnalogChWin), "Analog Channels"); 00989 gtk_container_set_border_width (GTK_CONTAINER (AnalogChWin), 10); 00990 gtk_widget_set_size_request (AnalogChWin, 400, 350); 00991 00992 /* Create a new scrolled window */ 00993 scrolled_window = gtk_scrolled_window_new (NULL, NULL); 00994 gtk_container_set_border_width (GTK_CONTAINER (scrolled_window), 10); 00995 00996 /* The policy is one of GTK_POLICY AUTOMATIC, or GTK_POLICY_ALWAYS. GTK_POLICY_AUTOMATIC will automatically decide whether you need scrollbars, 00997 whereas GTK_POLICY_ALWAYS will always leave the scrollbars there. The first one is the horizontal scrollbar, the second is vertical. */ 00998 gtk_scrolled_window_set_policy (GTK_SCROLLED_WINDOW (scrolled_window), GTK_POLICY_AUTOMATIC, GTK_POLICY_ALWAYS); 00999 01000 /* The dialog window is created with a vbox packed into it */ 01001 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(AnalogChWin)->vbox), scrolled_window, TRUE, TRUE, 0); 01002 gtk_widget_show (scrolled_window); 01003 01004 /* Create a table of ? by 2 squares */ 01005 table = gtk_table_new (cfg_info->cfg_annmr_val+1, 2, FALSE); 01006 01007 label = gtk_label_new (" "); 01008 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='10'><b>Enter Analog Channels Name</b></span>"); 01009 gtk_label_set_markup (GTK_LABEL (label), markup); 01010 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01011 gtk_widget_show (label); 01012 g_free (markup); 01013 01014 /* Set the spacing to 15 on x and 25 on y */ 01015 gtk_table_set_row_spacings (GTK_TABLE (table), 15); 01016 gtk_table_set_col_spacings (GTK_TABLE (table), 25); 01017 01018 /* Pack the table into the window */ 01019 gtk_scrolled_window_add_with_viewport (GTK_SCROLLED_WINDOW (scrolled_window), table); 01020 gtk_widget_show (table); 01021 01022 /* Add a "Next" button to the bottom of the dialog */ 01023 next_button = gtk_button_new_with_label ("Next"); 01024 01025 /* This simply creates a grid of Lables with text on the table to demonstrate the scrolled window. */ 01026 for(i=1; i<cfg_info->cfg_annmr_val+1; i++) 01027 { 01028 memset(line,'\0',sizeof(line)); 01029 sprintf(line, "Analog Channel %d : ", i); 01030 label = gtk_label_new (line); 01031 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, i, i+1); 01032 gtk_widget_show (label); 01033 } 01034 01035 for(i=1; i<cfg_info->cfg_annmr_val+1; i++) 01036 { 01037 num_text[i] = gtk_entry_new (); 01038 gtk_entry_set_max_length ((GtkEntry *)num_text[i], 16); 01039 gtk_table_attach_defaults (GTK_TABLE (table), num_text[i], 1, 2, i, i+1); 01040 gtk_widget_show (num_text[i]); 01041 } 01042 01043 /* Signal handling for Next button on Window */ 01044 g_signal_connect_swapped (next_button, "clicked", G_CALLBACK (validation_analog_names), NULL); 01045 01046 /* This makes it so the button is the default. */ 01047 gtk_widget_set_can_default (next_button, TRUE); 01048 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (AnalogChWin)->action_area), next_button, TRUE, TRUE, 0); 01049 01050 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01051 gtk_widget_grab_default (next_button); 01052 gtk_widget_show (next_button); 01053 01054 /* Finally show the AnalogChWin */ 01055 gtk_widget_show (AnalogChWin); 01056 } 01057 };
Here is the call graph for this function:
Here is the caller graph for this function:
| void channel_names_for_digital | ( | ) |
Definition at line 1065 of file CfgGuiFunctions.c.
References AnalogChWin, ConfigurationFrame::cfg_dgnmr_val, cfg_info, final_cfg_create(), i, markup, num_text, and validation_digital_names().
Referenced by channel_names_for_analog(), and validation_analog_names().
01066 { 01067 /* Analog is not Mandatory component in CFG, it could be zero */ 01068 if (cfg_info->cfg_dgnmr_val == 0) 01069 { 01070 /* Next call to 'final_cfg_create ()' */ 01071 final_cfg_create (); 01072 } 01073 else /* if DGNMR > 0 */ 01074 { 01075 /* local variables */ 01076 int i; 01077 char line[30]; 01078 GtkWidget *table, *scrolled_window; 01079 GtkWidget *label, *next_button; 01080 01081 /* Create a new dialog window for the scrolled window to be packed into */ 01082 AnalogChWin = gtk_dialog_new (); 01083 g_signal_connect (AnalogChWin, "destroy", G_CALLBACK (gtk_widget_destroy), AnalogChWin); 01084 gtk_window_set_title (GTK_WINDOW (AnalogChWin), "Digital Channels"); 01085 gtk_container_set_border_width (GTK_CONTAINER (AnalogChWin), 10); 01086 gtk_widget_set_size_request (AnalogChWin, 400, 550); 01087 01088 /* Create a new scrolled window */ 01089 scrolled_window = gtk_scrolled_window_new (NULL, NULL); 01090 gtk_container_set_border_width (GTK_CONTAINER (scrolled_window), 10); 01091 01092 gtk_scrolled_window_set_policy (GTK_SCROLLED_WINDOW (scrolled_window), GTK_POLICY_AUTOMATIC, GTK_POLICY_ALWAYS); 01093 01094 /* The dialog window is created with a vbox packed into it */ 01095 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(AnalogChWin)->vbox), scrolled_window, TRUE, TRUE, 0); 01096 gtk_widget_show (scrolled_window); 01097 01098 /* Create a table of ? by 2 squares. */ 01099 table = gtk_table_new (cfg_info->cfg_dgnmr_val*16+1, 2, FALSE); 01100 01101 /* Set the spacing to 15 on x and 25 on y */ 01102 gtk_table_set_row_spacings (GTK_TABLE (table), 15); 01103 gtk_table_set_col_spacings (GTK_TABLE (table), 25); 01104 01105 /* Pack the table into the window */ 01106 gtk_scrolled_window_add_with_viewport (GTK_SCROLLED_WINDOW (scrolled_window), table); 01107 gtk_widget_show (table); 01108 01109 /* Add a "Next" button to the bottom of the dialog */ 01110 next_button = gtk_button_new_with_label ("Next"); 01111 01112 label = gtk_label_new (" "); 01113 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='10'><b>Enter Digital Channels Name</b></span>"); 01114 gtk_label_set_markup (GTK_LABEL (label), markup); 01115 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01116 gtk_widget_show (label); 01117 g_free (markup); 01118 01119 /* This simply creates a grid of Lables with text on the table to demonstrate the scrolled window. */ 01120 for(i=1; i<cfg_info->cfg_dgnmr_val*16+1; i++) 01121 { 01122 memset(line,'\0',sizeof(line)); 01123 sprintf(line, "Digita Channel %d : ", i); 01124 label = gtk_label_new (line); 01125 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, i, i+1); 01126 gtk_widget_show (label); 01127 } 01128 01129 for(i=1; i<cfg_info->cfg_dgnmr_val*16+1; i++) 01130 { 01131 num_text[i] = gtk_entry_new (); 01132 //gtk_entry_set_max_length (GtkEntry *entry, gint max); 01133 gtk_entry_set_max_length ((GtkEntry *)num_text[i], 16); 01134 gtk_table_attach_defaults (GTK_TABLE (table), num_text[i], 1, 2, i, i+1); 01135 gtk_widget_show (num_text[i]); 01136 } 01137 01138 /* Signal handling for Next button on Window */ 01139 g_signal_connect_swapped (next_button, "clicked", G_CALLBACK (validation_digital_names), NULL); 01140 01141 /* This makes it so the button is the default. */ 01142 gtk_widget_set_can_default (next_button, TRUE); 01143 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (AnalogChWin)->action_area), next_button, TRUE, TRUE, 0); 01144 01145 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01146 gtk_widget_grab_default (next_button); 01147 gtk_widget_show (next_button); 01148 01149 /* Finally show the AnalogChWin */ 01150 gtk_widget_show (AnalogChWin); 01151 } 01152 };

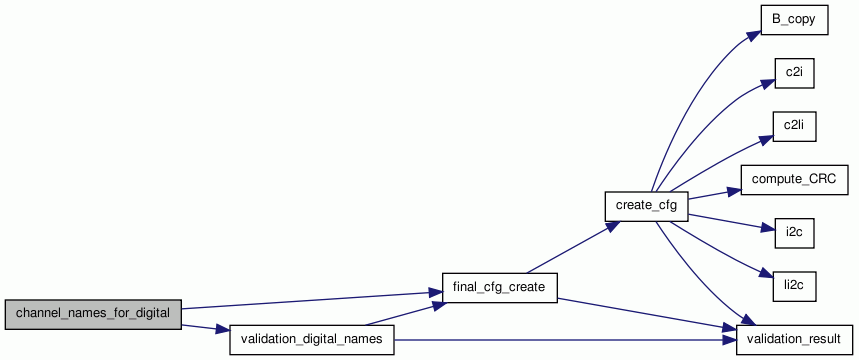

Here is the call graph for this function:
Here is the caller graph for this function:

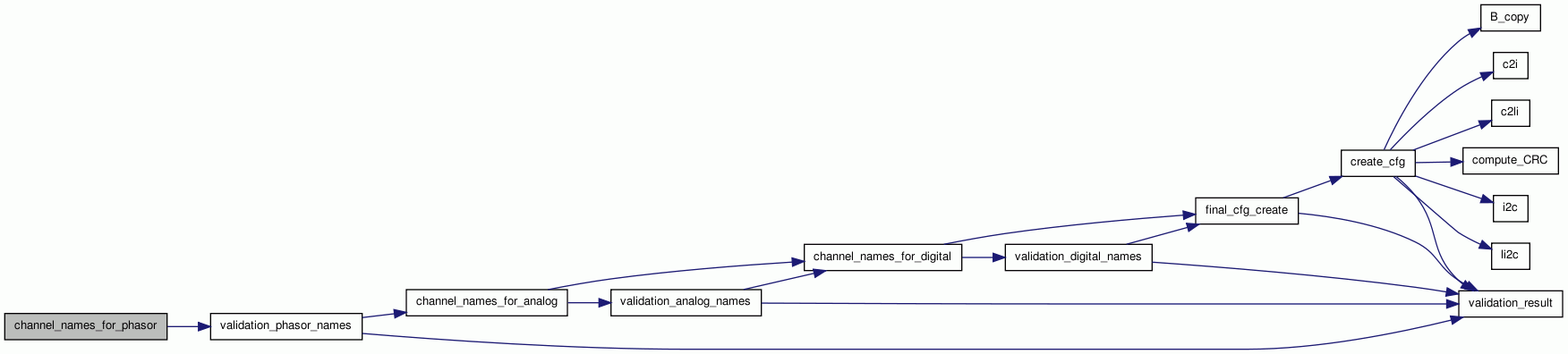

| void channel_names_for_phasor | ( | ) |
Definition at line 882 of file CfgGuiFunctions.c.
References cfg_info, ConfigurationFrame::cfg_phnmr_val, i, markup, num_text, PhasorChWin, and validation_phasor_names().
Referenced by validation_cfg_create().
00883 { 00884 /* local variables */ 00885 int i; 00886 char line[20]; 00887 GtkWidget *table, *scrolled_window; 00888 GtkWidget *label, *next_button; 00889 00890 /* Create a new dialog window for the scrolled window to be packed into */ 00891 PhasorChWin = gtk_dialog_new (); 00892 g_signal_connect (PhasorChWin, "destroy", G_CALLBACK (gtk_widget_destroy), PhasorChWin); 00893 gtk_window_set_title (GTK_WINDOW (PhasorChWin), "Phasor Channels"); 00894 gtk_container_set_border_width (GTK_CONTAINER (PhasorChWin), 10); 00895 gtk_widget_set_size_request (PhasorChWin, 400, 400); 00896 00897 /* Create a new scrolled window */ 00898 scrolled_window = gtk_scrolled_window_new (NULL, NULL); 00899 gtk_container_set_border_width (GTK_CONTAINER (scrolled_window), 10); 00900 00901 /* The policy is one of GTK_POLICY AUTOMATIC, or GTK_POLICY_ALWAYS. GTK_POLICY_AUTOMATIC will automatically decide whether you need scrollbars, 00902 whereas GTK_POLICY_ALWAYS will always leave the scrollbars there. The first one is the horizontal scrollbar, the second is vertical. */ 00903 gtk_scrolled_window_set_policy (GTK_SCROLLED_WINDOW (scrolled_window), GTK_POLICY_AUTOMATIC, GTK_POLICY_ALWAYS); 00904 00905 /* The dialog window is created with a vbox packed into it */ 00906 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(PhasorChWin)->vbox), scrolled_window, TRUE, TRUE, 0); 00907 gtk_widget_show (scrolled_window); 00908 00909 /* Create a table of ? by 2 squares. */ 00910 table = gtk_table_new (cfg_info->cfg_phnmr_val+1, 2, FALSE); 00911 00912 /* Set the spacing to 15 on x and 25 on y */ 00913 gtk_table_set_row_spacings (GTK_TABLE (table), 15); 00914 gtk_table_set_col_spacings (GTK_TABLE (table), 25); 00915 00916 /* Pack the table into the window */ 00917 gtk_scrolled_window_add_with_viewport (GTK_SCROLLED_WINDOW (scrolled_window), table); 00918 gtk_widget_show (table); 00919 00920 /* Add a "Next" button to the bottom of the dialog */ 00921 next_button = gtk_button_new_with_label ("Next"); 00922 00923 label = gtk_label_new (" "); 00924 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='10'><b>Enter Phasor Channels Name</b></span>"); 00925 gtk_label_set_markup (GTK_LABEL (label), markup); 00926 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 00927 gtk_widget_show (label); 00928 g_free (markup); 00929 00930 /* This simply creates a grid of Lables with text on the table to demonstrate the scrolled window. */ 00931 for(i=1; i<cfg_info->cfg_phnmr_val+1; i++) 00932 { 00933 memset(line,'\0',sizeof(line)); 00934 sprintf(line, "Phasor Channel %d : ", i); 00935 label = gtk_label_new (line); 00936 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, i, i+1); 00937 gtk_widget_show (label); 00938 } 00939 00940 for(i=1; i<cfg_info->cfg_phnmr_val+1; i++) 00941 { 00942 num_text[i] = gtk_entry_new (); 00943 gtk_entry_set_max_length ((GtkEntry *)num_text[i], 16); 00944 gtk_table_attach_defaults (GTK_TABLE (table), num_text[i], 1, 2, i, i+1); 00945 gtk_widget_show (num_text[i]); 00946 } 00947 00948 /* Signal handling for Next button on Window */ 00949 g_signal_connect_swapped (next_button, "clicked", G_CALLBACK (validation_phasor_names), NULL); 00950 00951 /* This makes it so the button is the default. */ 00952 gtk_widget_set_can_default (next_button, TRUE); 00953 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (PhasorChWin)->action_area), next_button, TRUE, TRUE, 0); 00954 00955 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 00956 gtk_widget_grab_default (next_button); 00957 gtk_widget_show (next_button); 00958 00959 /* Finally show the PhasorChWin */ 00960 gtk_widget_show (PhasorChWin); 00961 };
Here is the call graph for this function:
Here is the caller graph for this function:
| void enter_new_data_rate | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |
Definition at line 1820 of file CfgGuiFunctions.c.
References CCWin, markup, p_drate, and validation_new_data_rate().
Referenced by change_data_rate_option().
01821 { 01822 /* local variables */ 01823 GtkWidget *table; 01824 GtkWidget *next_butn, *label; 01825 01826 /* Create a new dialog window for the New Data Rate */ 01827 gtk_widget_destroy(CCWin); 01828 CCWin = gtk_dialog_new (); 01829 gtk_window_set_title (GTK_WINDOW (CCWin), "New Data Rate"); 01830 gtk_container_set_border_width (GTK_CONTAINER (CCWin), 10); 01831 gtk_widget_set_size_request (CCWin, 350, 300); 01832 01833 /* Create a table of 3 by 3 squares */ 01834 table = gtk_table_new (3, 3, FALSE); 01835 01836 /* Set the spacing to 25 on x and 40 on y */ 01837 gtk_table_set_row_spacings (GTK_TABLE (table), 25); 01838 gtk_table_set_col_spacings (GTK_TABLE (table), 40); 01839 01840 /* Pack the table into the window */ 01841 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(CCWin)->vbox), table, TRUE, TRUE, 0); 01842 gtk_widget_show (table); 01843 01844 label = gtk_label_new (" "); 01845 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b> Enter Data Rate</b></span>"); 01846 gtk_label_set_markup (GTK_LABEL (label), markup); 01847 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01848 gtk_widget_show (label); 01849 g_free (markup); 01850 01851 /* Create combo boxe for user with some fixed values */ 01852 p_drate = gtk_combo_box_new_text(); 01853 gtk_combo_box_append_text(GTK_COMBO_BOX(p_drate), "10"); 01854 gtk_combo_box_append_text(GTK_COMBO_BOX(p_drate), "25"); 01855 gtk_combo_box_append_text(GTK_COMBO_BOX(p_drate), "50"); 01856 gtk_combo_box_append_text(GTK_COMBO_BOX(p_drate), "60"); 01857 gtk_combo_box_set_active(GTK_COMBO_BOX(p_drate), 0); 01858 gtk_table_attach_defaults (GTK_TABLE (table), p_drate, 1, 2, 1, 2); 01859 gtk_widget_show (p_drate); 01860 01861 label = gtk_label_new (" "); 01862 markup = g_markup_printf_escaped ("<span foreground=\"#333333\" font='8'><b>Note : The data frame sends according to new\n\t data rate.</b></span>"); 01863 gtk_label_set_markup (GTK_LABEL (label), markup); 01864 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 2, 3); 01865 gtk_widget_show (label); 01866 g_free (markup); 01867 01868 /* Add a "next" button to the bottom of the dialog */ 01869 next_butn = gtk_button_new_with_label ("Next"); 01870 01871 /* Signal handling for buttons on Data Rate Window */ 01872 g_signal_connect (next_butn, "clicked", G_CALLBACK (validation_new_data_rate), NULL); 01873 g_signal_connect_swapped (CCWin, "response", G_CALLBACK (gtk_widget_destroy), CCWin); 01874 01875 /* This makes it so the button is the default */ 01876 gtk_widget_set_can_default (next_butn, TRUE); 01877 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (CCWin)->action_area), next_butn, TRUE, TRUE, 0); 01878 01879 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01880 gtk_widget_grab_default (next_butn); 01881 gtk_widget_show (next_butn); 01882 01883 /* Finally show the CCWin */ 01884 gtk_widget_show (CCWin); 01885 };

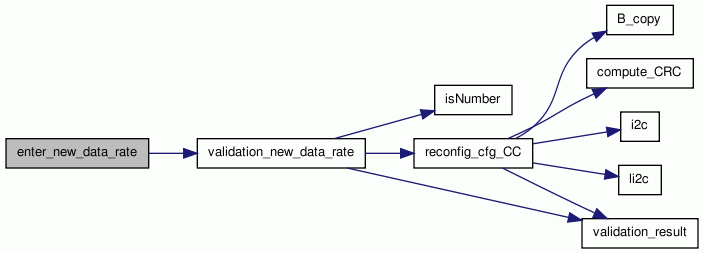

Here is the call graph for this function:
Here is the caller graph for this function:
| void final_cfg_create | ( | ) |

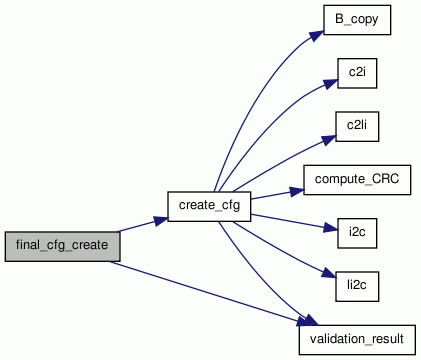

Definition at line 1160 of file CfgGuiFunctions.c.
References _pmuStruct::cfg_modification_button, create_cfg(), _pmuStruct::create_cfg_button, _pmuStruct::header_frm_button, pmu_data, _pmuStruct::pmu_details_button, and validation_result().
Referenced by channel_names_for_digital(), and validation_digital_names().
01161 { 01162 /* local variables */ 01163 int ret_val; 01164 char *display_msg; 01165 01166 /* To create CFG call 'create_cfg()' */ 01167 ret_val = create_cfg(); 01168 01169 if(ret_val == 0) 01170 { 01171 /* Enable rest of the buttons on PMU Simulator Window */ 01172 gtk_widget_set_sensitive(GTK_WIDGET(pmu_data->header_frm_button), TRUE); 01173 gtk_widget_set_sensitive(GTK_WIDGET(pmu_data->pmu_details_button), TRUE); 01174 gtk_widget_set_sensitive(GTK_WIDGET(pmu_data->cfg_modification_button), TRUE); 01175 01176 /* Disable create CFG buttons on PMU Simulator Window */ 01177 gtk_widget_set_sensitive(GTK_WIDGET(pmu_data->create_cfg_button), FALSE); 01178 01179 display_msg = "\tConfiguration Frame for PMU successfully made\t\n"; 01180 validation_result (display_msg); /* Show the success message to user */ 01181 } 01182 else 01183 { 01184 display_msg = "\t\tConfiguration Frame for PMU failed.\t\t\n\t\t\t\tPlease try again\n"; 01185 validation_result (display_msg); /* Show the unsuccess message to user */ 01186 } 01187 };
Here is the call graph for this function:
Here is the caller graph for this function:

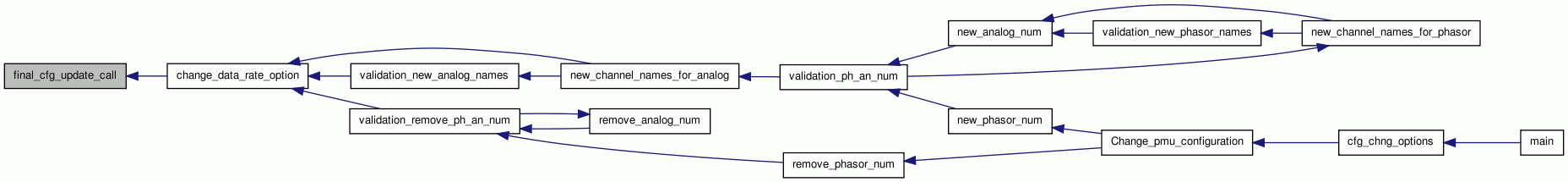

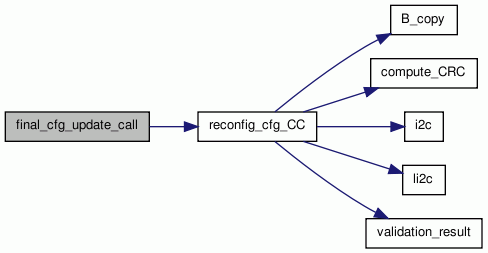

| int final_cfg_update_call | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |
Definition at line 2047 of file CfgGuiFunctions.c.
References CCWin, ConfigurationChange::data_rate_choice, new_cfg_info, ConfigurationChange::new_data_rate, and reconfig_cfg_CC().
Referenced by change_data_rate_option().
02048 { 02049 new_cfg_info->data_rate_choice = 0; 02050 new_cfg_info->new_data_rate = 0; 02051 02052 /* Close/destroy the CCWin */ 02053 gtk_widget_destroy(CCWin); 02054 02055 /* Final call to recreate configuration frame */ 02056 reconfig_cfg_CC(); 02057 02058 return 0; 02059 };
Here is the call graph for this function:
Here is the caller graph for this function:
| void hdr_create_function | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |
Definition at line 2068 of file CfgGuiFunctions.c.
References CCWin, HdrFrm, markup, and validation_hdr_frm().
Referenced by main().
02069 { 02070 /* local variables */ 02071 GtkWidget *table, *label; 02072 GtkWidget *close_butn, *vald_butn; 02073 02074 /* Create a new dialog window for the Header Frame Window */ 02075 CCWin = gtk_dialog_new (); 02076 gtk_window_set_title (GTK_WINDOW (CCWin), "Header Frame"); 02077 gtk_container_set_border_width (GTK_CONTAINER (CCWin), 10); 02078 gtk_widget_set_size_request (CCWin, 500, 350); 02079 02080 /* Create a table of 3 by 2 squares */ 02081 table = gtk_table_new (3, 2, FALSE); 02082 02083 /* Set the spacing to 30 on x */ 02084 gtk_table_set_row_spacings (GTK_TABLE (table), 30); 02085 02086 /* Pack the table into the window */ 02087 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(CCWin)->vbox), table, TRUE, TRUE, 0); 02088 gtk_widget_show (table); 02089 02090 label = gtk_label_new (" "); 02091 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b>Enter Header Frame Details</b></span>"); 02092 gtk_label_set_markup (GTK_LABEL (label), markup); 02093 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 02094 gtk_widget_show (label); 02095 g_free (markup); 02096 02097 /* Create text boxes for user to enter appropriate values */ 02098 HdrFrm = gtk_entry_new(); 02099 gtk_table_attach_defaults (GTK_TABLE (table), HdrFrm, 0, 1, 1, 2); 02100 gtk_widget_show (HdrFrm); 02101 02102 label = gtk_label_new (" "); 02103 markup = g_markup_printf_escaped ("<span foreground=\"#333333\" font='8'><b>Note : Header frame includes the information about the PMU, the data sources,\n\t scaling, algorithms, filtering, or other related information.</b></span>"); 02104 gtk_label_set_markup (GTK_LABEL (label), markup); 02105 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, 2, 3); 02106 gtk_widget_show (label); 02107 g_free (markup); 02108 02109 /* Add few buttons at the bottom of the dialog */ 02110 vald_butn = gtk_button_new_with_label ("Create"); 02111 close_butn = gtk_button_new_with_label ("Close"); 02112 02113 /* Signal handling for buttons on Window */ 02114 g_signal_connect (vald_butn, "clicked", G_CALLBACK (validation_hdr_frm), (gpointer) "2"); 02115 g_signal_connect_swapped (close_butn, "clicked", G_CALLBACK (gtk_widget_destroy), CCWin); 02116 g_signal_connect_swapped (CCWin, "response", G_CALLBACK (gtk_widget_destroy), CCWin); 02117 02118 /* This makes it so the button is the default */ 02119 gtk_widget_set_can_default (vald_butn, TRUE); 02120 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (CCWin)->action_area), vald_butn, TRUE, TRUE, 0); 02121 gtk_widget_set_can_default (close_butn, TRUE); 02122 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (CCWin)->action_area), close_butn, TRUE, TRUE, 0); 02123 02124 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 02125 gtk_widget_grab_default (vald_butn); 02126 gtk_widget_show (vald_butn); 02127 gtk_widget_grab_default (close_butn); 02128 gtk_widget_show (close_butn); 02129 02130 /* Finally show the CCWin */ 02131 gtk_widget_show (CCWin); 02132 };
Here is the call graph for this function:
Here is the caller graph for this function:
| void new_analog_num | ( | ) |

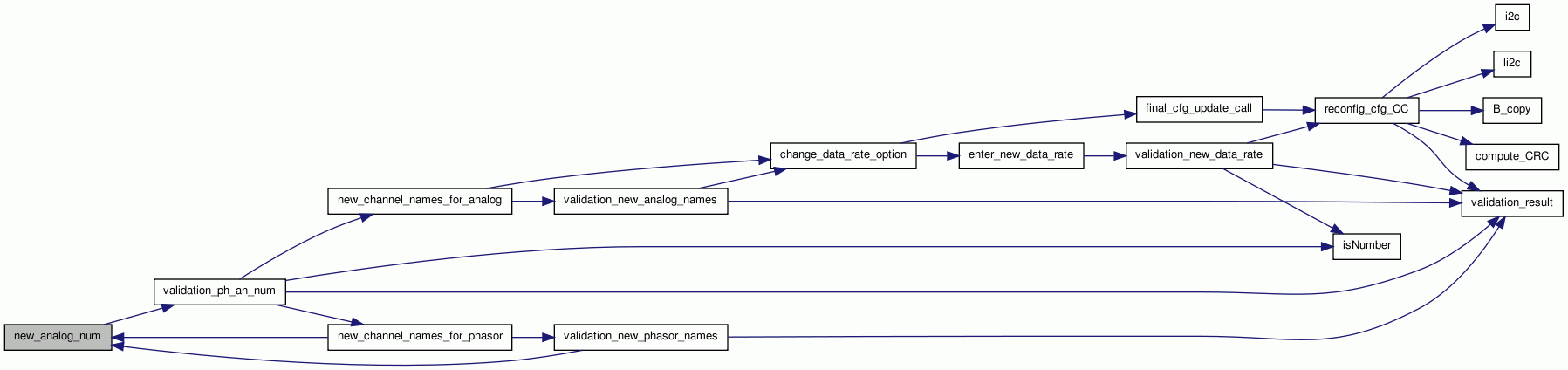

Definition at line 1483 of file CfgGuiFunctions.c.
References CCWin, markup, phtext, and validation_ph_an_num().
Referenced by new_channel_names_for_phasor(), and validation_new_phasor_names().
01484 { 01485 /* local variables */ 01486 GtkWidget *table; 01487 GtkWidget *next_butn, *label; 01488 01489 /* Create a new dialog window for the New Analog Channels */ 01490 CCWin = gtk_dialog_new (); 01491 gtk_window_set_title (GTK_WINDOW (CCWin), "New Analog Channels"); 01492 gtk_container_set_border_width (GTK_CONTAINER (CCWin), 10); 01493 gtk_widget_set_size_request (CCWin, 350, 300); 01494 01495 /* Create a table of 3 by 3 squares */ 01496 table = gtk_table_new (3, 3, FALSE); 01497 01498 /* Set the spacing to 25 on x and 40 on y */ 01499 gtk_table_set_row_spacings (GTK_TABLE (table), 25); 01500 gtk_table_set_col_spacings (GTK_TABLE (table), 40); 01501 01502 /* Pack the table into the window */ 01503 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(CCWin)->vbox), table, TRUE, TRUE, 0); 01504 gtk_widget_show (table); 01505 01506 label = gtk_label_new (" "); 01507 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b> Enter number of new Analogs</b></span>"); 01508 gtk_label_set_markup (GTK_LABEL (label), markup); 01509 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01510 gtk_widget_show (label); 01511 g_free (markup); 01512 01513 /* Create text boxes for user to enter appropriate values */ 01514 phtext = gtk_entry_new (); 01515 gtk_table_attach_defaults (GTK_TABLE (table), phtext, 1, 2, 1, 2); 01516 gtk_widget_show (phtext); 01517 01518 label = gtk_label_new (" "); 01519 markup = g_markup_printf_escaped ("<span foreground=\"#333333\" font='8'><b>Note : The new analog channels will be added to\n\t existing configuration frame.</b></span>"); 01520 gtk_label_set_markup (GTK_LABEL (label), markup); 01521 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 2, 3); 01522 gtk_widget_show (label); 01523 g_free (markup); 01524 01525 /* Add a "Next" button to the bottom of the dialog */ 01526 next_butn = gtk_button_new_with_label ("Next"); 01527 01528 /* Signal handling for buttons on Window */ 01529 g_signal_connect (next_butn, "clicked", G_CALLBACK (validation_ph_an_num), (gpointer) "2"); 01530 g_signal_connect_swapped (CCWin, "response", G_CALLBACK (gtk_widget_destroy), CCWin); 01531 01532 /* This makes it so the button is the default. */ 01533 gtk_widget_set_can_default (next_butn, TRUE); 01534 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (CCWin)->action_area), next_butn, TRUE, TRUE, 0); 01535 01536 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01537 gtk_widget_grab_default (next_butn); 01538 gtk_widget_show (next_butn); 01539 01540 /* Finally show the CCWin */ 01541 gtk_widget_show (CCWin); 01542 };
Here is the call graph for this function:

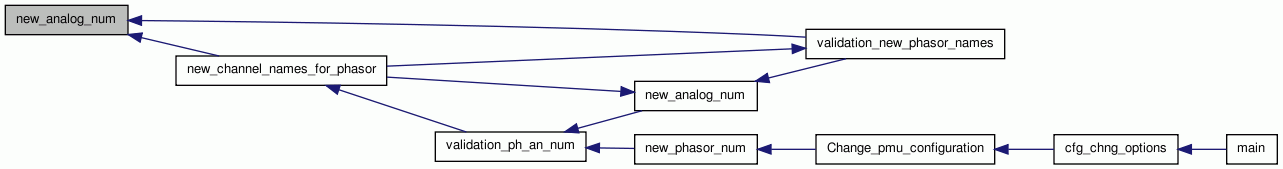

Here is the caller graph for this function:

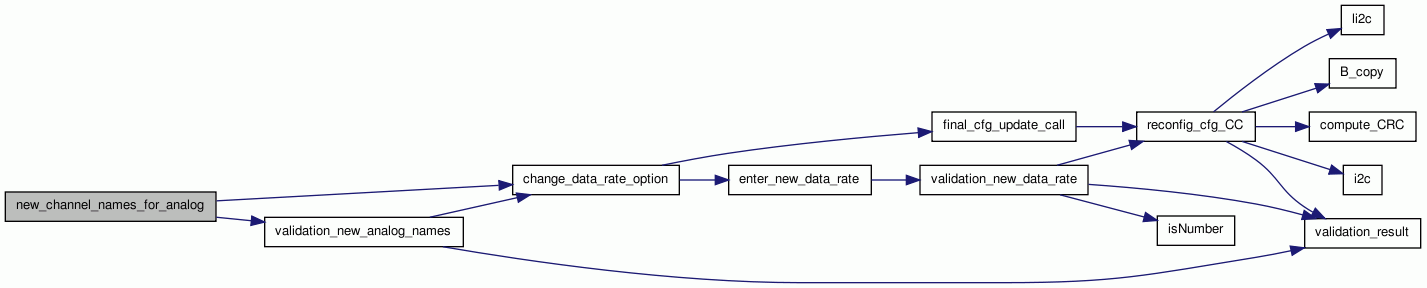

| void new_channel_names_for_analog | ( | ) |

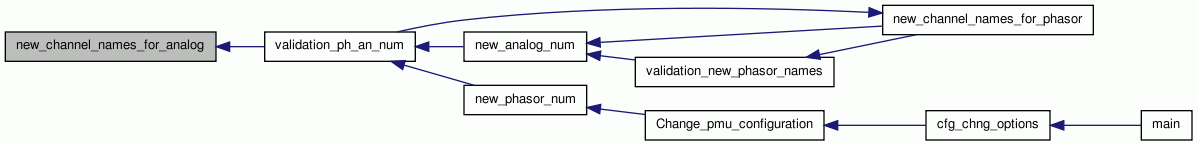

Definition at line 1651 of file CfgGuiFunctions.c.
References CCWin, change_data_rate_option(), i, markup, ConfigurationChange::new_cfg_annmr_val, new_cfg_info, num_text, PhasorChWin, and validation_new_analog_names().
Referenced by validation_ph_an_num().
01652 { 01653 /* new_analog number could be zero? */ 01654 if(new_cfg_info->new_cfg_annmr_val > 0) 01655 { 01656 /* local variables */ 01657 int i; 01658 char line[30]; 01659 GtkWidget *table, *scrolled_window; 01660 GtkWidget *label, *next_button; 01661 01662 /* Create a new dialog window for the scrolled window to be packed into */ 01663 gtk_widget_destroy(CCWin); 01664 PhasorChWin = gtk_dialog_new (); 01665 g_signal_connect (PhasorChWin, "destroy", G_CALLBACK (gtk_widget_destroy), PhasorChWin); 01666 gtk_window_set_title (GTK_WINDOW (PhasorChWin), "New Analog Channels"); 01667 gtk_container_set_border_width (GTK_CONTAINER (PhasorChWin), 10); 01668 gtk_widget_set_size_request (PhasorChWin, 420, 350); 01669 01670 /* Create a new scrolled window */ 01671 scrolled_window = gtk_scrolled_window_new (NULL, NULL); 01672 gtk_container_set_border_width (GTK_CONTAINER (scrolled_window), 10); 01673 01674 /* The policy is one of GTK_POLICY AUTOMATIC, or GTK_POLICY_ALWAYS. GTK_POLICY_AUTOMATIC will automatically decide whether you need scrollbars, 01675 whereas GTK_POLICY_ALWAYS will always leave the scrollbars there. The first one is the horizontal scrollbar, the second is vertical */ 01676 gtk_scrolled_window_set_policy (GTK_SCROLLED_WINDOW (scrolled_window), GTK_POLICY_AUTOMATIC, GTK_POLICY_ALWAYS); 01677 01678 /* The dialog window is created with a vbox packed into it */ 01679 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(PhasorChWin)->vbox), scrolled_window, TRUE, TRUE, 0); 01680 gtk_widget_show (scrolled_window); 01681 01682 /* Create a table of ? by 2 squares */ 01683 table = gtk_table_new (new_cfg_info->new_cfg_annmr_val+1, 2, FALSE); 01684 01685 /* Set the spacing to 10 on x and 30 on y */ 01686 gtk_table_set_row_spacings (GTK_TABLE (table), 10); 01687 gtk_table_set_col_spacings (GTK_TABLE (table), 30); 01688 01689 /* Pack the table into the window */ 01690 gtk_scrolled_window_add_with_viewport (GTK_SCROLLED_WINDOW (scrolled_window), table); 01691 gtk_widget_show (table); 01692 01693 /* Add a "next" button to the bottom of the dialog */ 01694 next_button = gtk_button_new_with_label ("Next"); 01695 01696 label = gtk_label_new (" "); 01697 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b>Enter New Analog Channel Names</b></span>"); 01698 gtk_label_set_markup (GTK_LABEL (label), markup); 01699 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01700 gtk_widget_show (label); 01701 g_free (markup); 01702 01703 /* This simply creates a grid of Lables with text on the table to demonstrate the scrolled window */ 01704 for(i=1; i<new_cfg_info->new_cfg_annmr_val+1; i++) 01705 { 01706 memset(line,'\0',sizeof(line)); 01707 sprintf(line, "New Analog Channel %d : ", i); 01708 label = gtk_label_new (line); 01709 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, i, i+1); 01710 gtk_widget_show (label); 01711 } 01712 01713 for(i=1; i<new_cfg_info->new_cfg_annmr_val+1; i++) 01714 { 01715 num_text[i] = gtk_entry_new (); 01716 gtk_entry_set_max_length ((GtkEntry *)num_text[i], 16); 01717 gtk_table_attach_defaults (GTK_TABLE (table), num_text[i], 1, 2, i, i+1); 01718 gtk_widget_show (num_text[i]); 01719 } 01720 01721 /* Signal handling for Next button on Window */ 01722 g_signal_connect_swapped (next_button, "clicked", G_CALLBACK (validation_new_analog_names), NULL); 01723 01724 /* This makes it so the button is the default */ 01725 gtk_widget_set_can_default (next_button, TRUE); 01726 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (PhasorChWin)->action_area), next_button, TRUE, TRUE, 0); 01727 01728 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01729 gtk_widget_grab_default (next_button); 01730 gtk_widget_show (next_button); 01731 01732 /* Finally show the PhasorChWin */ 01733 gtk_widget_show (PhasorChWin); 01734 } 01735 else /* if new_phasor < 0 */ 01736 { 01737 /* Close/destroy the CCWin */ 01738 gtk_widget_destroy(CCWin); 01739 01740 /* Next call to data rate change option? */ 01741 change_data_rate_option(); 01742 } 01743 };
Here is the call graph for this function:
Here is the caller graph for this function:
| void new_channel_names_for_phasor | ( | ) |

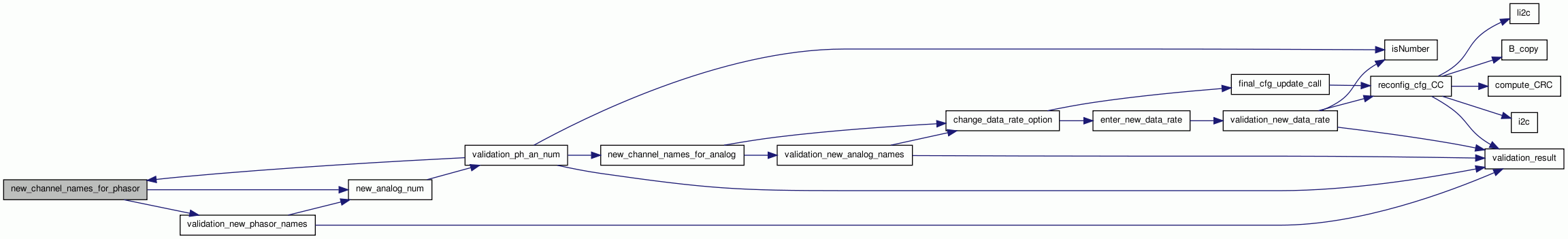

Definition at line 1550 of file CfgGuiFunctions.c.
References CCWin, i, markup, new_analog_num(), new_cfg_info, ConfigurationChange::new_cfg_phnmr_val, num_text, PhasorChWin, and validation_new_phasor_names().
Referenced by validation_ph_an_num().
01551 { 01552 /* new_phasor number could be zero? */ 01553 if(new_cfg_info->new_cfg_phnmr_val > 0) 01554 { 01555 /* local variables */ 01556 int i; 01557 char line[30]; 01558 GtkWidget *table, *scrolled_window; 01559 GtkWidget *label, *next_button; 01560 01561 /* Create a new dialog window for the scrolled window to be packed into */ 01562 gtk_widget_destroy(CCWin); 01563 PhasorChWin = gtk_dialog_new (); 01564 g_signal_connect (PhasorChWin, "destroy", G_CALLBACK (gtk_widget_destroy), PhasorChWin); 01565 gtk_window_set_title (GTK_WINDOW (PhasorChWin), "New Phasor"); 01566 gtk_container_set_border_width (GTK_CONTAINER (PhasorChWin), 10); 01567 gtk_widget_set_size_request (PhasorChWin, 420, 350); 01568 01569 /* Create a new scrolled window */ 01570 scrolled_window = gtk_scrolled_window_new (NULL, NULL); 01571 gtk_container_set_border_width (GTK_CONTAINER (scrolled_window), 10); 01572 01573 /* The policy is one of GTK_POLICY AUTOMATIC, or GTK_POLICY_ALWAYS. GTK_POLICY_AUTOMATIC will automatically decide whether you need scrollbars, 01574 whereas GTK_POLICY_ALWAYS will always leave the scrollbars there. The first one is the horizontal scrollbar, the second is vertical */ 01575 gtk_scrolled_window_set_policy (GTK_SCROLLED_WINDOW (scrolled_window), GTK_POLICY_AUTOMATIC, GTK_POLICY_ALWAYS); 01576 01577 /* The dialog window is created with a vbox packed into it */ 01578 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(PhasorChWin)->vbox), scrolled_window, TRUE, TRUE, 0); 01579 gtk_widget_show (scrolled_window); 01580 01581 /* Create a table of ? by 2 squares */ 01582 table = gtk_table_new (new_cfg_info->new_cfg_phnmr_val+1, 2, FALSE); 01583 01584 /* Set the spacing to 10 on x and 30 on y */ 01585 gtk_table_set_row_spacings (GTK_TABLE (table), 10); 01586 gtk_table_set_col_spacings (GTK_TABLE (table), 30); 01587 01588 /* Pack the table into the window */ 01589 gtk_scrolled_window_add_with_viewport (GTK_SCROLLED_WINDOW (scrolled_window), table); 01590 gtk_widget_show (table); 01591 01592 /* Add a "next" button to the bottom of the dialog */ 01593 next_button = gtk_button_new_with_label ("Next"); 01594 01595 label = gtk_label_new (" "); 01596 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b>Enter New Phasor Channel Names</b></span>"); 01597 gtk_label_set_markup (GTK_LABEL (label), markup); 01598 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01599 gtk_widget_show (label); 01600 g_free (markup); 01601 01602 /* This simply creates a grid of Lables with text on the table to demonstrate the scrolled window */ 01603 for(i=1; i<new_cfg_info->new_cfg_phnmr_val+1; i++) 01604 { 01605 memset(line,'\0',sizeof(line)); 01606 sprintf(line, "New Phasor Channel %d : ", i); 01607 label = gtk_label_new (line); 01608 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 1, i, i+1); 01609 gtk_widget_show (label); 01610 } 01611 01612 for(i=1; i<new_cfg_info->new_cfg_phnmr_val+1; i++) 01613 { 01614 num_text[i] = gtk_entry_new (); 01615 gtk_entry_set_max_length ((GtkEntry *)num_text[i], 16); 01616 gtk_table_attach_defaults (GTK_TABLE (table), num_text[i], 1, 2, i, i+1); 01617 gtk_widget_show (num_text[i]); 01618 } 01619 01620 /* Signal handling for Next button on Window */ 01621 g_signal_connect_swapped (next_button, "clicked", G_CALLBACK (validation_new_phasor_names), NULL); 01622 01623 /* This makes it so the button is the default */ 01624 gtk_widget_set_can_default (next_button, TRUE); 01625 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (PhasorChWin)->action_area), next_button, TRUE, TRUE, 0); 01626 01627 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01628 gtk_widget_grab_default (next_button); 01629 gtk_widget_show (next_button); 01630 01631 /* Finally show the PhasorChWin */ 01632 gtk_widget_show (PhasorChWin); 01633 } 01634 01635 else /* if new_phasor < 0 */ 01636 { 01637 /* Close/destroy the CCWin */ 01638 gtk_widget_destroy(CCWin); 01639 01640 /* Next call to new analog numbers */ 01641 new_analog_num(); 01642 } 01643 };
Here is the call graph for this function:
Here is the caller graph for this function:
| void new_phasor_num | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |

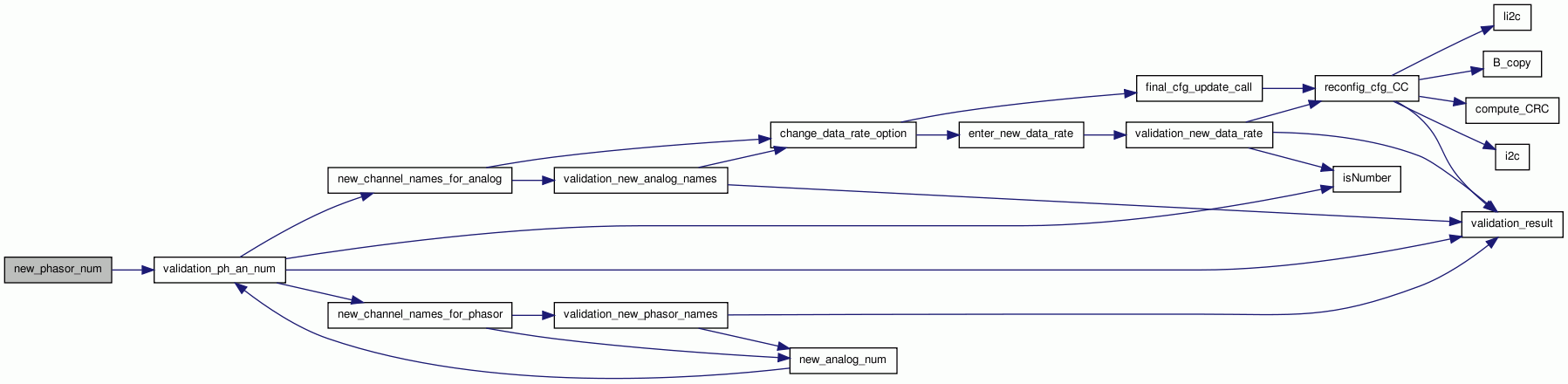

Definition at line 1411 of file CfgGuiFunctions.c.
References ConfigurationChange::add_remove_choice, CCWin, markup, new_cfg_info, phtext, and validation_ph_an_num().
Referenced by Change_pmu_configuration().
01412 { 01413 /* local variables */ 01414 GtkWidget *table; 01415 GtkWidget *next_butn, *label; 01416 01417 /* Allocate the memory for the ConfigurationChange object */ 01418 new_cfg_info = malloc(sizeof(struct ConfigurationChange)); 01419 new_cfg_info->add_remove_choice = 1; 01420 01421 /* Create a new dialog window for New Phasor Channels */ 01422 gtk_widget_destroy(CCWin); 01423 CCWin = gtk_dialog_new (); 01424 gtk_window_set_title (GTK_WINDOW (CCWin), "New Phasor Channels"); 01425 gtk_container_set_border_width (GTK_CONTAINER (CCWin), 10); 01426 gtk_widget_set_size_request (CCWin, 350, 300); 01427 01428 /* Create a table of 3 by 3 squares. */ 01429 table = gtk_table_new (3, 3, FALSE); 01430 01431 /* Set the spacing to 25 on x and 40 on y */ 01432 gtk_table_set_row_spacings (GTK_TABLE (table), 25); 01433 gtk_table_set_col_spacings (GTK_TABLE (table), 40); 01434 01435 /* Pack the table into the window */ 01436 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(CCWin)->vbox), table, TRUE, TRUE, 0); 01437 gtk_widget_show (table); 01438 01439 label = gtk_label_new (" "); 01440 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b> Enter number of new Phasors</b></span>"); 01441 gtk_label_set_markup (GTK_LABEL (label), markup); 01442 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 0, 1); 01443 gtk_widget_show (label); 01444 g_free (markup); 01445 01446 /* Create text boxes for user to enter appropriate values */ 01447 phtext = gtk_entry_new (); 01448 gtk_table_attach_defaults (GTK_TABLE (table), phtext, 1, 2, 1, 2); 01449 gtk_widget_show (phtext); 01450 01451 label = gtk_label_new (" "); 01452 markup = g_markup_printf_escaped ("<span foreground=\"#333333\" font='8'><b>Note : The new phasor channels will be added to\n\t existing configuration frame.</b></span>"); 01453 gtk_label_set_markup (GTK_LABEL (label), markup); 01454 gtk_table_attach_defaults (GTK_TABLE (table), label, 0, 2, 2, 3); 01455 gtk_widget_show (label); 01456 g_free (markup); 01457 01458 /* Add a "Next" button to the bottom of the dialog */ 01459 next_butn = gtk_button_new_with_label ("Next"); 01460 01461 /* Signal handling for buttons on Window */ 01462 g_signal_connect (next_butn, "clicked", G_CALLBACK (validation_ph_an_num), (gpointer) "1"); 01463 g_signal_connect_swapped (CCWin, "response", G_CALLBACK (gtk_widget_destroy), CCWin); 01464 01465 /* This makes it so the button is the default */ 01466 gtk_widget_set_can_default (next_butn, TRUE); 01467 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (CCWin)->action_area), next_butn, TRUE, TRUE, 0); 01468 01469 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01470 gtk_widget_grab_default (next_butn); 01471 gtk_widget_show (next_butn); 01472 01473 /* Finally show the CCWin */ 01474 gtk_widget_show (CCWin); 01475 };
Here is the call graph for this function:
Here is the caller graph for this function:

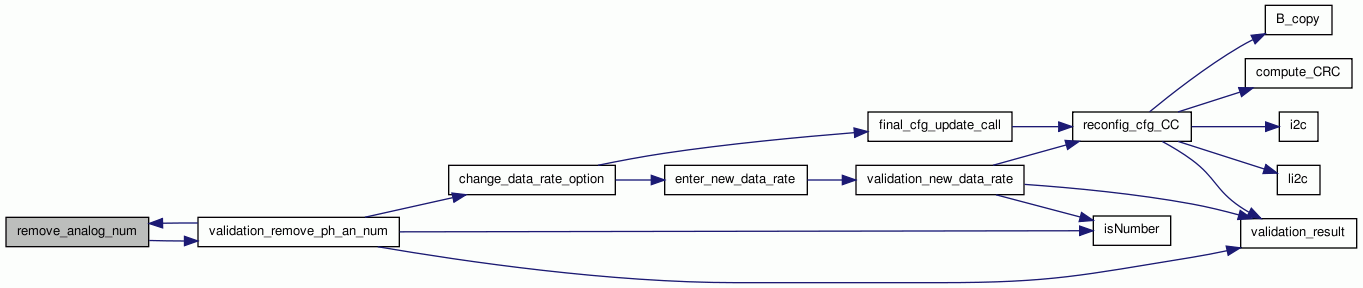

| void remove_analog_num | ( | ) |
Definition at line 1972 of file CfgGuiFunctions.c.
References CCWin, ConfigurationFrame::cfg_annmr_val, cfg_info, markup, phtext, and validation_remove_ph_an_num().
Referenced by validation_remove_ph_an_num().
01973 { 01974 /* local variables */ 01975 char line[50], buff[10]; 01976 GtkWidget *table; 01977 GtkWidget *next_butn, *label; 01978 01979 /* Close/destroy the CCWin */ 01980 gtk_widget_destroy(CCWin); 01981 01982 /* Create a new dialog window for the Remove Analog Window */ 01983 CCWin = gtk_dialog_new (); 01984 gtk_window_set_title (GTK_WINDOW (CCWin), "Remove Analog Window"); 01985 gtk_container_set_border_width (GTK_CONTAINER (CCWin), 10); 01986 gtk_widget_set_size_request (CCWin, 350, 300); 01987 01988 /* Create a table of 5 by 3 squares */ 01989 table = gtk_table_new (5, 3, FALSE); 01990 01991 /* Set the spacing to 5 on x and 40 on y */ 01992 gtk_table_set_row_spacings (GTK_TABLE (table), 5); 01993 gtk_table_set_col_spacings (GTK_TABLE (table), 40); 01994 01995 /* Pack the table into the window */ 01996 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(CCWin)->vbox), table, TRUE, TRUE, 0); 01997 gtk_widget_show (table); 01998 01999 /* This simply creates a grid of Lables with text on the table */ 02000 label = gtk_label_new (" "); 02001 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b>Enter Number of Analog</b></span>"); 02002 gtk_label_set_markup (GTK_LABEL (label), markup); 02003 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 0, 1); 02004 gtk_widget_show (label); 02005 g_free (markup); 02006 02007 /* Create text boxes for user to enter appropriate values */ 02008 phtext = gtk_entry_new (); 02009 gtk_table_attach_defaults (GTK_TABLE (table), phtext, 1, 2, 3, 4); 02010 gtk_widget_show (phtext); 02011 02012 memset(line, '\0', 50); 02013 memset(buff, '\0', 10); 02014 strcat(line, "Note : Maximum Removal upto "); 02015 sprintf(buff,"%d",cfg_info->cfg_annmr_val); 02016 strcat(line, buff); 02017 strcat(line, " "); 02018 label = gtk_label_new (line); 02019 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 4, 5); 02020 gtk_widget_show (label); 02021 02022 /* Add a "next" button to the bottom of the dialog */ 02023 next_butn = gtk_button_new_with_label ("Next"); 02024 02025 /* Signal handling for buttons on Window */ 02026 g_signal_connect (next_butn, "clicked", G_CALLBACK (validation_remove_ph_an_num), (gpointer) "2"); 02027 g_signal_connect_swapped (CCWin, "response", G_CALLBACK (gtk_widget_destroy), CCWin); 02028 02029 /* This makes it so the button is the default */ 02030 gtk_widget_set_can_default (next_butn, TRUE); 02031 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (CCWin)->action_area), next_butn, TRUE, TRUE, 0); 02032 02033 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 02034 gtk_widget_grab_default (next_butn); 02035 gtk_widget_show (next_butn); 02036 02037 /* Finally show the CCWin */ 02038 gtk_widget_show (CCWin); 02039 };
Here is the call graph for this function:
Here is the caller graph for this function:
| void remove_phasor_num | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |
Definition at line 1894 of file CfgGuiFunctions.c.
References ConfigurationChange::add_remove_choice, CCWin, cfg_info, ConfigurationFrame::cfg_phnmr_val, markup, new_cfg_info, phtext, and validation_remove_ph_an_num().
Referenced by Change_pmu_configuration().
01895 { 01896 /* local variables */ 01897 char line[50], buff[10]; 01898 GtkWidget *table; 01899 GtkWidget *next_butn, *label; 01900 01901 /* Allocate the memory for the ConfigurationChange object */ 01902 new_cfg_info = malloc(sizeof(struct ConfigurationChange)); 01903 new_cfg_info->add_remove_choice = 2; 01904 01905 /* Create a new dialog window for the Remove Phasor */ 01906 gtk_widget_destroy(CCWin); 01907 CCWin = gtk_dialog_new (); 01908 gtk_window_set_title (GTK_WINDOW (CCWin), "Remove Phasor"); 01909 gtk_container_set_border_width (GTK_CONTAINER (CCWin), 10); 01910 gtk_widget_set_size_request (CCWin, 350, 300); 01911 01912 /* Create a table of 5 by 3 squares */ 01913 table = gtk_table_new (5, 3, FALSE); 01914 01915 /* Set the spacing to 5 on x and 40 on y */ 01916 gtk_table_set_row_spacings (GTK_TABLE (table), 5); 01917 gtk_table_set_col_spacings (GTK_TABLE (table), 40); 01918 01919 /* Pack the table into the window */ 01920 gtk_box_pack_start (GTK_BOX (GTK_DIALOG(CCWin)->vbox), table, TRUE, TRUE, 0); 01921 gtk_widget_show (table); 01922 01923 /* This simply creates a grid of Lables with text on the table */ 01924 label = gtk_label_new (" "); 01925 markup = g_markup_printf_escaped ("<span foreground=\"#990033\" font='12'><b>Enter Number of Phasors</b></span>"); 01926 gtk_label_set_markup (GTK_LABEL (label), markup); 01927 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 0, 1); 01928 gtk_widget_show (label); 01929 g_free (markup); 01930 01931 /* Create text boxes for user to enter appropriate values */ 01932 phtext = gtk_entry_new (); 01933 gtk_table_attach_defaults (GTK_TABLE (table), phtext, 1, 2, 3, 4); 01934 gtk_widget_show (phtext); 01935 01936 memset(line, '\0', 50); 01937 memset(buff, '\0', 10); 01938 strcat(line, "Note : Maximum Removal upto "); 01939 sprintf(buff,"%d",cfg_info->cfg_phnmr_val); 01940 strcat(line, buff); 01941 strcat(line, " "); 01942 label = gtk_label_new (line); 01943 gtk_table_attach_defaults (GTK_TABLE (table), label, 1, 2, 4, 5); 01944 gtk_widget_show (label); 01945 01946 /* Add a "next" button to the bottom of the dialog */ 01947 next_butn = gtk_button_new_with_label ("Next"); 01948 01949 /* Signal handling for buttons on Window */ 01950 g_signal_connect (next_butn, "clicked", G_CALLBACK (validation_remove_ph_an_num), (gpointer) "1"); 01951 g_signal_connect_swapped (CCWin, "response", G_CALLBACK (gtk_widget_destroy), CCWin); 01952 01953 /* This makes it so the button is the default */ 01954 gtk_widget_set_can_default (next_butn, TRUE); 01955 gtk_box_pack_start (GTK_BOX (GTK_DIALOG (CCWin)->action_area), next_butn, TRUE, TRUE, 0); 01956 01957 /* This grabs this button to be the default button. Simply hitting the "Enter" key will cause this button to activate. */ 01958 gtk_widget_grab_default (next_butn); 01959 gtk_widget_show (next_butn); 01960 01961 /* Finally show the CCWin */ 01962 gtk_widget_show (CCWin); 01963 };
Here is the call graph for this function:
Here is the caller graph for this function:
| int validation_analog_names | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |

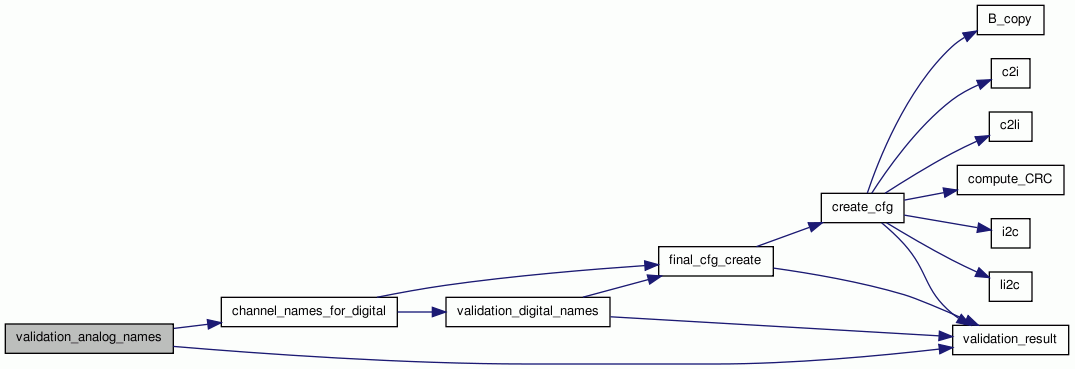

Definition at line 266 of file CfgGuiFunctions.c.
References AnalogChWin, ConfigurationFrame::cfg_analog_channels, ConfigurationFrame::cfg_annmr_val, cfg_info, channel_names_for_digital(), i, j, num_text, and validation_result().
Referenced by channel_names_for_analog().
00267 { 00268 /* local variables */ 00269 int ia, i, j, ia1 = 0, vtr; 00270 char stn[16], c = ' '; 00271 char *display_msg; 00272 const char *aa[20]; 00273 00274 /* First get how many Analog channel we have? */ 00275 vtr = cfg_info->cfg_annmr_val+1; 00276 memset(stn, '\0', 16); 00277 00278 /* Allocate the memory for Analog channel names */ 00279 cfg_info->cfg_analog_channels = (char *)malloc((vtr*16) * sizeof(char)); 00280 memset(cfg_info->cfg_analog_channels, '\0', sizeof(cfg_info->cfg_analog_channels)); 00281 00282 for (ia=1; ia<vtr; ia++) 00283 { 00284 /* Get the text entry value filled by user */ 00285 aa[ia] = gtk_entry_get_text(GTK_ENTRY(num_text[ia])); 00286 00287 if(strlen(aa[ia]) == 0) 00288 { 00289 free (cfg_info->cfg_analog_channels); 00290 display_msg = "\t\tPlease enter Analog channel name\t\t\n"; 00291 validation_result (display_msg); /* Show the unsuccess message to user */ 00292 return 1; 00293 } 00294 else 00295 { 00296 memset(stn, '\0', 16); 00297 strcpy(stn, aa[ia]); 00298 j = strlen(stn); 00299 if(j < 17) 00300 { 00301 for(i = j; i < 16 ; i++) 00302 { 00303 stn[i] = c; 00304 } 00305 } 00306 } 00307 00308 for (i=0; i< 16 && i< vtr*16; i++, ia1++) 00309 { 00310 /* Copy all phasor name in an array */ 00311 cfg_info->cfg_analog_channels[ia1] = stn[i]; 00312 } 00313 } 00314 00315 /* Close/destroy the AnalogChWin */ 00316 gtk_widget_destroy(AnalogChWin); 00317 00318 /* Next call for Enter Digital channels */ 00319 channel_names_for_digital (); 00320 00321 return 0; 00322 };
Here is the call graph for this function:
Here is the caller graph for this function:

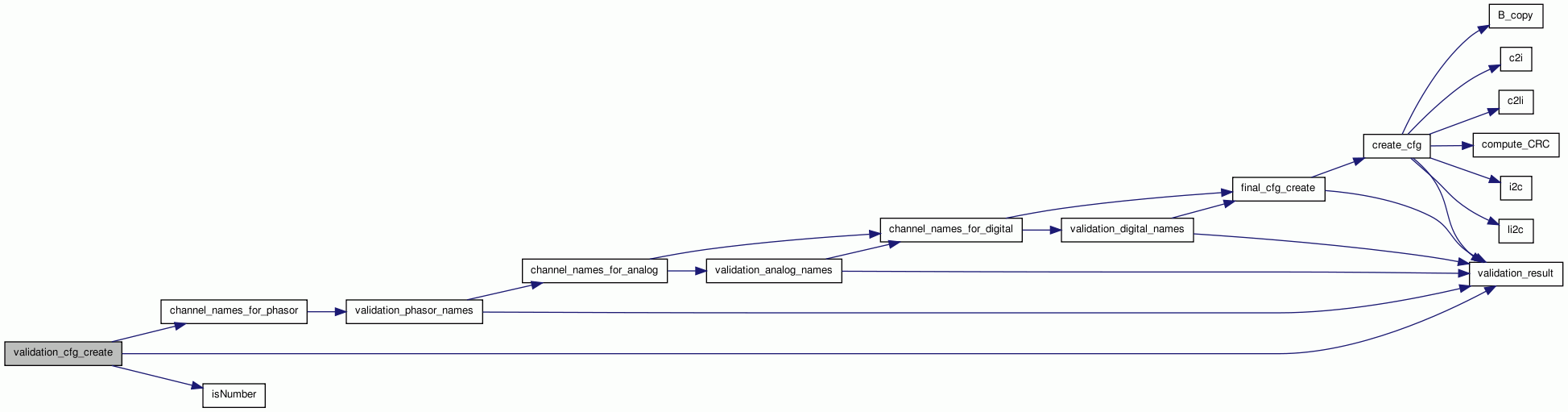

| int validation_cfg_create | ( | ) |
Definition at line 85 of file CfgGuiFunctions.c.
References ConfigurationFrame::cfg_af, ConfigurationFrame::cfg_annmr_val, ConfigurationFrame::cfg_dataRate, ConfigurationFrame::cfg_dgnmr_val, ConfigurationFrame::cfg_fdf, cfg_info, _pmuStruct::cfg_modification_button, ConfigurationFrame::cfg_pf, ConfigurationFrame::cfg_phnmr_val, ConfigurationFrame::cfg_pmuID, ConfigurationFrame::cfg_pn, cfg_setup_window, ConfigurationFrame::cfg_STNname, channel_names_for_phasor(), _pmuStruct::header_frm_button, i, isNumber(), j, p_af, p_anNumber, p_dgNumber, p_drate, p_ff, p_id, p_pf, p_phNumber, p_pn, p_stn, pmu_data, _pmuStruct::pmu_details_button, and validation_result().
Referenced by cfg_create_function().
00086 { 00087 /* local variables */ 00088 int i, j; 00089 const char *text, *text1, *text2, *text3, *text4; 00090 const char *text5, *text6, *text7, *text8, *text9; 00091 char *display_msg, stn[16], c = ' '; 00092 00093 /* Get the text entries and combo box values filled by user */ 00094 text = gtk_entry_get_text(GTK_ENTRY(p_id)); 00095 text1 = gtk_entry_get_text(GTK_ENTRY(p_stn)); 00096 text2 = gtk_combo_box_get_active_text(GTK_COMBO_BOX(p_ff)); 00097 text3 = gtk_combo_box_get_active_text(GTK_COMBO_BOX(p_af)); 00098 text4 = gtk_combo_box_get_active_text(GTK_COMBO_BOX(p_pf)); 00099 text5 = gtk_combo_box_get_active_text(GTK_COMBO_BOX(p_pn)); 00100 text6 = gtk_entry_get_text(GTK_ENTRY(p_phNumber)); 00101 text7 = gtk_entry_get_text(GTK_ENTRY(p_anNumber)); 00102 text8 = gtk_entry_get_text(GTK_ENTRY(p_dgNumber)); 00103 text9 = gtk_combo_box_get_active_text(GTK_COMBO_BOX(p_drate)); 00104 00105 if(!isNumber((char *)text)) /* Check text_box entry for valid integer or not? */ 00106 { 00107 display_msg = "\tPlease enter valid value for PMU ID code\t\n"; 00108 validation_result (display_msg); /* Show the unsuccess message to user */ 00109 return 0; 00110 } 00111 else if(strlen(text1) == 0) /* Check text_box entry should not be NULL */ 00112 { 00113 display_msg = "\tPlease enter PMU Station name\t\n"; 00114 validation_result (display_msg); /* Show the unsuccess message to user */ 00115 return 0; 00116 } 00117 else if(!isNumber((char *)text6) && atoi(text6) > 0) /* Check text_box entry for valid integer or not? as well as greater than one */ 00118 { 00119 display_msg = "\tPlease enter valid value for Phasor Number\t\n"; 00120 validation_result (display_msg); /* Show the unsuccess message to user */ 00121 return 0; 00122 } 00123 else if(!isNumber((char *)text7)) /* Check text_box entry for valid integer or not? */ 00124 { 00125 display_msg = "\tPlease enter valid value for Analog Number\t\n"; 00126 validation_result (display_msg); /* Show the unsuccess message to user */ 00127 return 0; 00128 } 00129 else if(!isNumber((char *)text8)) /* Check text_box entry for valid integer or not? */ 00130 { 00131 display_msg = "\tPlease enter valid value for Digital Number\t\n"; 00132 validation_result (display_msg); /* Show the unsuccess message to user */ 00133 return 0; 00134 } 00135 else /* Only if all the text_box entries were right */ 00136 { 00137 /* Allocate the memory for the ConfigurationFrame object */ 00138 cfg_info = malloc(sizeof(struct ConfigurationFrame)); 00139 cfg_info->cfg_STNname = malloc(16); 00140 memset(cfg_info->cfg_STNname,'\0',16); 00141 00142 memset(stn, '\0', 16); 00143 strcpy(stn, text1); 00144 j = strlen(stn); 00145 for(i = j; i < 16 ; i++) 00146 { 00147 stn[i] = c; 00148 } 00149 00150 cfg_info->cfg_pmuID = atoi(text); 00151 strcpy(cfg_info->cfg_STNname, stn); 00152 cfg_info->cfg_phnmr_val = atoi(text6); 00153 cfg_info->cfg_annmr_val = atoi(text7); 00154 cfg_info->cfg_dgnmr_val = atoi(text8); 00155 cfg_info->cfg_dataRate = atoi(text9); 00156 00157 if(!strcmp(text2, "Fix Point")) 00158 cfg_info->cfg_fdf = 0; 00159 else 00160 cfg_info->cfg_fdf = 1; 00161 00162 if(!strcmp(text3, "Fix Point")) 00163 cfg_info->cfg_af = 0; 00164 else 00165 cfg_info->cfg_af = 1; 00166 00167 if(!strcmp(text4, "Fix Point")) 00168 cfg_info->cfg_pf = 0; 00169 else 00170 cfg_info->cfg_pf = 1; 00171 00172 if(!strcmp(text5, "Ractangular")) 00173 cfg_info->cfg_pn = 0; 00174 else 00175 cfg_info->cfg_pn = 1; 00176 00177 /* Close/destroy the cfg_setup_window */ 00178 gtk_widget_destroy(cfg_setup_window); 00179 00180 /* Enable all (mentioned) buttons on main PMU Simulator main window */ 00181 gtk_widget_set_sensitive(GTK_WIDGET(pmu_data->header_frm_button), TRUE); 00182 gtk_widget_set_sensitive(GTK_WIDGET(pmu_data->pmu_details_button), TRUE); 00183 gtk_widget_set_sensitive(GTK_WIDGET(pmu_data->cfg_modification_button), TRUE); 00184 00185 /* Next call for Enter Phasor channels */ 00186 channel_names_for_phasor (); 00187 00188 return 1; 00189 } 00190 };
Here is the call graph for this function:
Here is the caller graph for this function:

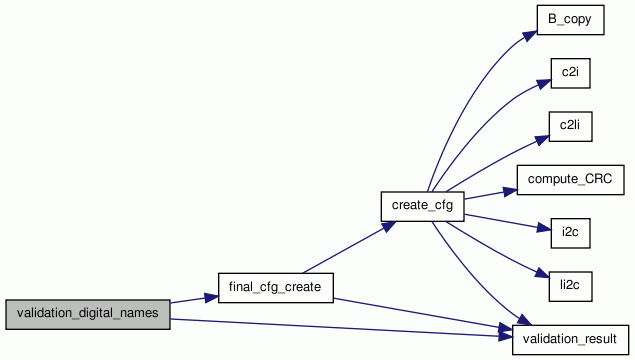

| int validation_digital_names | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |
Definition at line 332 of file CfgGuiFunctions.c.
References AnalogChWin, ConfigurationFrame::cfg_dgnmr_val, ConfigurationFrame::cfg_digital_channels, cfg_info, final_cfg_create(), i, j, num_text, and validation_result().
Referenced by channel_names_for_digital().
00333 { 00334 /* local variables */ 00335 int ia, i, j, ia1 = 0, vtr; 00336 char stn[16], c = ' '; 00337 char *display_msg; 00338 const char *aa[20]; 00339 00340 /* First get how many Digital channel we have? */ 00341 vtr = cfg_info->cfg_dgnmr_val*16+1; 00342 memset(stn, '\0', 16); 00343 00344 /* Allocate the memory for Digital channel names */ 00345 cfg_info->cfg_digital_channels = (char *)malloc((vtr*16) * sizeof(char)); 00346 memset(cfg_info->cfg_digital_channels, '\0', sizeof(cfg_info->cfg_digital_channels)); 00347 00348 for (ia=1; ia<vtr; ia++) 00349 { 00350 /* Get the text entry value filled by user */ 00351 aa[ia] = gtk_entry_get_text(GTK_ENTRY(num_text[ia])); 00352 00353 if(strlen(aa[ia]) == 0) 00354 { 00355 free (cfg_info->cfg_digital_channels); 00356 display_msg = "\t\tPlease enter Digital channel names\t\t\n"; 00357 validation_result (display_msg); /* Show the unsuccess message to user */ 00358 return 1; 00359 } 00360 else 00361 { 00362 memset(stn, '\0', 16); 00363 strcpy(stn, aa[ia]); 00364 j = strlen(stn); 00365 if(j < 17) 00366 { 00367 for(i = j; i < 16 ; i++) 00368 { 00369 stn[i] = c; 00370 } 00371 } 00372 } 00373 00374 for (i=0; i< 16 && i< vtr*16; i++, ia1++) 00375 { 00376 /* Copy all digital name in an array */ 00377 cfg_info->cfg_digital_channels[ia1] = stn[i]; 00378 } 00379 } 00380 00381 /* Close/destroy the AnalogChWin */ 00382 gtk_widget_destroy(AnalogChWin); 00383 00384 /* Next call for finaly create Configuration Frame */ 00385 final_cfg_create (); 00386 00387 return 0; 00388 };
Here is the call graph for this function:
Here is the caller graph for this function:

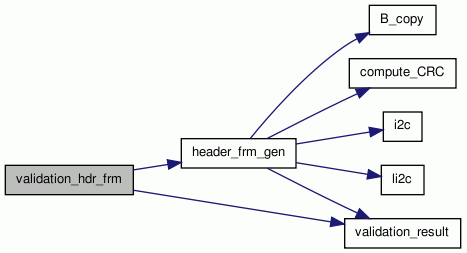

| void validation_hdr_frm | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |
Definition at line 676 of file CfgGuiFunctions.c.
References CCWin, hdr_frame, HdrFrm, header_frm_gen(), i, j, and validation_result().
Referenced by hdr_create_function().
00677 { 00678 /* local variables */ 00679 int i, j; 00680 const char *text; 00681 00682 /* Get the text entry value filled by user */ 00683 text = gtk_entry_get_text(GTK_ENTRY(HdrFrm)); 00684 i = strlen(text); 00685 00686 if(i > 0) 00687 { 00688 hdr_frame = (char *)malloc(i * sizeof(char)); 00689 memset(hdr_frame, '\0', sizeof(hdr_frame)); 00690 00691 for (j=0; j<i ; j++) 00692 { 00693 hdr_frame[j] = text[j]; 00694 } 00695 00696 /* Close/destroy the CCWin */ 00697 gtk_widget_destroy(CCWin); 00698 00699 /* Finally call below function to generate header frame */ 00700 header_frm_gen(i); 00701 } 00702 else 00703 { 00704 validation_result ("Pleas enter the Header Frame details...!!!"); /* Show the unsuccess message to user */ 00705 } 00706 };
Here is the call graph for this function:
Here is the caller graph for this function:
| int validation_new_analog_names | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |

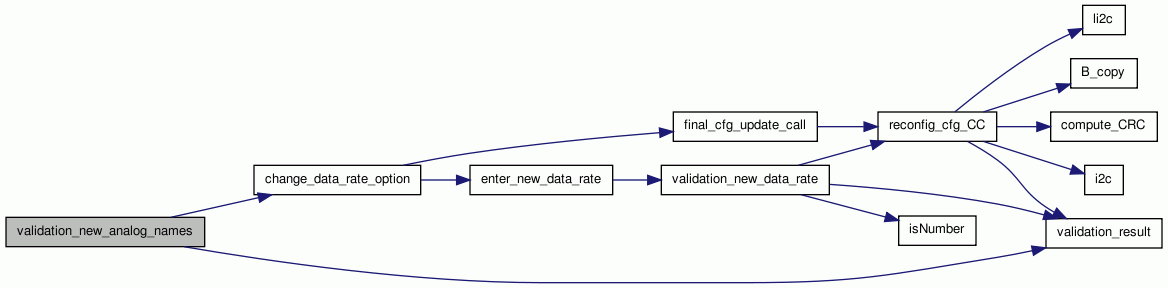

Definition at line 515 of file CfgGuiFunctions.c.
References change_data_rate_option(), i, j, ConfigurationChange::new_cfg_analog_channels, ConfigurationChange::new_cfg_annmr_val, new_cfg_info, num_text, PhasorChWin, and validation_result().
Referenced by new_channel_names_for_analog().
00516 { 00517 /* local variables */ 00518 int ia, i, j, ia1 = 0, vtr; 00519 char stn[16], c = ' '; 00520 char *display_msg; 00521 const char *aa[20]; 00522 00523 /* First get how many New Analog channel he wants to add? */ 00524 vtr = new_cfg_info->new_cfg_annmr_val+1; 00525 memset(stn, '\0', 16); 00526 00527 /* Allocate the memory for New Analog channel names */ 00528 new_cfg_info->new_cfg_analog_channels = (char *)malloc((vtr*16) * sizeof(char)); 00529 memset(new_cfg_info->new_cfg_analog_channels, '\0', sizeof(new_cfg_info->new_cfg_analog_channels)); 00530 00531 for (ia=1; ia<vtr; ia++) 00532 { 00533 /* Get the text entry value filled by user */ 00534 aa[ia] = gtk_entry_get_text(GTK_ENTRY(num_text[ia])); 00535 00536 if(strlen(aa[ia]) == 0) 00537 { 00538 free (new_cfg_info->new_cfg_analog_channels); 00539 display_msg = "\t\tPlease enter Analog channel name\t\t\n"; 00540 validation_result (display_msg); /* Show the unsuccess message to user */ 00541 return 1; 00542 } 00543 else 00544 { 00545 memset(stn, '\0', 16); 00546 strcpy(stn, aa[ia]); 00547 j = strlen(stn); 00548 if(j < 17) 00549 { 00550 for(i = j; i < 16 ; i++) 00551 { 00552 stn[i] = c; 00553 } 00554 } 00555 } 00556 00557 for (i=0; i< 16 && i< vtr*16; i++, ia1++) 00558 { 00559 /* Copy all Analog name in an array */ 00560 new_cfg_info->new_cfg_analog_channels[ia1] = stn[i]; 00561 } 00562 } 00563 00564 /* Close/destroy the PhasorChWin */ 00565 gtk_widget_destroy(PhasorChWin); 00566 00567 /* Next call for Data Rate change option? */ 00568 change_data_rate_option(); 00569 00570 return 0; 00571 };
Here is the call graph for this function:
Here is the caller graph for this function:

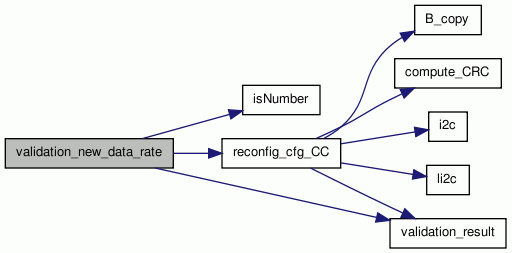

| int validation_new_data_rate | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |

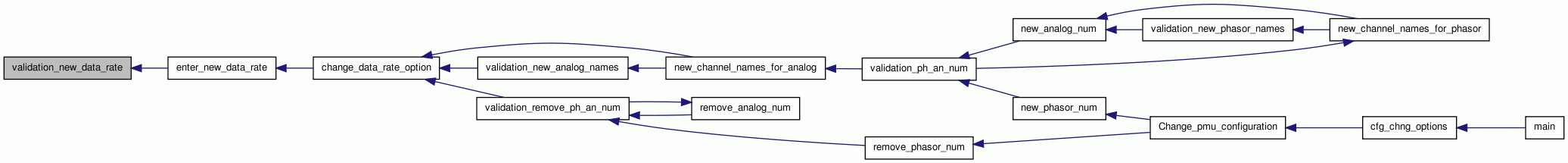

Definition at line 581 of file CfgGuiFunctions.c.
References CCWin, ConfigurationChange::data_rate_choice, isNumber(), new_cfg_info, ConfigurationChange::new_data_rate, p_drate, reconfig_cfg_CC(), and validation_result().
Referenced by enter_new_data_rate().
00582 { 00583 /* local variables */ 00584 char *display_msg; 00585 const char *text; 00586 00587 /* Get the combo box value selected by user */ 00588 text = gtk_combo_box_get_active_text(GTK_COMBO_BOX(p_drate)); 00589 00590 if(isNumber((char *)text)) /* Check text_box entry for valid integer or not? */ 00591 { 00592 new_cfg_info->data_rate_choice = 1; 00593 new_cfg_info->new_data_rate = atoi(text); 00594 00595 /* Close/destroy the CCWin */ 00596 gtk_widget_destroy(CCWin); 00597 00598 /* Final call to recreate configuration frame */ 00599 reconfig_cfg_CC(); 00600 00601 return 0; 00602 } 00603 else 00604 { 00605 display_msg = "\tPlease enter valid value for data rate.\t\n"; 00606 validation_result (display_msg); /* Show the unsuccess message to user */ 00607 return 1; 00608 } 00609 };
Here is the call graph for this function:
Here is the caller graph for this function:
| int validation_new_phasor_names | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |

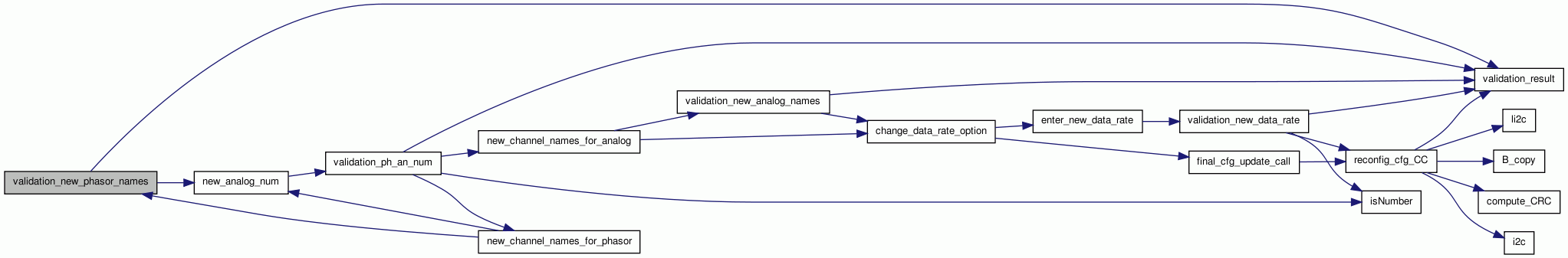

Definition at line 449 of file CfgGuiFunctions.c.
References i, j, new_analog_num(), new_cfg_info, ConfigurationChange::new_cfg_phasor_channels, ConfigurationChange::new_cfg_phnmr_val, num_text, PhasorChWin, and validation_result().
Referenced by new_channel_names_for_phasor().
00450 { 00451 /* local variables */ 00452 int ia, i, j, ia1 = 0, vtr; 00453 char stn[16], c = ' '; 00454 char *display_msg; 00455 const char *aa[20]; 00456 00457 /* First get how many New Phasor channel he wants to add? */ 00458 vtr = new_cfg_info->new_cfg_phnmr_val+1; 00459 memset(stn, '\0', 16); 00460 00461 /* Allocate the memory for New Phasor channel names */ 00462 new_cfg_info->new_cfg_phasor_channels = (char *)malloc((vtr*16) * sizeof(char)); 00463 memset(new_cfg_info->new_cfg_phasor_channels, '\0', sizeof(new_cfg_info->new_cfg_phasor_channels)); 00464 00465 for (ia=1; ia<vtr; ia++) 00466 { 00467 /* Get the text entry value filled by user */ 00468 aa[ia] = gtk_entry_get_text(GTK_ENTRY(num_text[ia])); 00469 00470 if(strlen(aa[ia]) == 0) 00471 { 00472 free (new_cfg_info->new_cfg_phasor_channels); 00473 display_msg = "\t\tPlease enter Phasor channel name\t\t\n"; 00474 validation_result (display_msg); /* Show the unsuccess message to user */ 00475 return 1; 00476 } 00477 else 00478 { 00479 memset(stn, '\0', 16); 00480 strcpy(stn, aa[ia]); 00481 j = strlen(stn); 00482 if(j < 17) 00483 { 00484 for(i = j; i < 16 ; i++) 00485 { 00486 stn[i] = c; 00487 } 00488 } 00489 } 00490 00491 for (i=0; ((i< 16) && (i< vtr*16)); i++, ia1++) 00492 { 00493 /* Copy all phasor name in an array */ 00494 new_cfg_info->new_cfg_phasor_channels[ia1] = stn[i]; 00495 } 00496 } 00497 00498 /* Close/destroy the PhasorChWin */ 00499 gtk_widget_destroy(PhasorChWin); 00500 00501 /* Next call for Enter New Phasor channels */ 00502 new_analog_num(); 00503 00504 return 0; 00505 };
Here is the call graph for this function:
Here is the caller graph for this function:
| int validation_ph_an_num | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |
Definition at line 399 of file CfgGuiFunctions.c.
References isNumber(), ConfigurationChange::new_cfg_annmr_val, new_cfg_info, ConfigurationChange::new_cfg_phnmr_val, new_channel_names_for_analog(), new_channel_names_for_phasor(), phtext, and validation_result().
Referenced by new_analog_num(), and new_phasor_num().
00400 { 00401 /* local variables */ 00402 const char *text; 00403 char *display_msg, find_butn[2]; 00404 00405 /* Get the text entry value filled by user */ 00406 text = gtk_entry_get_text(GTK_ENTRY(phtext)); 00407 00408 /* Use udata for idenifing signal button */ 00409 strcpy(find_butn,(char *) udata); 00410 00411 if(isNumber((char *)text)) /* Check text_box entry for valid integer or not? */ 00412 { 00413 if(!strcmp(find_butn, "1")) /* If user wants to add new phasor channels */ 00414 { 00415 new_cfg_info->new_cfg_phnmr_val = atoi(text); 00416 00417 /* Next call for Enter New Phasor channels */ 00418 new_channel_names_for_phasor (); 00419 00420 return 0; 00421 } 00422 else if(!strcmp(find_butn, "2")) /* If user wants to add new Analog channels */ 00423 { 00424 new_cfg_info->new_cfg_annmr_val = atoi(text); 00425 00426 /* Next call for Enter New Phasor channels */ 00427 new_channel_names_for_analog (); 00428 00429 return 0; 00430 } 00431 } 00432 else 00433 { 00434 display_msg = "\nPlease enter the valid value in the given field\n"; 00435 validation_result (display_msg); /* Show the unsuccess message to user */ 00436 return 1; 00437 } 00438 return 1; 00439 };
Here is the call graph for this function:
Here is the caller graph for this function:
| int validation_phasor_names | ( | GtkWidget * | widget, | |
| gpointer | udata | |||
| ) |
Definition at line 200 of file CfgGuiFunctions.c.
References cfg_info, ConfigurationFrame::cfg_phasor_channels, ConfigurationFrame::cfg_phnmr_val, channel_names_for_analog(), i, j, num_text, PhasorChWin, and validation_result().
Referenced by channel_names_for_phasor().
00201 { 00202 /* local variables */ 00203 int ia, i, j, ia1 = 0, vtr; 00204 char stn[16], c = ' '; 00205 char *display_msg; 00206 const char *aa[20]; 00207 00208 /* First get how many Phasor channel we have? */ 00209 vtr = cfg_info->cfg_phnmr_val+1; 00210 memset(stn, '\0', 16); 00211 00212 /* Allocate the memory for Phasor channel names */ 00213 cfg_info->cfg_phasor_channels = (char *)malloc((vtr*16) * sizeof(char)); 00214 memset(cfg_info->cfg_phasor_channels, '\0', sizeof(cfg_info->cfg_phasor_channels)); 00215 00216 for (ia=1; ia<vtr; ia++) 00217 { 00218 /* Get the text entry value filled by user */ 00219 aa[ia] = gtk_entry_get_text(GTK_ENTRY(num_text[ia])); 00220 00221 if(strlen(aa[ia]) == 0) 00222 { 00223 free (cfg_info->cfg_phasor_channels); 00224 display_msg = "\t\tPlease enter Phasor channel name\t\t\n"; 00225 validation_result (display_msg); /* Show the unsuccess message to user */ 00226 return 1; 00227 } 00228 else 00229 { 00230 memset(stn, '\0', 16); 00231 strcpy(stn, aa[ia]); 00232 j = strlen(stn); 00233 if(j < 17) 00234 { 00235 for(i = j; i < 16 ; i++) 00236 { 00237 stn[i] = c; 00238 } 00239 } 00240 } 00241 00242 for (i=0; i< 16 && i< vtr*16; i++, ia1++) 00243 { 00244 /* Copy all phasor name in an array */ 00245 cfg_info->cfg_phasor_channels[ia1] = stn[i]; 00246 } 00247 } 00248 00249 /* Close/destroy the PhasorChWin */ 00250 gtk_widget_destroy(PhasorChWin); 00251 00252 /* Next call for Enter Analog channels */ 00253 channel_names_for_analog (); 00254 00255 return 0; 00256 };
Here is the call graph for this function:
Here is the caller graph for this function:
| int validation_remove_ph_an_num | ( | GtkButton * | but, | |
| gpointer | udata | |||
| ) |
Definition at line 619 of file CfgGuiFunctions.c.
References CCWin, ConfigurationFrame::cfg_annmr_val, cfg_info, ConfigurationFrame::cfg_phnmr_val, change_data_rate_option(), isNumber(), ConfigurationChange::new_cfg_annmr_val, new_cfg_info, ConfigurationChange::new_cfg_phnmr_val, phtext, remove_analog_num(), and validation_result().
Referenced by remove_analog_num(), and remove_phasor_num().
00620 { 00621 /* local variables */ 00622 const char *text; 00623 char *display_msg, find_butn[2]; 00624 00625 /* Get the text entry value filled by user */ 00626 text = gtk_entry_get_text(GTK_ENTRY(phtext)); 00627 strcpy(find_butn,(char *) udata); 00628 00629 if(isNumber((char *)text)) /* Check text_box entry for valid integer or not? */ 00630 { 00631 if(!strcmp(find_butn, "1") && atoi(text) < cfg_info->cfg_phnmr_val ) /* Atleast one phasor should be present there in CFG Frame */ 00632 { 00633 /* If Phasor removal? */ 00634 new_cfg_info->new_cfg_phnmr_val = atoi(text); 00635 00636 /* Next call to remove */ 00637 remove_analog_num (); 00638 00639 return 0; 00640 } 00641 else if(!strcmp(find_butn, "2") && atoi(text) <= cfg_info->cfg_annmr_val ) 00642 { 00643 /* If Analog removal? */ 00644 new_cfg_info->new_cfg_annmr_val = atoi(text); 00645 00646 /* Close/destroy the CCWin */ 00647 gtk_widget_destroy(CCWin); 00648 00649 change_data_rate_option(); 00650 00651 return 0; 00652 } 00653 else 00654 { 00655 display_msg = "\t\tPlease enter value within max range!\t\t\n"; 00656 validation_result (display_msg); /* Show the unsuccess message to user */ 00657 return 1; 00658 } 00659 } 00660 else 00661 { 00662 display_msg = "\t\tPlease enter valid value in the field\t\t\n"; 00663 validation_result (display_msg); /* Show the unsuccess message to user */ 00664 return 1; 00665 } 00666 };
Here is the call graph for this function:
Here is the caller graph for this function:
